Hey there, fellow Jeep enthusiasts! In this article, I’ll explain everything you need to know about Jeep Wrangler wheel bolt patterns.
Are you confused about which wheels fit your Jeep? Are you struggling to make sense of all those numbers and measurements? Don’t worry – I’ve got you covered.
After 15 years of working on Jeeps, I have seen countless owners waste money on the wrong wheels. I won’t let that happen to you.
Whether you are:
- Upgrading to flashy new rims
- Replacing damaged wheels
- Looking for cheaper alternatives
- Planning a complete custom build
This guide will help you understand exactly what to look for when buying wheels for your Wrangler.
No more guesswork. No more returns. Just the right fit the first time.

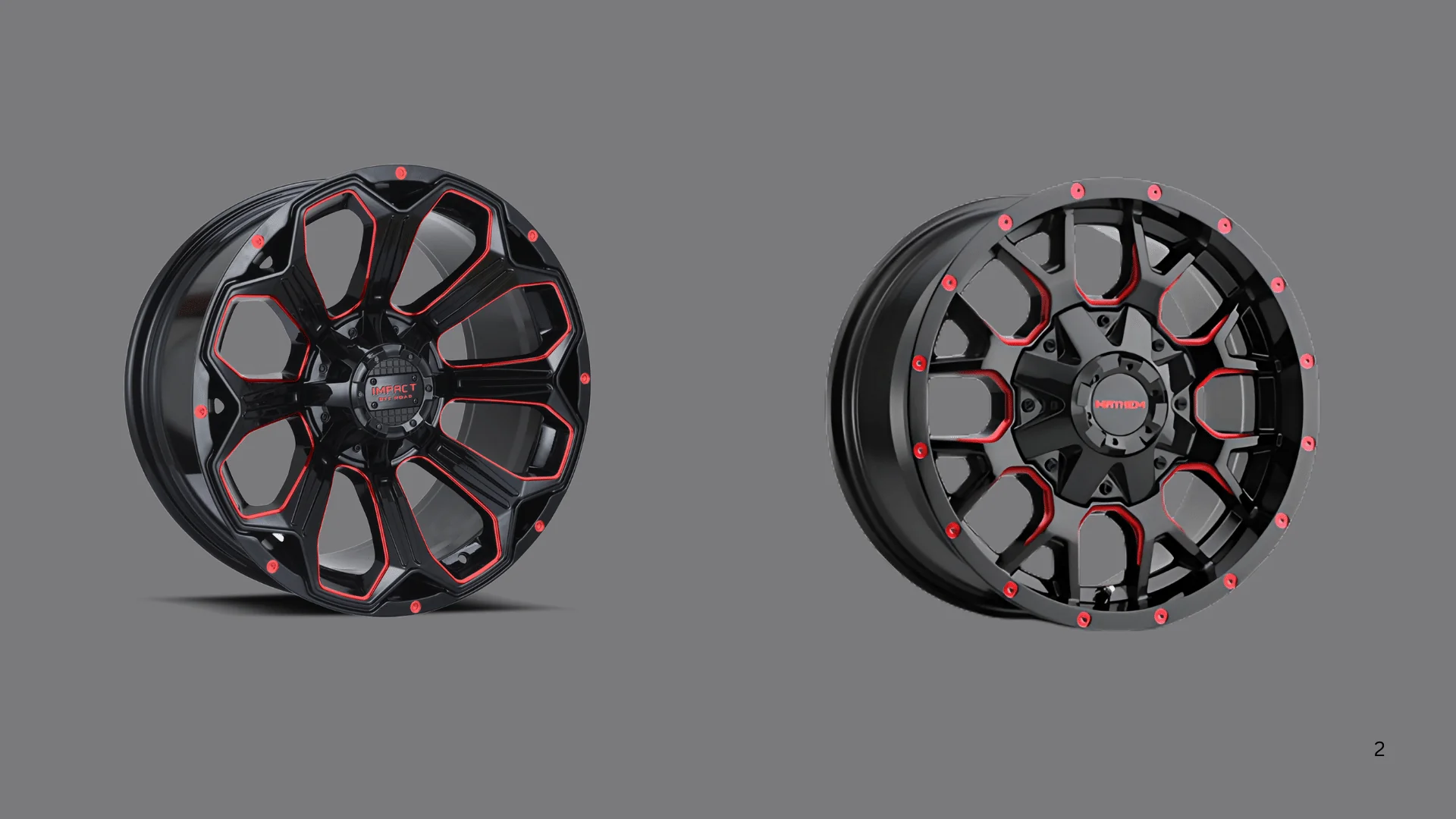

What is a Wheel Bolt Pattern?
A wheel bolt pattern is simply the arrangement of the bolts on your wheel.
Think of it like this: If you tried to put your left shoe on your right foot, it wouldn’t fit right. The same goes for wheels with the wrong bolt pattern on your Jeep.
The pattern has two main parts:
- The number of bolts (or lug nuts)
- The diameter of the circle they form
For Jeep Wranglers, this is typically shown as “5×4.5” or “5×5″—meaning 5 lugs in a circle with a 4.5 or 5-inch diameter.
Jeep Wrangler Wheel Bolt Patterns by Year
Not all Jeep Wranglers use the same bolt pattern. Here’s a detailed breakdown by generation and year:
| Generation | Years | Model | Bolt Pattern | Metric Equivalent | Center Bore | Lug Nut Size | Recommended Torque |
|---|---|---|---|---|---|---|---|
| YJ | 1987-1995 | Wrangler YJ | 5×4.5″ | 5×114.3mm | 71.5mm | 1/2″-20 | 85-105 ft-lbs |
| TJ | 1997-2006 | Wrangler TJ | 5×4.5″ | 5×114.3mm | 71.5mm | 1/2″-20 | 85-105 ft-lbs |
| LJ | 2004-2006 | Wrangler Unlimited | 5×4.5″ | 5×114.3mm | 71.5mm | 1/2″-20 | 85-105 ft-lbs |
| JK | 2007-2018 | Wrangler JK | 5×5″ | 5x127mm | 71.5mm | 1/2″-20 | 100-120 ft-lbs |
| JK | 2007-2018 | Wrangler Unlimited JK | 5×5″ | 5x127mm | 71.5mm | 1/2″-20 | 100-120 ft-lbs |
| JL | 2018-present | Wrangler JL | 5×5″ | 5x127mm | 71.5mm | 14mm x 1.5 | 130 ft-lbs |
| JL | 2018-present | Wrangler Unlimited JL | 5×5″ | 5x127mm | 71.5mm | 14mm x 1.5 | 130 ft-lbs |
| JT | 2020-present | Gladiator | 5×5″ | 5x127mm | 71.5mm | 14mm x 1.5 | 130 ft-lbs |
Did you notice the major change? In 2007, Jeep switched from the 5×4.5 to the 5×5 pattern with the introduction of the JK generation. This is why you can’t slap JK wheels onto a TJ without adapters!
The newer JL models also changed the lug nut size from 1/2″-20 to metric 14mm x 1.5 threads, so keep that in mind when purchasing lug nuts.
How to Measure Your Jeep’s Bolt Pattern
Not sure what you have?
Here’s how to check:
For a 5-lug wheel, measure from the center of one lug to the center of the lug two positions away (not the adjacent one).
You’ll need:
- A tape measure
- Something to mark with
- A helper (optional)
The measurement you get will be your bolt circle diameter.
Or look at your Jeep’s year from above! Sometimes, the simple way works best.
Why Does the Bolt Pattern Matter?
The bolt pattern matters for three main reasons:
- Safety: Wrong patterns can lead to wheels that don’t fit securely
- Compatibility: Determines which wheels will fit your Jeep
- Options: Affects your choices for upgrades and customization
I once bought wheels online without checking the pattern. What a waste of time and shipping costs! Don’t make my mistake.
How to Find the Perfect Wheel for Your Jeep Wrangler
Finding the right wheels isn’t just about bolt patterns.
You also need to consider:
- Wheel offset (how far in or out the wheel sits)
- Backspacing (distance from mounting surface to inner edge)
- Center bore (the hole in the middle of the wheel)
Always look for wheels specifically listed for your Jeep’s year and model when shopping. Or at least make sure they match your bolt pattern.
Aftermarket Options and Customization
Here’s where it gets fun! Once you know your bolt pattern, a world of options opens up. Let’s look at some compatible vehicles and popular aftermarket wheel choices for your Jeep:
Vehicles With Compatible Bolt Patterns
| Jeep Pattern | Compatible Vehicle Makes | Compatible Models |
|---|---|---|
| 5×4.5″ (Pre-2007) | Ford | Explorer, Ranger, Mustang, Focus ST |
| 5×4.5″ (Pre-2007) | Toyota | 4Runner, Tacoma, FJ Cruiser |
| 5×4.5″ (Pre-2007) | Jeep | Cherokee XJ, Liberty KJ |
| 5×4.5″ (Pre-2007) | Honda | Pilot, Ridgeline |
| 5×4.5″ (Pre-2007) | Nissan | Xterra, Frontier |
| 5×5″ (2007+) | Jeep | Grand Cherokee WJ/WK, Commander |
| 5×5″ (2007+) | Land Rover | Range Rover, LR3, LR4, Discovery |
| 5×5″ (2007+) | GMC | Sierra, Yukon |
| 5×5″ (2007+) | Chevrolet | Silverado, Tahoe, Suburban |
| 5×5″ (2007+) | Cadillac | Escalade |
Popular Aftermarket Wheel Brands & Options
| Wheel Brand | Popular Models for Wrangler | Sizes Available | Price Range | Notable Features |
|---|---|---|---|---|
| Method Race | MR305, Grid, NV | 15″-20″ | $180-$350 | Strong off-road design, lifetime structural warranty |
| Pro Comp | Series 7089, Xtreme | 15″-20″ | $120-$250 | Budget-friendly, good for basic upgrades |
| Fuel Off-Road | D556 Coupler, D558 Anza | 17″-24″ | $200-$450 | Bold styling, many finish options |
| KMC | XD Series Addict, Rockstar | 16″-22″ | $180-$350 | Aggressive designs, popular among modders |
| Black Rhino | York, Armory | 17″-20″ | $200-$380 | Safari-inspired, heavy-load ratings |
| Icon Vehicle Dynamics | Rebound, Compression | 17″-20″ | $250-$400 | Engineered for performance, beadlock options |
| AEV | Pintler, Salta | 17″-20″ | $280-$450 | Premium quality, designed specifically for Jeeps |
Wheel Adapter Considerations
You’ll need adapters if you want to use wheels with a different bolt pattern.
Here’s what to consider:
| Adapter Type | Thickness | Price Range | Pros | Cons |
|---|---|---|---|---|
| Hub-Centric | 1″-2″ | $150-$300 | Better alignment, reduced vibration | More expensive |
| Lug-Centric | 1″-2″ | $80-$200 | More affordable | May cause vibration at high speeds |
| Wheel Spacers | 0.5″-2″ | $50-$150 | Provides wider stance | Not for bolt pattern conversion |
Want to run wheels with a different pattern? Wheel adapters can help, but for safety, use quality ones from reputable brands like Spidertrax, Rugged Ridge, or Teraflex.
Conclusion
Knowing your Jeep’s bolt pattern saves you time, money, and frustration. It’s also the key to unlocking countless wheel options for your Wrangler.
Remember the magic numbers: 5×4.5 for older models (pre-2007) and 5×5 for newer ones (2007+).
When shopping, remember to consider offset, backspacing, and center bore. These details matter just as much as the bolt pattern itself.
I’ve seen too many Jeep owners make costly mistakes with wheels. Now you won’t be one of them.
With this knowledge, you can confidently upgrade your Wrangler’s wheels and create the perfect look for your off-road machine.
Happy trails and happy wheeling!
Frequently Asked Questions
What’s the Difference Between a Bolt Pattern and a Bolt Circle?
They’re the same thing. Both terms refer to the number of bolts and the circle diameter they form on your wheel.
Can I Use Wheels with A Smaller Bolt Circle on My Jeep?
No, you can’t safely downsize. The bolts won’t align properly. You can only use wheels with the same pattern or use adapters.
How Important Is Wheel Offset for Jeeps?
This is very important! The wrong offset can cause rubbing, poor handling, and excessive wear on suspension components. Always verify before buying.
Will Larger Wheels Improve My Off-Road Performance?
Not necessarily. While they look great, larger wheels with low-profile tires can reduce traction and increase your risk of trail damage.
How Do I Know if My Wheels Are Hub-Centric or Lug-Centric?
Hub-centric wheels have a center bore that matches your hub exactly. Lug-centric relies on the lug nuts for centering and may require centering rings.
