    A Detailed Exploration on F150 Bolt Pattern

    David AllisterBy David AllisterDecember 25, 20247 Mins Read
    Facebook Twitter Pinterest LinkedIn WhatsApp Reddit Tumblr Email

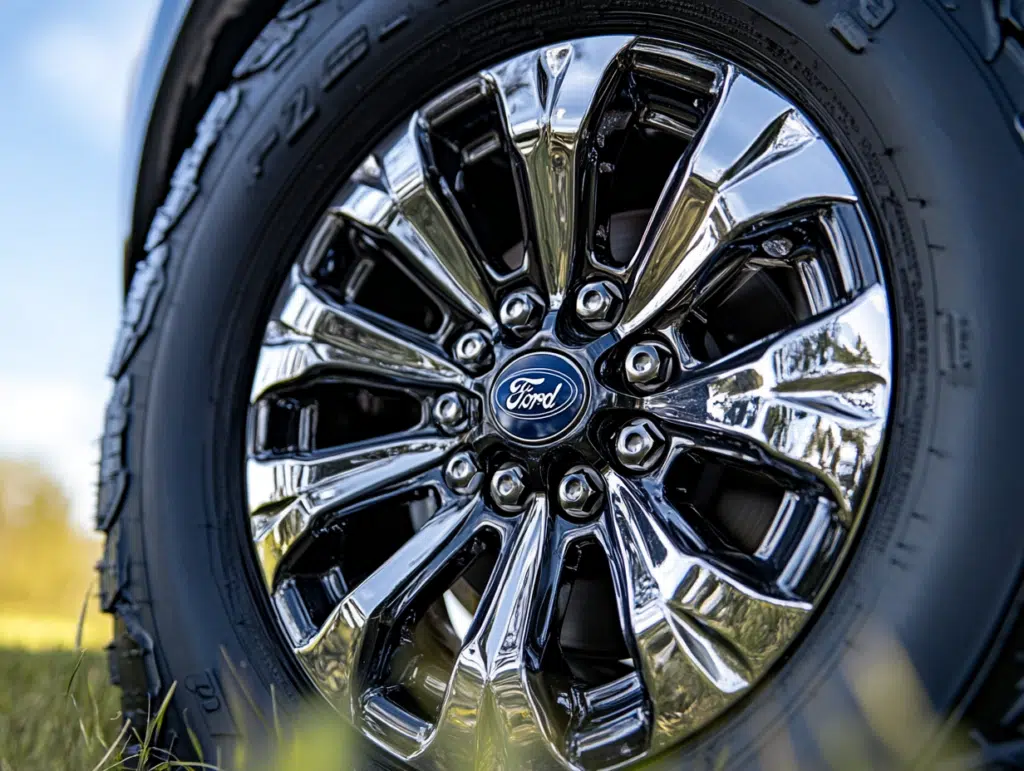

    f150 bolt pattern
    Share
    Facebook Twitter LinkedIn Pinterest Email

    Looking to put new wheels on your F-150? Getting the bolt pattern right is the key, but finding the exact specs can be tricky.

    Many F-150 owners get stuck with wheels that don’t fit because they didn’t check the bolt pattern first.

    Now, you won’t have to worry about compatibility issues anymore. I’ll help you find the perfect wheels for your truck by showing you everything about F-150 bolt patterns, from measurements to year-specific changes.

    In this guide, I’ll walk you through the F-150’s bolt pattern specs, show you how to measure them correctly, and share tips for choosing the right wheels.

    Plus, I’ll break down the patterns by model year so you can confidently shop.

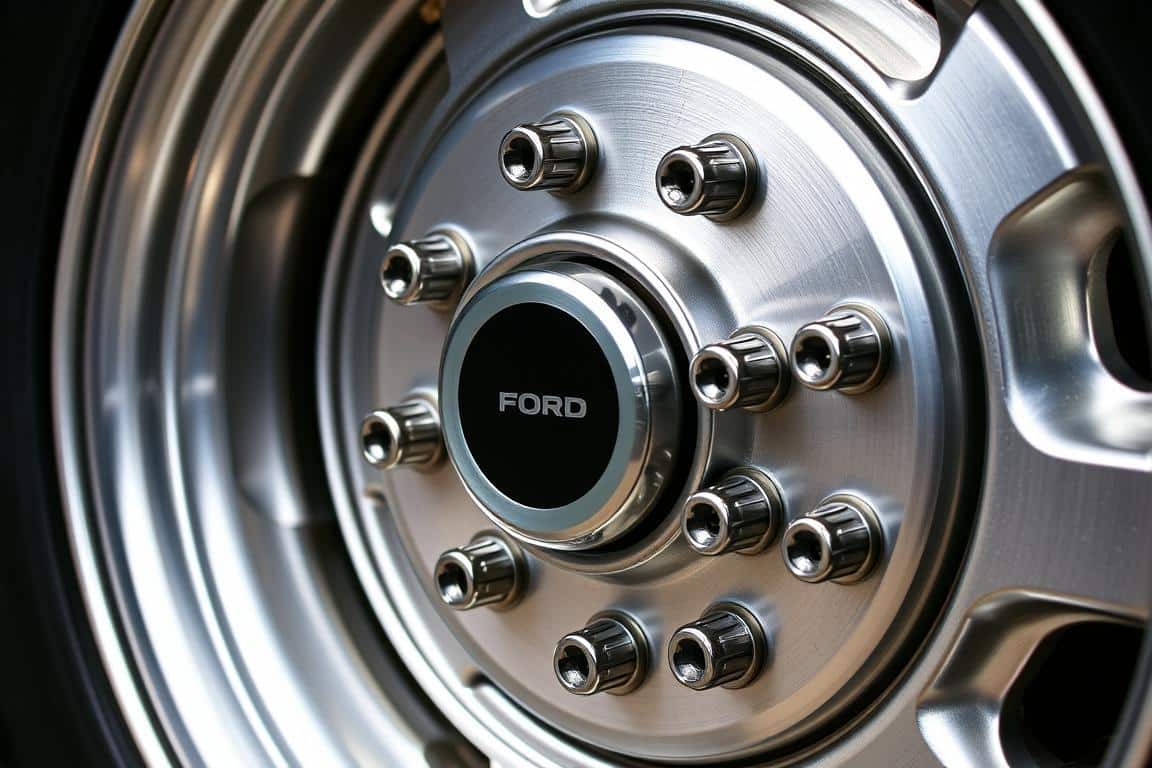

    What is the Bolt Pattern for F150

    What_is_the_Bolt_Pattern_for_F150

    The bolt pattern on your F-150 is the specific arrangement of lug holes on your wheel that helps attach it to your truck.

    • For all F-150s from 2004 onwards, it uses a 6x135mm pattern – this means your wheel has 6 lug nuts arranged in a circle with a diameter of 135mm.

    I know this might sound technical, but think of it like this:

    • The “6” tells you how many lug nuts you need to attach the wheel, while “135” shows how wide the imaginary circle is that these lugs form.
    • It’s like drawing dots on a circle – they need to line up perfectly with the wheel studs on your truck.

    This measurement is crucial because it’s your starting point for finding compatible wheels. Even if you find wheels that look perfect for your truck, they won’t fit if the bolt pattern doesn’t match.

    Getting this right is your first step to a successful wheel upgrade.

    Do you want a pro tip?

    Always double-check your truck’s specific year and model. While most modern F-150s share the same pattern, older models (pre-2004) used different configurations.

    Understanding Ford Bolt Patterns and Their Compatibility

    Understanding_Ford_Bolt_Patterns_and_Their_Compatibility

    Let’s make sense of how Ford bolt patterns affect your wheel choices.

    See also  A Guide to Diagnosing Warped Rotor Issues

    The neat thing about F-150s made after 2004 is that they all speak the same language – that 6x135mm pattern we talked about. This means you’ve got plenty of wheel options to pick from.

    But here’s something most sellers won’t tell you: bolt patterns are just the start. When picking new wheels, you’ll also need to check the following;

    • Center Bore Size: Your F-150 needs an 87.1mm center bore. This is the hole in the middle of the wheel that helps center it perfectly on your hub.
    • Thread Size: F-150s use M14 x 1.5 lug nuts. This is like making sure you’ve got the right size screws – using the wrong size could damage your wheels.
    • Offset Range: Your F-150 can handle offsets between -44mm and +44mm, but not all offsets work for all driving styles. Less offset pushes your wheels out wider while more tucks them in.

    Here’s an Example: You might find a great deal on wheels from a 2021 F-150. Good news – these will fit your 2015 F-150 perfectly because they share the same bolt pattern and specs.

    But try to use wheels from a 2003 F-150, and you’ll run into problems because they used a different pattern entirely.

    List of The Correct Bolt Pattern for Different Ford Models

    Let me break down the bolt patterns for Ford’s most popular models – this will help if you’re swapping wheels between vehicles:

    • F-150 (2004-present): 6x135mm
    • F-250/F-350 (1999-present): 8x170mm
    • Ranger (2019-present): 6×139.7mm
    • Explorer (2011-present): 5×114.3mm
    • Bronco (2021-present): 6×139.7mm

    Notice how the bigger trucks use more lug nuts?

    That’s because they need extra strength to handle heavier loads. The F-250 and F-350’s eight-lug pattern isn’t just for looks – it’s built for serious work.

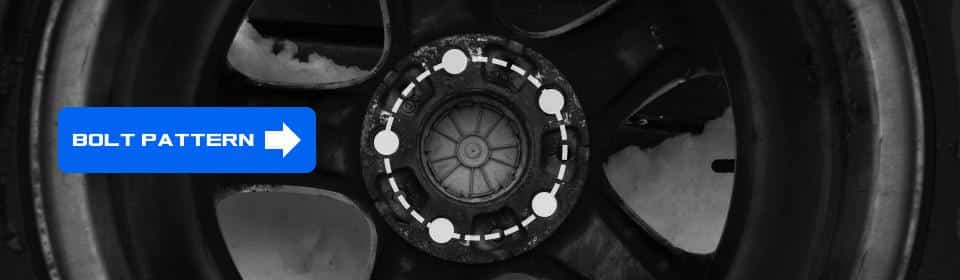

    How to Identify the Correct Bolt Pattern for a Specific Ford Model

    How_to_Identify_the_Correct_Bolt_Pattern_for_a_Specific_Ford_Model

    Finding your Ford’s bolt pattern isn’t as tricky as it might seem. Here are three simple ways to check:

    See also  Exploring The World Of Honda All-Wheel Drive Vehicles

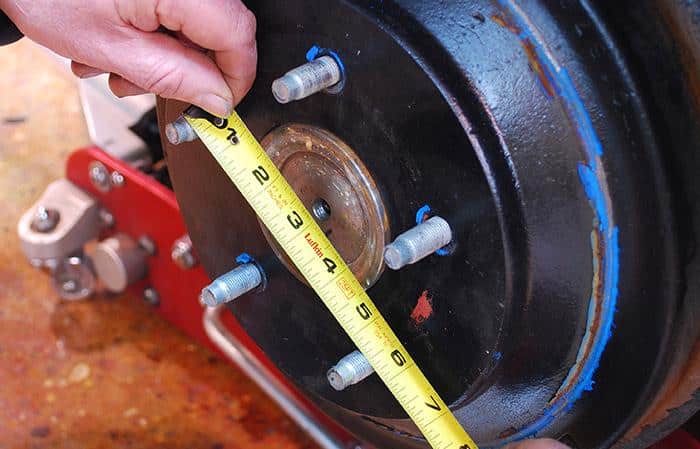

    The Direct Measurement Method

    • For odd-numbered patterns (5 lugs): Measure from the center of one lug to the outer edge of the lug across from it
    • For even-numbered patterns (6 lugs): Measure from center to center of opposite lugs

    Check Your Door Jamb Sticker

    • Look for the “wheel size” or “trim” information – it often lists the bolt pattern along with the tire size.

    Use Your VIN Number

    • Find it on your dashboard near the windshield
    • Call any Ford parts department with this number
    • They can tell you the exact pattern for your model

    Remember: Wheel stores have special tools to measure bolt patterns quickly. If you’re not sure about your measurements, most shops will check this for free.

    Is this really important?

    Installing wheels with the wrong bolt pattern is impossible – they either won’t fit at all or will be dangerously loose. Getting it right the first time saves you time, money, and headaches.

    Comparison of Ford with Other Brands’ Bolt Patterns

    Vehicle/Category Wheel Type Price per Wheel Additional Costs Total Conversion Cost Notes
    Ford F-150 (6x135mm) Factory Wheels $179-500 N/A N/A No adapters needed
      Premium Aftermarket Wheels $199-849 N/A N/A
      Basic Aftermarket Wheels $199-500 N/A N/A
    Lincoln Navigator (6x135mm) Factory Wheels $300-600 N/A N/A Perfect fit, no adapters needed
      Used Market Wheels $150-490 N/A N/A
    Chevrolet/GMC (6×139.7mm) Factory Wheels $200-311 Adapter: +$80-120, Installation: +$40-60 $320-580 Requires adapters
    Toyota Tundra (6×139.7mm) Factory Wheels $220-849 Adapter: +$80-120, Installation: +$40-60 $340-630 Requires adapters
    RAM 1500 (5×139.7mm) Factory Wheels $180-400 N/A Not Recommended Different lug count; safety concerns with adapters

    Shopping Tips:

    • Local Ford dealers sell new wheel sets at prices 30-40% less than standard prices
    • Online sellers often list lower prices, but shipping fees can make them more expensive
    • Extra weight from bolt pattern adapters can change how your truck handles
    • Budget for wheel balancing ($15-25 per wheel) with all new wheels
    See also  Tacoma Wheel Guide: Lug Patterns, Sizes, and More

    Remember: Using adapters adds cost and complexity. The safest and most cost-effective option is usually staying with wheels made for your F-150’s bolt pattern.

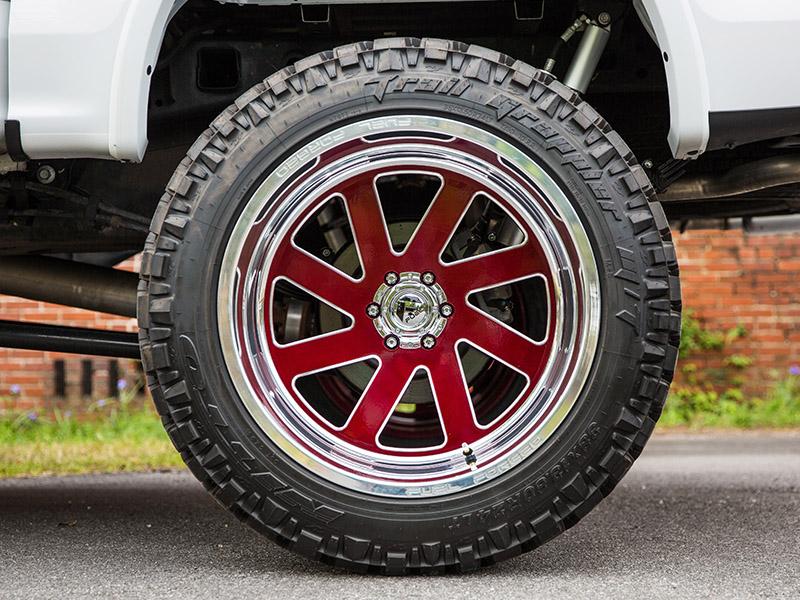

    How to Maintain Bold Patterns on Your Ford

    How_to_Maintain_Bold_Patterns_on_Your_Ford

    Taking care of your wheel mounting system saves money and keeps you safe. Here’s what you need to know:

    Regular Maintenance Checklist

    1. Check lug nut torque every 1,000 miles ($0 – DIY)
    2. Clean mounting surfaces during tire rotations ($0 with rotation service)
    3. Replace rusty lug nuts ($30-50 for a full set)
    4. Inspect wheel studs during brake service ($15-20 per stud if needed)

    Key Equipment

    • Torque wrench ($40-100, one-time purchase)
    • Socket set for lug nuts ($20-30)
    • Wire brush for cleaning ($5-10)

    Most tire shops offer free bolt pattern checks and torque adjustments with any service. Take advantage of this to keep your wheels safely mounted.

    These checks might seem simple, but they prevent bigger problems. A stripped wheel stud replacement can cost $100-200 per wheel if you ignore basic maintenance.

    Conclusion

    Understanding your F-150’s bolt pattern doesn’t have to be so complicated. As we’ve seen, the key is knowing your truck’s year model and the right measurements.

    For all F-150s from 2004 onwards, you’re looking at a 6x135mm pattern – this simple number opens up many wheel options for your truck.

    Remember to double-check both the bolt pattern and other specs like center bore size and offset before making your wheel purchase. This extra step can save you a lot of time and money.

    Need help finding the right wheels for your F-150?

    Feel free to drop a comment below with your truck’s year model, and I’ll help you find the perfect fit.
