Upgrading or replacing the wheels on your 2001 S10 is a great way to improve its look and performance, but knowing the correct bolt pattern is essential for a proper fit.
However, to ensure the wheels fit correctly, knowing the right bolt pattern for your truck is essential.
The bolt pattern is one of the most crucial aspects when selecting new wheels, as it ensures the wheels are securely attached to your truck.
In this guide, I’ll explain everything you need to know about the 2001 S10’s bolt pattern, how to identify it, and why it matters.
I’ll also guide you through measuring the bolt pattern yourself and how to make sure you’re getting the right wheels for your truck.
By the end, you’ll know exactly what to look for when choosing new wheels for your truck.

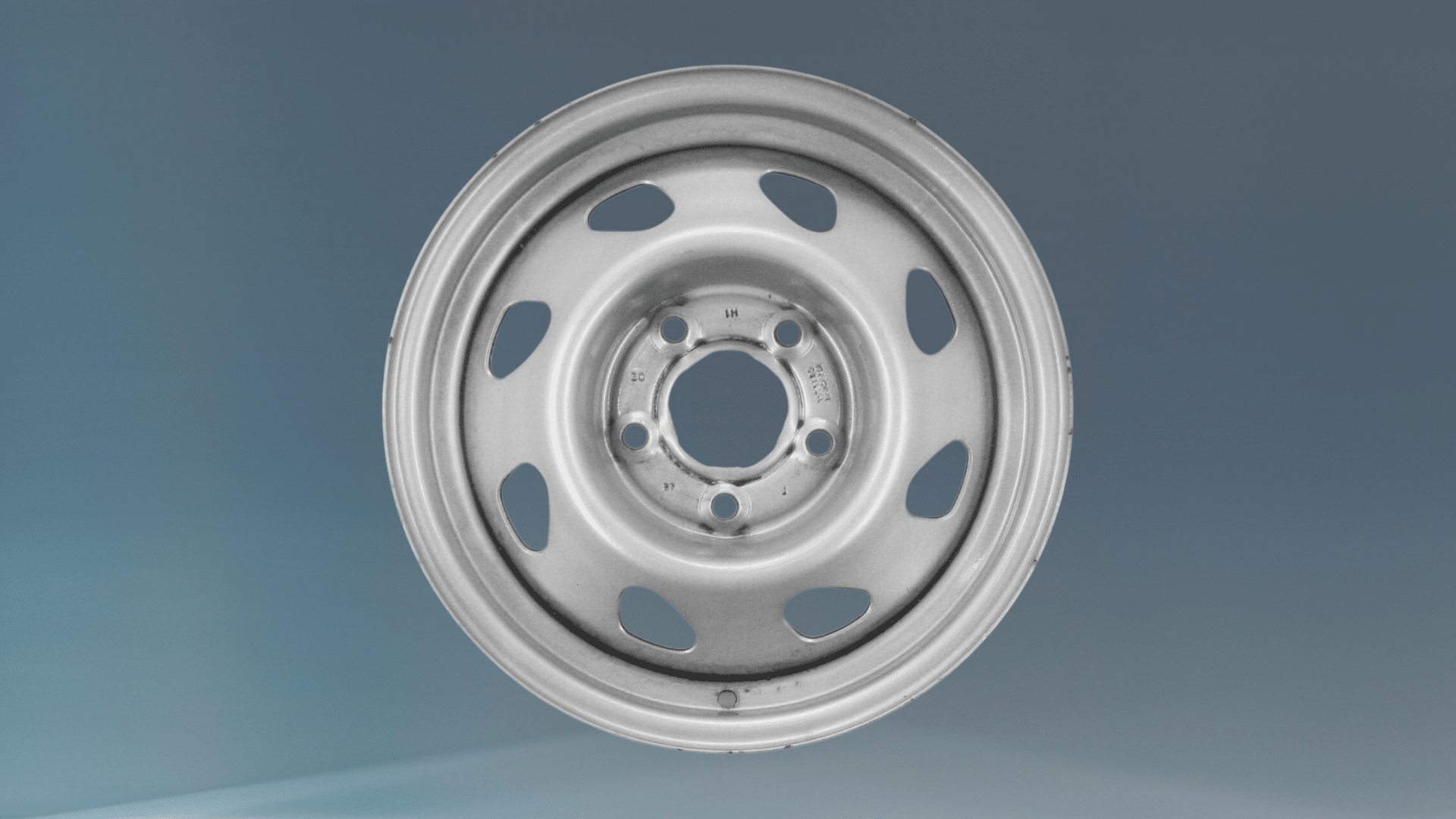

What is the Bolt Pattern for a 2001 S10?
Understanding the Bolt Pattern
The bolt pattern, sometimes called the “PCD” (Pitch Circle Diameter), refers to the number of bolt holes on a wheel and the distance between the center of one hole and the center of the next.
This measurement ensures that the wheel fits securely onto the hub of your truck.
In the case of the 2001 S10, the bolt pattern is 5×4.75 inches or 5×120.65mm.
The first number, “5”, indicates five bolt holes on the wheel.
The second number, “4.75 inches” (or 120.65mm), refers to the distance from the center of one bolt hole to the center of the next.
The wheel must have exactly these measurements to fit your 2001 S10 properly.
Why the Bolt Pattern Matters
The correct bolt pattern ensures that the wheel attaches properly to the truck.
If you try to use wheels with a different bolt pattern, the bolts won’t align with the wheel hub, leading to an improper fit.
This can be dangerous as the wheel could become loose or fall off while driving.
The wrong bolt pattern can also affect your truck’s alignment, braking, and suspension systems.
Understanding the Compatibility of Bolt Patterns
Importance of Compatibility
Compatibility between your vehicle and the wheels you choose is essential.
While bolt patterns are the most obvious factor, there are other factors that influence how well the wheels will fit.
For example, the hub bore, offset, and wheel size all play a role in ensuring the wheel is mounted securely and doesn’t interfere with other components of the truck.
If your 2001 S10 has the correct bolt pattern, but the hub bore is different, the wheel may not sit securely on the hub.
Similarly, an incorrect wheel offset could cause the wheel to stick out too much or rub against suspension parts.
Therefore, understanding compatibility doesn’t just mean focusing on the bolt pattern.
You must also check other factors, such as:
- Hub Bore Size: The diameter of the hole in the center of the wheel that fits onto the wheel hub. For the 2001 S10, the hub bore size is typically 2.5 inches (63.4mm).
- Wheel Offset: This refers to how far the wheel’s centerline is from the mounting surface. An incorrect offset could cause handling problems, or the wheel could stick out too far, making it prone to rubbing.
- Wheel Size: The diameter and width of the wheel also affect how well it fits on your truck. The 2001 S10 typically uses wheels ranging from 15 to 16 inches in diameter, depending on the trim.
Key Factors in Compatibility
- Bolt Pattern: 5×4.75 inches or 5×120.65mm (the focus of this blog).
- Hub Bore: 2.5 inches (63.4mm).
- Wheel Size: Ranges from 15 inches to 16 inches in diameter, depending on the trim.
- Offset: Depending on the type of wheels, the offset may vary slightly.
By paying attention to these factors, you can ensure the wheels you choose are fully compatible with your 2001 S10.
List of Correct Bolt Patterns for 2001 S10 Models
The 2001 S10 has a 5×4.75-inch bolt pattern, but different trim levels and wheel options may affect the details.
However, the bolt pattern itself stays the same across these models:
- Chevrolet S10 Regular Cab: 5×4.75 inches
- Chevrolet S10 Extended Cab: 5×4.75 inches
- Chevrolet S10 ZR2: 5×4.75 inches (Note: ZR2 may have slightly different wheel sizes, so verify the exact wheel size for your trim).
For all trims of the 2001 S10, the 5×4.75 inches (5×120.65mm) bolt pattern remains constant, making it easier to find compatible aftermarket wheels.
How to Identify the Correct Bolt Pattern for a 2001 S10
Step-by-Step Guide to Measuring the Bolt Pattern
If you’re unsure about the bolt pattern for your 2001 S10, you can easily measure it yourself using a few simple tools:
Count the number of bolt holes
Look at your current wheels and count how many bolt holes there are.
For the 2001 S10, there will be five bolt holes.
Measure the distance between the holes.
To measure the bolt pattern, start by measuring from the center of one bolt hole to the center of the adjacent hole.
This is the PCD measurement.
For a 5×4.75-inch pattern, the distance between bolt holes should be 4.75 inches.
- To measure this accurately, use a caliper or measuring tape. If you’re not sure, you can also use a bolt pattern gauge, a tool specifically designed to measure bolt patterns.
Confirm the measurements
Once you’ve measured the distance between bolt holes, check the measurement against the 5×4.75 inches or 120.65mm standard.
Use Online Resources or a Professional
If you’re unsure about the measurements or the compatibility, online resources like Wheel-Size.com can help you find the right bolt pattern for your vehicle by entering your truck’s make, model, and year.
Alternatively, visiting a tire or auto shop professional can give you peace of mind, as they will ensure the measurements are correct.
Comparisons Between the 2001 S10 and Other Vehicles’ Bolt Patterns
Here’s the comparison of the 2001 S10’s bolt pattern with other vehicles:
| Vehicle Model | Bolt Pattern | Wheel Size Range | Hub Bore Size | Other Notes |
|---|---|---|---|---|
| 2001 S10 | 5×4.75 inches (5×120.65mm) | 15-16 inches | 2.5 inches (63.4mm) | Common across all trims of 2001 S10 |
| Chevrolet Silverado | 5×4.75 inches (5×120.65mm) | 16-20 inches | 2.5 inches (63.4mm) | Similar to 2001 S10, but check trim variations |
| Ford Ranger | 5×4.5 inches (5×114.3mm) | 15-17 inches | 2.5 inches (63.4mm) | The bolt pattern differs from the 2001 S10 |
| Dodge Dakota | 5×4.5 inches (5×114.3mm) | 15-17 inches | 2.5 inches (63.4mm) | The bolt pattern differs from the 2001 S10 |
| GMC Canyon | 5×4.75 inches (5×120.65mm) | 15-18 inches | 2.5 inches (63.4mm) | Same bolt pattern as the 2001 S10 |
| Toyota Tacoma | 5×4.5 inches (5×114.3mm) | 15-17 inches | 2.5 inches (63.4mm) | The bolt pattern differs from the 2001 S10 |
Key Takeaways:
- 2001 S10 shares the 5×4.75-inch (5×120.65mm) bolt pattern with other GM models like the Chevrolet Silverado and GMC Canyon, making wheel swaps easier across these vehicles.
- Ford Ranger, Dodge Dakota, and Toyota Tacoma use a 5×4.5 inches (5×114.3mm) bolt pattern, which is incompatible with the 2001 S10 without adapters.
- Hub bore sizes are mostly the same, but it’s important always to verify the measurements for compatibility.
This comparison can help you understand how the 2001 S10’s bolt pattern stacks up against similar trucks, making it easier to know which wheels will fit properly.
How to Maintain Bolt Patterns on Your 2001 S10
Regular Checks and Inspections
Once you’ve found the correct bolt pattern and installed your wheels, it’s important to maintain the integrity of the bolt pattern to ensure safe driving:
-
Check lug nut tightness: Periodically check that the lug nuts are tight. Over time, vibrations from driving can loosen them, so it’s important to inspect them regularly.
-
Clean the wheel hub and bolt holes: Dirt and rust can build up on the wheel and hub. Clean both the bolt holes and the hub regularly to ensure a proper fit. Use a wire brush to remove rust and debris.
Use Correct Tools for Installation
When installing or replacing wheels, always use a torque wrench to tighten the lug nuts to the manufacturer’s specifications.
This ensures an even and secure fit, preventing damage to the threads or wheel distortion.
Prevent Over-tightening
Over-tightening the lug nuts can cause wheel damage and prevent proper removal in the future.
Always follow the recommended torque specifications for your 2001 S10’s wheels.
Conclusion
Understanding the bolt pattern for your 2001 S10 is crucial when choosing new wheels.
The standard bolt pattern of 5×4.75 inches (5×120.65mm) is used across most 2001 S10 models, making it easier to find compatible wheels.
If the bolt pattern doesn’t match, your wheels won’t fit properly, leading to driving, alignment, and even safety issues.
While the bolt pattern is a key factor, there are other things to consider, such as hub bore size, offset, and wheel size.
These elements work together to ensure the wheels fit correctly and perform well.
Taking the time to check your vehicle’s specifications can save you from costly mistakes and ensure a smooth, safe ride.
You’ll be able to find wheels that fit your 2001 S10 perfectly by properly matching the bolt pattern and other measurements and helping it perform at its best.
Frequently Asked Questions
How do I measure the bolt pattern for my 2001 S10?
To measure the bolt pattern, count the number of bolts on your wheel and measure the distance between the center of one bolt hole and the next. For the 2001 S10, this should be 4.75 inches (120.65mm).
Can I use wheels from other vehicles on my 2001 S10?
You can, but the bolt pattern must match. For example, vehicles with a 5×4.5-inch bolt pattern will not fit your S10 without an adapter.
How do I know if my 2001 S10 wheels are properly installed?
Ensure the lug nuts are tight, and check for any signs of vibration or wobbling. You can also visually inspect the fitment and confirm the lug nuts are not too tight or loose.
Can I swap wheels between a 2001 S10 and a Silverado?
Yes, the 5×4.75-inch bolt pattern is common between the 2001 S10 and many Chevrolet Silverado models, making them compatible in terms of bolt pattern.
How often should I check my wheel’s bolt pattern?
It’s a good idea to check the bolt pattern when you change your wheels or tires or at least once a year during regular maintenance to ensure everything is in good condition.
