Today, I want to share my experience with something that often confuses many of us: bolt patterns.
Trust me, I’ve been there, scratching my head while trying to find the right wheels for my Honda CR-V.
I’ve owned my CR-V for years and learned quite a bit about these important little details.
Whether you’re looking to upgrade your wheels or just curious about what those numbers mean, I’ve got you covered.
In this guide, I’ll break down everything about CR-V bolt patterns in simple terms.
There is no fancy jargon, just practical info from one CR-V owner to another.
What is the Bolt Pattern for a Honda CRV?
Let me explain what a bolt pattern means in simple terms.

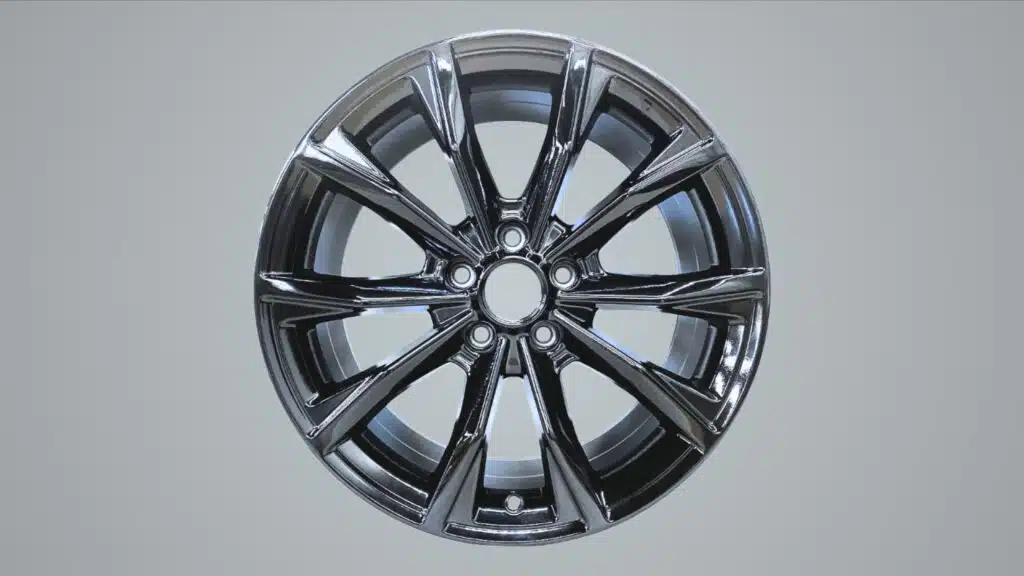

When I look at my CR-V’s wheels, I see five bolt holes arranged in a circle.
We call this circle a Pitch Circle Diameter (PCD), and we measure its size in millimeters or inches.
My Honda CR-V has a 5×114.3 mm bolt pattern.
The “5” means five bolt holes, while “114.3” shows the circle’s size in millimeters.
If you prefer inches, that’s 5×4.5 inches – it means the same thing.
I checked all CR-V models from 1997 to now.
They all use this same bolt pattern, which makes finding new wheels easier.
Understanding Honda CRV Bolt Patterns and their Compatibility
When I change my CR-V’s wheels, I always make sure to match this bolt pattern exactly.
Even a tiny difference of half a millimeter means the wheel won’t fit right.
I learned that proper wheel fit depends on lining up these bolt holes perfectly.
The wrong bolt pattern causes several problems.
I’ve seen wheels that seemed to fit at first but weren’t centered correctly.
This makes wheels shake while driving and can bend the bolts.
In my experience, wheels with the right bolt pattern sit flush against the hub and don’t wobble or shake.
Think about this: your entire car rides on these wheels. That’s why getting the right fit matters so much.
List of the Correct Bolt Pattern for a Different Honda CRV Model
| CR-V Generation | Years | Bolt Pattern | Hub Bore | Standard Wheels |
|---|---|---|---|---|
| First Gen | 1997-2001 | 5×114.3 mm / 5×4.5″ | 64.1 mm | 15-inch |
| Second Gen | 2002-2006 | 5×114.3 mm / 5×4.5″ | 64.1 mm | 16-inch |
| Third Gen | 2007-2011 | 5×114.3 mm / 5×4.5″ | 64.1 mm | 17-inch |
| Fourth Gen | 2012-2016 | 5×114.3 mm / 5×4.5″ | 64.1 mm | 16-18 inch |
| Fifth Gen | 2017-2022 | 5×114.3 mm / 5×4.5″ | 64.1 mm | 17-19 inch |
| Sixth Gen | 2023-Present | 5×114.3 mm / 5×4.5″ | 64.1 mm | 18-19 inch |
How to Identify the Correct Bolt Pattern for a Specific Honda CRV Model
When I check my CR-V’s bolt pattern, I use three simple steps. First, I count the bolt holes – there should be five.
Then, I measure from the middle of one bolt hole to the outer edge of the hole across from it.
This gives me a pattern size of 114.3 mm.
I also find this information in my CR-V’s manual, usually in the wheel specifications section.
Sometimes, I look at the sticker inside my driver’s door frame – it lists these details, too.
For a quick check, I just looked at my current wheels.
The numbers “5×114.3” are often stamped right on them.
Comparisons Between Honda CRV’s and other Brands’ Bolt Patterns
| Vehicle Model | Bolt Pattern | Compatibility with CR-V |
|---|---|---|
| Honda CR-V | 5×114.3 mm | Standard Reference |
| Toyota RAV4 | 5×114.3 mm | Direct Fit |
| Mazda CX-5 | 5×114.3 mm | Direct Fit |
| Nissan Rogue | 5×114.3 mm | Direct Fit |
| VW Tiguan | 5×112 mm | No Fit |
| Ford Escape | 5×108 mm | No Fit |
I’ve noticed many SUVs use the same bolt pattern as my CR-V. This means I have more wheel options.
But I always check each wheel’s exact measurements before buying since some brands that look similar might not fit.
How to Maintain Bolt Patterns on Your Honda CRV
I check my wheel bolts every few months. Using my torque wrench, I make sure they’re tight but not too tight.
When I clean my wheels, I use a small brush to keep the bolt holes clear of dirt and rust.
I never use power tools on my wheel bolts – they can damage the threads.
Instead, I use a regular wrench and follow the proper torque settings.
Each time I rotate my tires, I look at the bolt holes for signs of wear.
When putting the wheels back on, I clean the mounting surface.
This helps prevent rust and keeps everything lined up correctly.
Conclusion
I’ve covered everything you need to know about Honda CR-V bolt patterns in this guide.
The simple truth is that all CR-V models use a 5×114.3 mm pattern. This hasn’t changed since 1997.
When buying new wheels, this number is your starting point.
I always check it twice because getting it wrong means wasted money and safety risks.
While I’ve given you the basics, having a professional check your wheels is smart.
They’ll make sure everything fits right and stays safe on the road.
Remember: right bolt pattern = right fit = safe drive. That’s what matters most when choosing wheels for your CR-V.
