    Home » Blog » Explroing the Key Insights of Ford Raptor Bolt Pattern
    General Automotive Knowledge

    Explroing the Key Insights of Ford Raptor Bolt Pattern

    David AllisterBy David AllisterDecember 25, 20246 Mins Read
    Facebook Twitter Pinterest LinkedIn WhatsApp Reddit Tumblr Email
    ford raptor bolt pattern
    Share
    Facebook Twitter LinkedIn Pinterest Email

    The Ford Raptor’s bolt pattern is a key detail that can make or break your wheel upgrade plans.

    While this high-performance truck comes ready for off-road action, many owners want to modify their wheel setup for better performance or style.

    Understanding the bolt pattern specifications helps ensure you select wheels that fit correctly and maintain your truck’s capability.

    This guide breaks down everything you need to know about Raptor wheel fitment, from basic measurements to real-world applications.

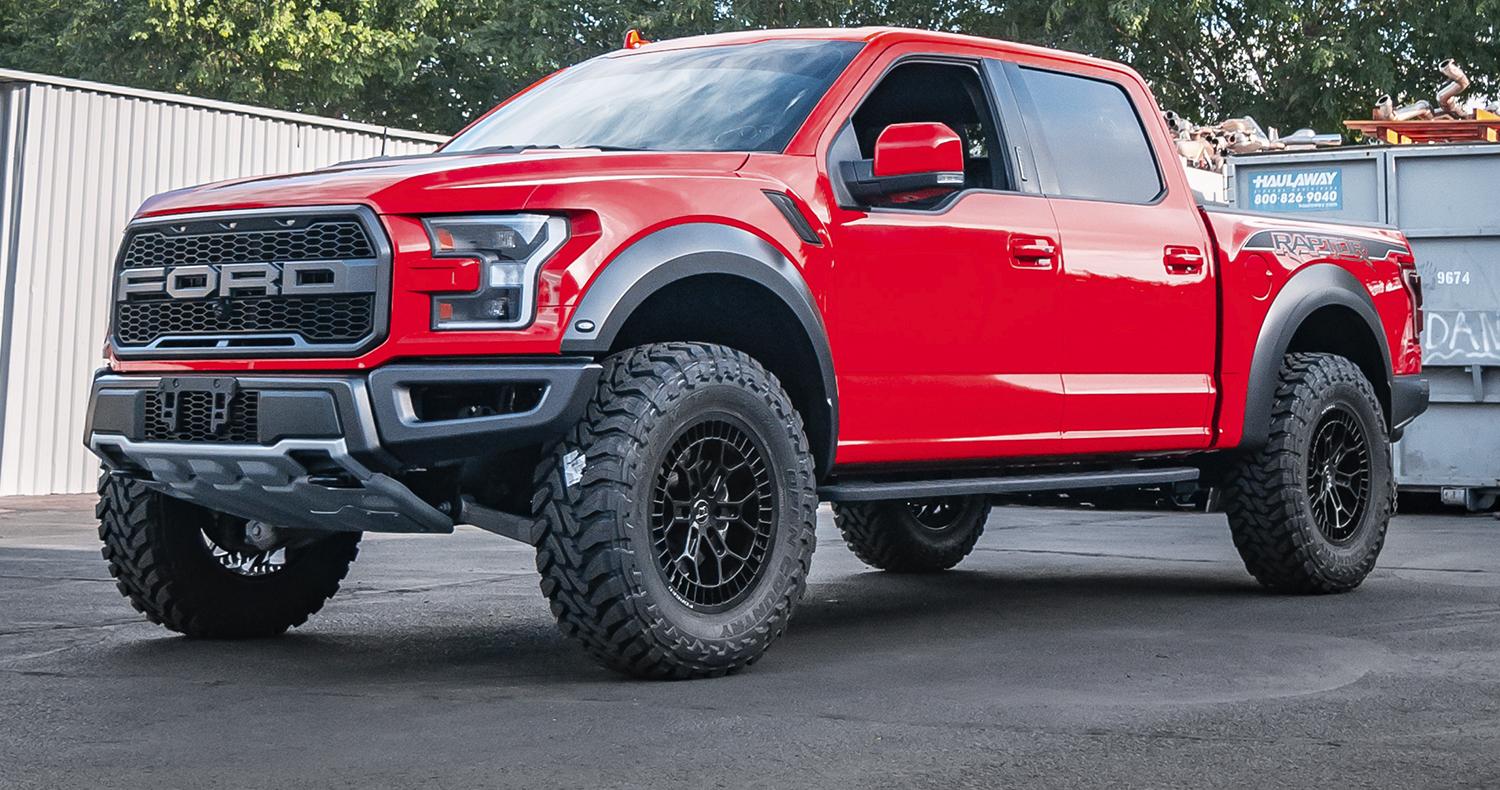

    What is the Bolt Pattern for a Ford Raptor

    What_is_the_Bolt_Pattern_for_a_Ford_Raptor

    The Ford Raptor uses a 6×135 bolt pattern, which means it has

    • 6 lugs (or bolt holes)
    • 135mm diameter circle that the lug holes create

    Additional important wheel specifications

    • Lug nut thread size: M14 x 2.0
    • Center bore: 87.1mm
    • Factory wheel offset: +34mm

    This bolt pattern has remained consistent on Raptors from 2010 to the present day. However, this pattern is unique to the Raptor and won’t match other Ford F-150 models from 1997-2003, which used a 5×135 pattern.

    Knowing these specs helps ensure proper fitment if you’re planning wheel upgrades.

    • Always verify wheel specifications match these numbers
    • Ensure proper lug nut seat type (conical seat in most cases)
    • Consider hub-centric rings if aftermarket wheels have a larger center bore

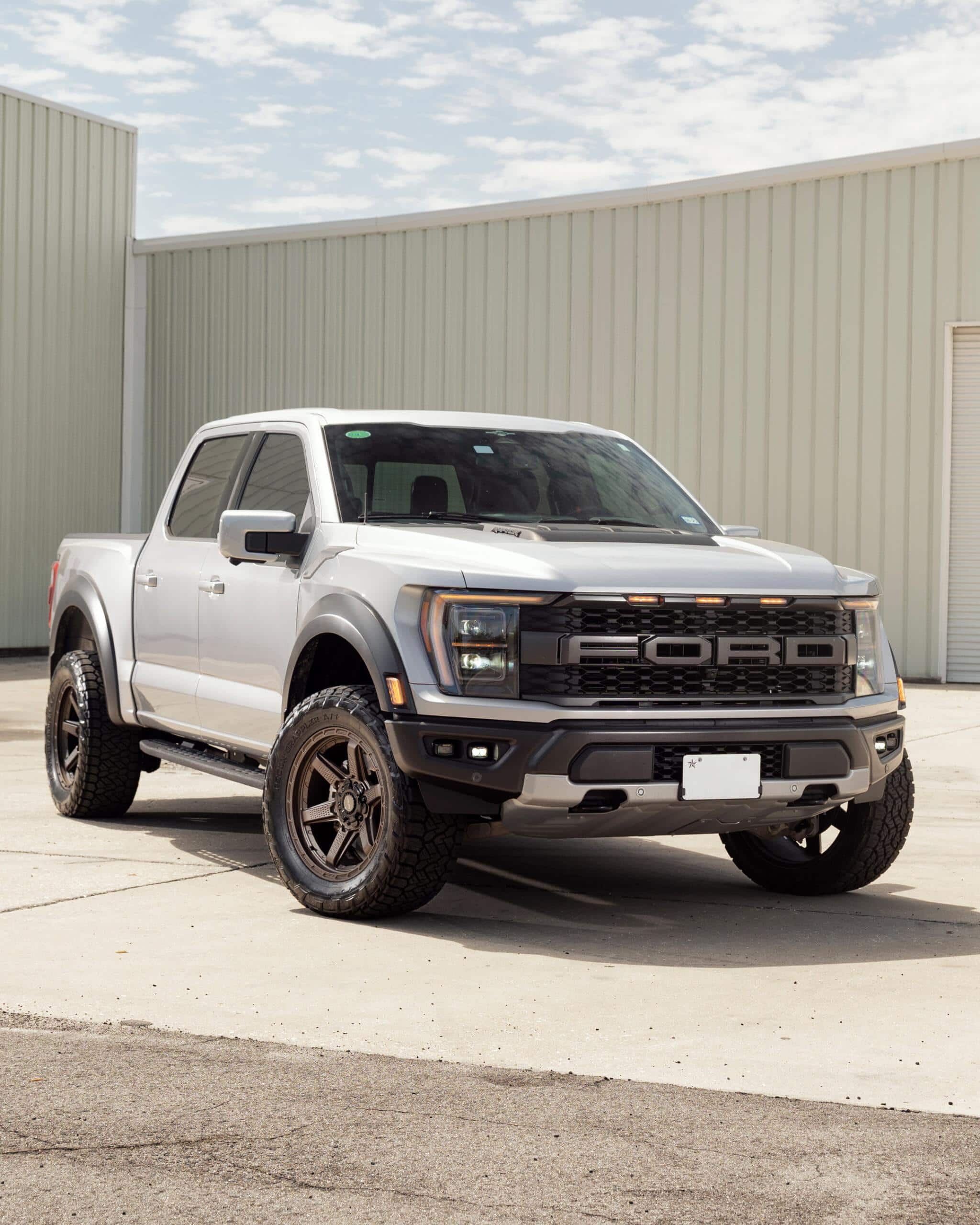

    Understanding Ford Raptor Bolt Patterns & Their Compatibility

    Understanding_Ford_Raptor_Bolt_Patterns__Their_Compatibility

    1. Current Raptor Bolt Pattern

    The modern Ford Raptor (2010-present) uses a 6x135mm bolt pattern. This means:

    • 6 lug nuts in a circle
    • 135mm diameter measured across lug centers
    • M14 x 2.0 thread size for lug nuts
    • 87.1mm center bore diameter

    2. Historical Changes

    Ford has changed the F-150 platform’s bolt pattern over the years:

    • 1981-1996: 5×139.7mm (5×5.5″)
    • 1997-2003: 5x135mm
    • 2004-present: 6x135mm (Raptor and F-150)

    3. Compatibility Guide

    The 6×135 pattern means:

    • Won’t fit wheels from pre-2004 F-150s
    • Not compatible with most other truck brands
    • Requires Raptor/F-150 specific wheels
    • Adapters needed for different patterns
    See also  The 2025 Honda Accord: A Blend of Style and Performance

    4. What This Means for Wheel Shopping

    When looking for wheels:

    • Must match 6×135 bolt pattern
    • Verify center bore size (87.1mm)
    • Check hub size compatibility
    • Consider hub-centric rings if needed

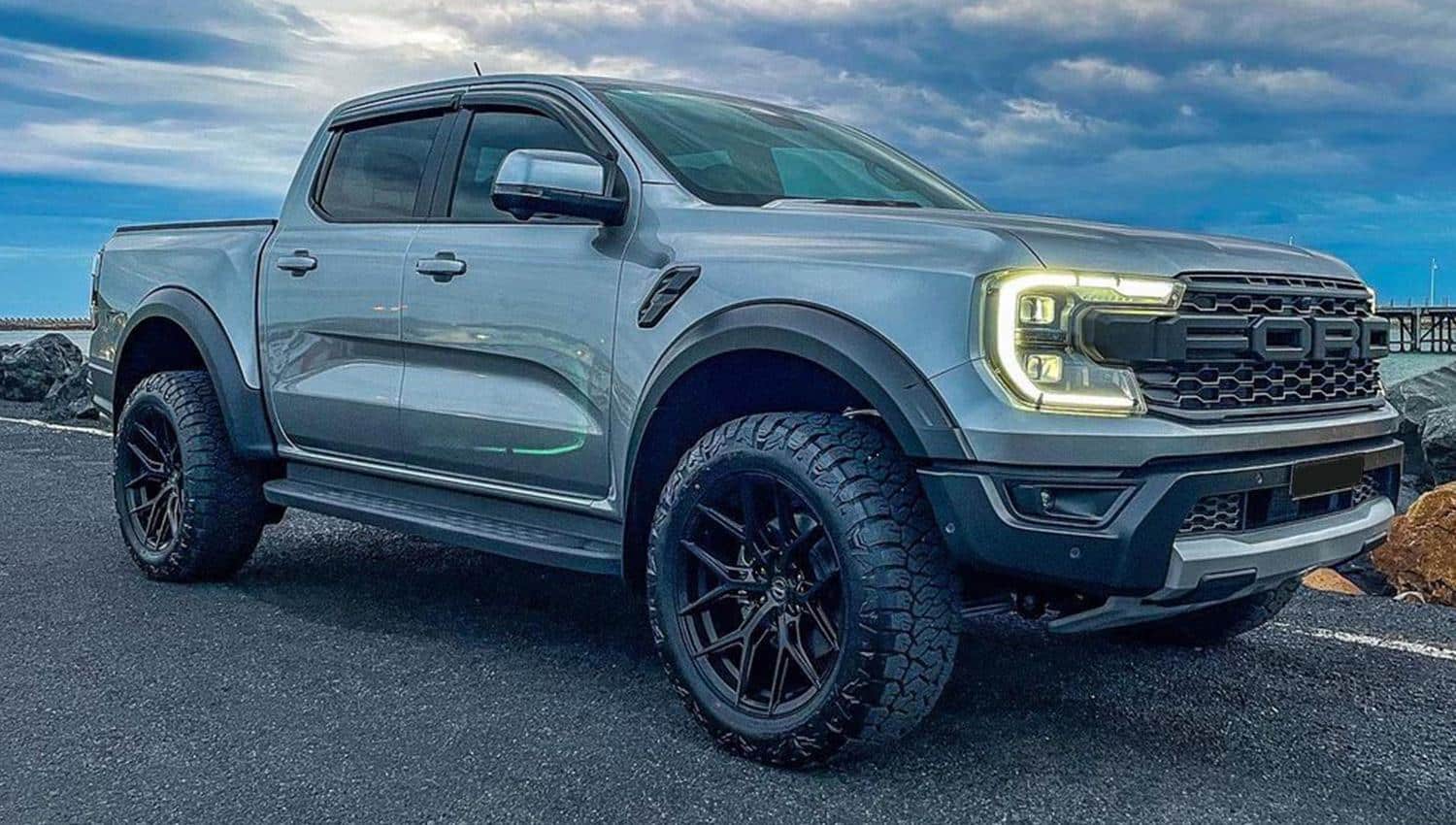

    Common Mistakes I Usually Avoid

    Common_Mistakes_I_Usually_Avoid

    • Assuming all F-150 wheels will fit
    • Using incorrect lug nuts
    • Forgetting to check the center bore size
    • Not verifying load ratings

    List of the Correct Bolt Pattern for a Different Ford Raptor

    Model Bolt Pattern Hub Center Bore (mm) Lug Thread Size Stock Wheel Size (inches) Factory Offset (mm)
    First Generation (2010-2014) 6×135 87.1 M14 x 2.0 17×8.5 +34
    Second Generation (2017-2020) 6×135 87.1 M14 x 2.0 17×8.5 +34
    Third Generation (2021-Present) 6×135 87.1 M14 x 2.0 17×8.5 +34
    Raptor R (2023-Present) 6×135 87.1 M14 x 2.0 17×8.5 +34
    Note: Ford has maintained consistent bolt pattern specifications across all Raptor generations, making wheel compatibility straightforward when upgrading or replacing wheels.

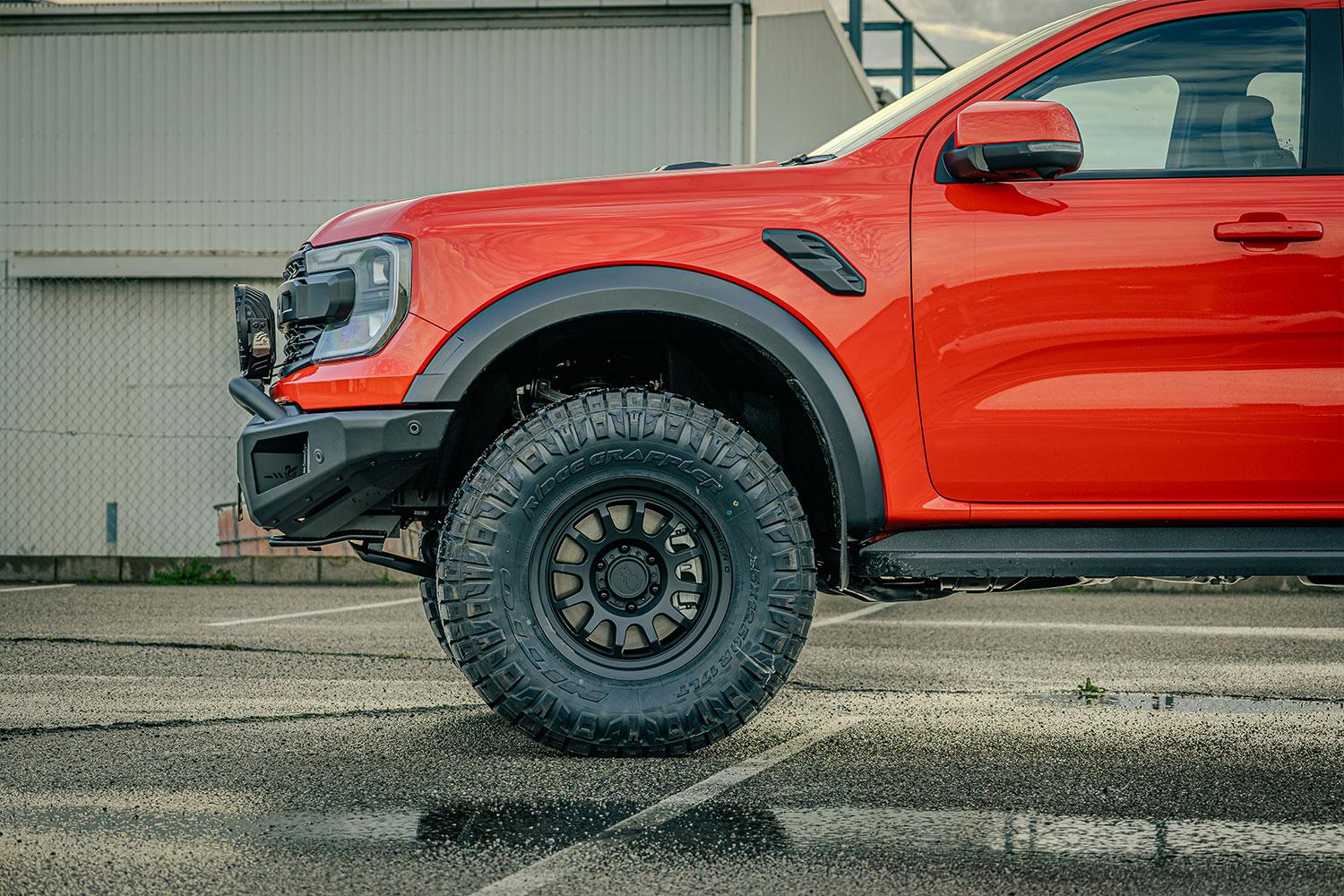

    How to Identify the Correct Bolt Pattern for a Specific  Ford Raptor

    How_to_Identify_the_Correct_Bolt_Pattern_for_a_Specific_Ford_Raptor

    Physical Measurement Method

    1. Count the Lug Holes

    • All Raptors have 6 lug holes
    • These are arranged in a circular pattern

    2. Measure the Bolt Circle

    • Measure from the center of one lug to the center of the opposite lug
    • For Raptors, this should be 135mm
    • Use a proper measuring tool for accuracy

    Year-Based Identification

    All Ford Raptors share the same bolt pattern regardless of year:

    • First Gen (2010-2014): 6x135mm
    • Second Gen (2017-2020): 6x135mm
    • Third Gen (2021-Present): 6x135mm
    • Raptor R: 6x135mm

    Critical Measurements to Note

    • Lug Thread Size: M14 x 2.0
    • Center Bore: 87.1mm
    • Factory Wheel Specs: 17×8.5 inches
    • Stock Offset: +34mm

    Easy Verification Methods to Check Out

    1. VIN Check

    • Look up your VIN number
    • Confirm your exact model year
    • Cross-reference with factory specs
    See also  2020 Jeep Wrangler Bolt Pattern: A Detailed Guide

    2. Visual Inspection

    • Compare to factory wheel specifications
    • Check existing wheel markings
    • Look for stamped numbers on wheels

    3. Professional Verification

    • Visit a tire shop
    • Have a professional measure
    • Get written specifications

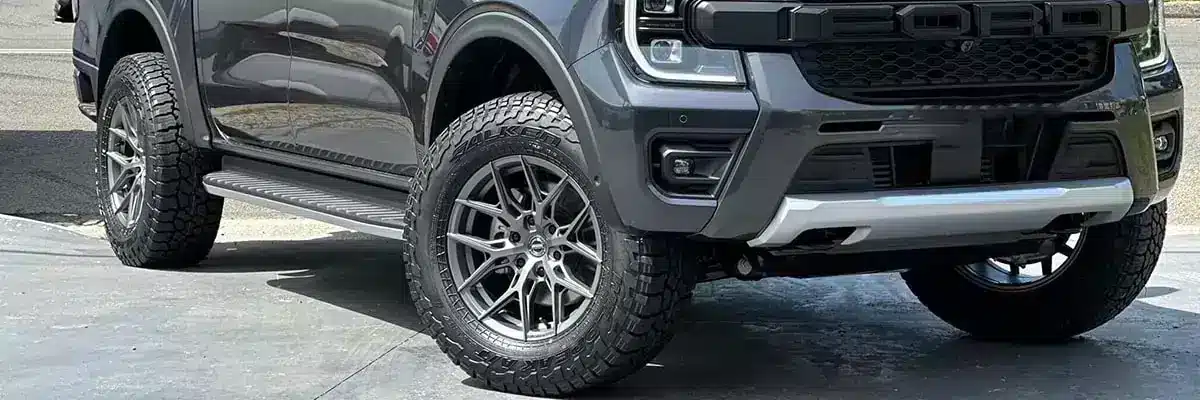

    Common Mistakes I Usually Avoid

    Common_Mistakes_I_Usually_Avoid

    Incorrect Measuring

    • Don’t measure edge-to-edge
    • Avoid guessing measurements
    • Use proper measuring tools

    Assumption Errors

    • Don’t assume all F-150 wheels fit
    • Check both bolt pattern and offset
    • Verify center bore size

    Overlooking Details

    • Always check load ratings
    • Verify lug nut seat type
    • Consider hub-centric rings if needed

    Additional Tips for Accuracy

    • Use dedicated bolt pattern gauges
    • Document all measurements
    • Double-check all specifications
    • Consider factory wheel codes

    Comparisons Between  Ford Raptor’s & Other Brands’ Bolt Patterns with Prices

    Category Model Bolt Pattern Base Wheel Cost (per wheel) Premium Options (per wheel) Compatibility
    Ford Family Comparison Ford Raptor (2010-Present) 6x135mm $300-$450 $500-$800 –
      Ford F-150 (2004-Present) 6x135mm $200-$350 $400-$600 Compatible with Raptor
      Ford Super Duty 8x170mm $250-$400 $450-$700 Not compatible with Raptor
    Competitor Comparisons Chevrolet Silverado 1500 6×139.7mm $200-$350 $400-$600 Not compatible with Raptor
      RAM 1500 5×139.7mm/6×139.7mm $220-$380 $450-$650 Not compatible with Raptor
      Toyota Tundra 6×139.7mm $250-$400 $450-$700 Not compatible with Raptor
    Cost Impact of Bolt Pattern Standard Wheels – $300-$450 (Raptor-specific) $200-$350 (Universal fit) Adapter cost: $50-$150 per wheel
      Performance Wheels – $500-$1,000 (Raptor-specific) $400-$800 (Universal fit) Beadlock capable: Add $200-$400
      Custom Forged Options – $1,000-$2,000 (Raptor-specific) $800-$1,800 (Universal fit) Custom finishes: Add $200-$500

    How to Maintain Bold Patterns on Your Ford Raptor

    How_to_Maintain_Bold_Patterns_on_Your_Ford_Raptor

    Weekly Checks

    • Look for loose lug nuts
    • Check for visible damage
    • Listen for unusual sounds
    • Watch for wobbling wheels
    See also  Cars with the 5x110 Bolt Pattern: What You Need to Know

    Monthly Inspections

    • Clean the hub area thoroughly
    • Check torque specs (150 ft-lbs)
    • Inspect for rust formation
    • Clean mounting surfaces

    Proper Torque Process

    • Start with clean, dry threads
    • Hand-tighten all lug nuts
    • Follow star pattern tightening
    • Use a calibrated torque wrench
    • Double-check all lugs

    Cleaning Tips

    • Use a wire brush for stubborn dirt
    • Apply rust penetrant when needed
    • Keep thread areas clean
    • Remove road grime regularly

    Warning Signs

    • Clicking sounds when turning
    • Visible rust around lugs
    • Loose-feeling wheels
    • Uneven tire wear

    Professional Maintenance

    Get expert help when you notice:

    • Stripped threads
    • Bent studs
    • Excessive rust
    • Damaged hub bore

    Prevention Tips

    • Avoid impact wrenches
    • Use correct size sockets
    • Keep spare lug nuts handy
    • Address issues immediately

    Remember: Good maintenance keeps your wheels secure and performs better off-road.

    Conclusion

    While the consistent 6x135mm pattern across all Raptor generations makes wheel selection straightforward, proper maintenance remains essential.

    Regular checks, correct torque specifications, and prompt attention to any issues will help ensure your wheels stay securely mounted, whether you’re on the highway or tackling rough terrain.

    Remember, while aftermarket wheels can enhance your Raptor’s appearance and performance, always verify the bolt pattern specifications before purchasing.

    Taking time to understand these basics and following proper maintenance procedures will help protect your investment and keep your Raptor performing at its best for years to come.
