In automotive engineering, few details are as crucial yet often overlooked as the bolt pattern.
The 5×150 bolt pattern represents a sophisticated wheel configuration featuring five bolt holes arranged in a circular pattern, with precisely 150 millimeters between opposing holes.
This design isn’t just about connecting wheels to vehicles – it’s a testament to engineering excellence in heavy-duty applications.
This pattern is found predominantly in premium SUVs and trucks like the Toyota Land Cruiser, Lexus LX series, and Ford Expedition, and it delivers exceptional stability and load-bearing capacity.
Its wider bolt circle diameter and five-point configuration ensure optimal weight distribution and stress management, making it the preferred choice for vehicles that demand tireless performance under challenging conditions.
What Is the 5×150 Bolt Pattern?

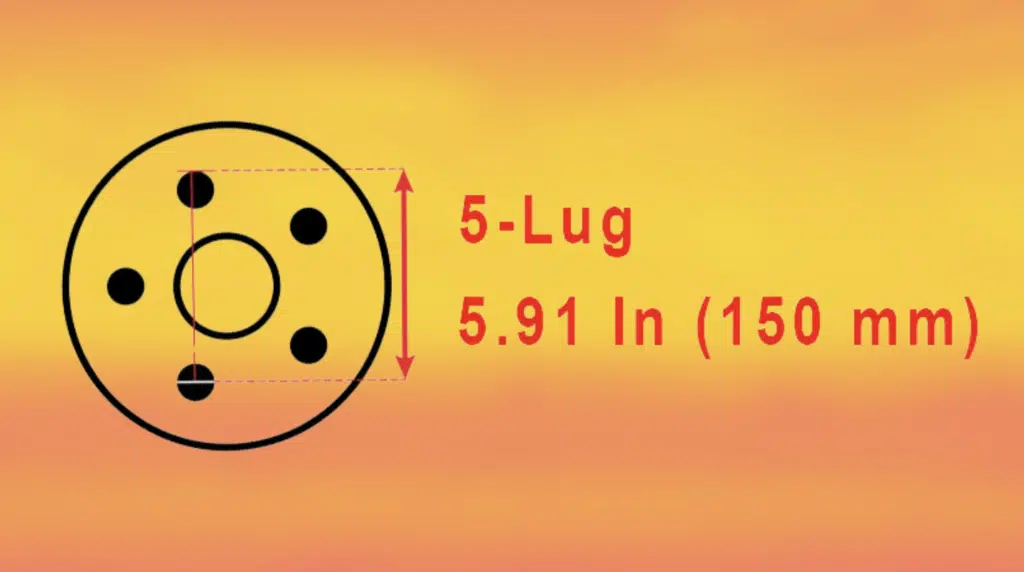

The 5×150 bolt pattern represents a specific wheel configuration where five bolt holes are arranged in a circular pattern on the wheel hub, with exactly 150 millimeters between opposing bolt holes (equivalent to 5.91 inches).
This pattern is engineered for optimal stability and superior load-bearing capacity, making it ideal for larger vehicles like trucks and SUVs.
The five-bolt design ensures even weight distribution and stress management across the wheel assembly.
While this pattern offers excellent durability and strength, it’s less common than other bolt patterns, which can limit aftermarket wheel options.
The larger bolt circle diameter typically increases manufacturing costs, affecting replacement wheel pricing.
Choosing Wheels for 5×150 Bolt Pattern
Several critical factors must be considered when selecting wheels with a 5×150 bolt pattern to ensure performance and safety.
The first step is verifying your vehicle’s exact fitment requirements, as this pattern is common across multiple Toyota, Lexus, and other luxury SUV models.
Beyond the bolt pattern, pay attention to the wheel’s offset (with many vehicles in this category preferring 0mm offset) and its load rating, which must match your vehicle’s weight and usage demands.
Material choice is crucial – while aluminum alloy wheels offer a good balance of weight reduction and durability, forged options provide maximum strength for off-road applications.
Consider brake clearance, especially for vehicles like the Land Cruiser 300 series, which may require specific fitment options.
Finally, while looks are important, prioritize wheels from reputable manufacturers who have extensively tested their products for these vehicle applications.
Why Upgrade To a 5×150 Bolt Pattern?
A 5×150 bolt pattern upgrade isn’t just about looks – it represents a significant engineering choice particularly suited for heavy-duty vehicles and demanding applications.
This pattern offers superior stability due to its wider bolt circle diameter, which better distributes load forces across the wheel assembly.
This pattern was specifically chosen for vehicles like the Toyota Land Cruiser, Lexus LX series, or Ford Expedition to handle increased torque, payload capacity, and off-road stress.
The five-bolt configuration provides the optimal balance between weight distribution and structural integrity. At the same time, the 150mm spacing ensures adequate clearance for larger brake assemblies common in modern SUVs and trucks.
Additionally, this pattern opens up access to premium aftermarket wheels specifically engineered for high-performance and heavy-duty applications, allowing owners to customize their vehicles without compromising safety or capability.
Vehicles Using the 5×150 Bolt Pattern
The 5×150 bolt pattern is predominantly found in larger vehicles, particularly luxury SUVs and full-size trucks from select manufacturers.
This pattern is specifically engineered for heavy-duty applications, offering superior stability and load-bearing capacity for these larger vehicles.
While less common than standard patterns, it’s the preferred choice for many premium SUVs and trucks.
Vehicles using 5×150 pattern:
Toyota Land Cruiser (1998-2023)
- Flagship luxury SUV model from Toyota
- Both 100 Series (1998-2007) and 200 Series (2007-2023) use 5×150 pattern
- Known for exceptional off-road capability and durability
- Common wheel size compatibility with 17″-20″ options

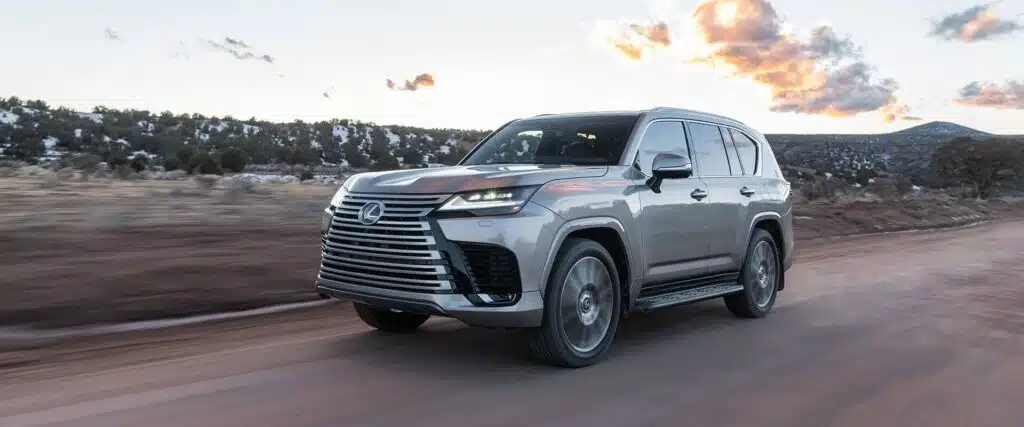

Lexus LX Series (1998-2023)
- Luxury variant of the Land Cruiser platform
- Features premium amenities and upscale styling
- Models include LX470 and LX570
- Higher load-bearing requirements due to added luxury features
Cadillac Escalade (2002-2023)
- Premium American luxury SUV
- Features large brake assemblies requiring specific wheel clearance
- Popular for aftermarket wheel customization
- Requires wheels rated for higher load capacity

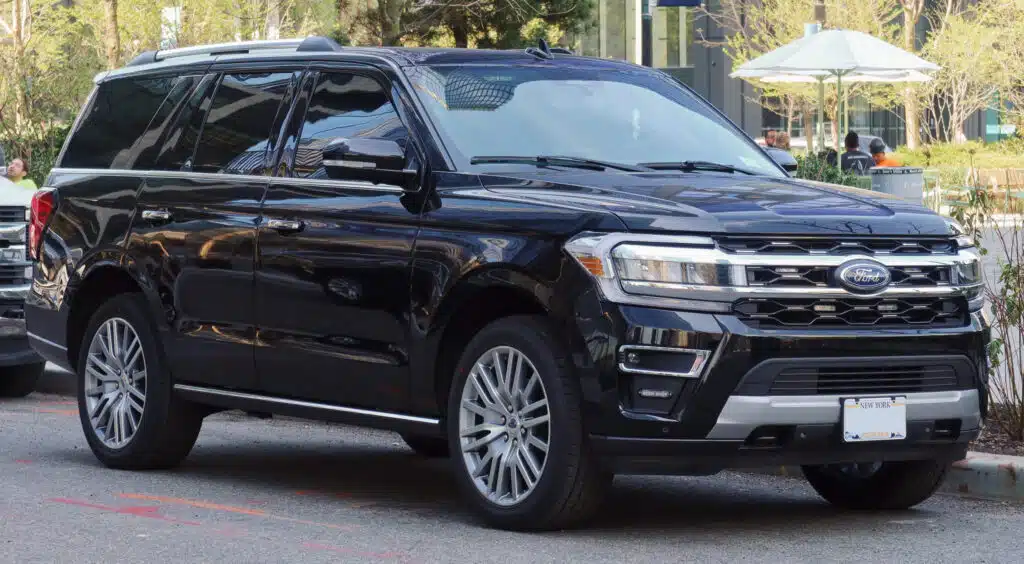

Ford Expedition (2003-2023)
- Full-size SUV platform shared between brands
- Built for heavy-duty towing and passenger comfort
- Compatible with various wheel widths and offsets
- Often used for both urban luxury and utility purposes
Toyota Tundra (1999-2023)
- Full-size pickup truck platform
- Engineered for durability and heavy loads
- Shares wheel compatibility with Land Cruiser models
- Popular for both work and recreational use
This pattern is designed for larger vehicles requiring superior stability and load-bearing capacity, making it ideal for premium SUVs and full-size trucks.
Installing 5×150 Bolt Pattern Wheels
Before beginning installation, ensure you have a lug wrench, torque wrench, car jack, and jack stands.
First, park your vehicle on a level surface and engage the parking brake. Loosen the lug nuts while the wheel is still on the ground, but don’t remove them completely.
Use the jack to lift the vehicle and place jack stands for safety. Remove the lug nuts and old wheels carefully.
When mounting new 5×150 wheels, align them precisely with the wheel studs and hand-thread the lug nuts. Lower the vehicle until the wheels touch the ground, then tighten the lug nuts in a star pattern to ensure even pressure distribution.
Follow your vehicle’s torque requirements, typically in the owner’s manual. Finally, lower the vehicle completely and perform a final torque check.
Avoid These Installation Mistakes
Several critical errors can compromise safety and performance when installing wheels on your Land Cruiser.
First, failing to verify your specific model’s bolt pattern (5×150 vs. 6×139.7) can lead to dangerous fitment issues, especially since different Land Cruiser generations use other patterns.
Never skip torque specifications when tightening lug nuts – use a star or cross pattern for even pressure distribution.
With larger wheels, overlooking the offset (particularly the recommended 0mm or ET0) can cause rubbing and stability issues.
For 300 series owners, attempting to fit wheels without proper brake clearance is dangerous – only specific wheels like the 17×8 Analog HD with ET25 will clear the brake assembly.
Lastly, neglecting to check for locking hubs on older 60-100 series models can lead to center cap fitment problems.
Future Trends in 5×150 Bolt Pattern Designs
Looking at market trends and manufacturing innovations, the 5×150 bolt pattern continues evolving, particularly in luxury SUVs and heavy-duty trucks.
Manufacturers increasingly focus on lightweight alloy materials while maintaining the pattern’s renowned strength and load-bearing capacity.
New wheel designs incorporate advanced aerodynamic features and improved brake cooling channels, especially important for vehicles like the Toyota Land Cruiser and Lexus LX series.
The trend toward larger wheel diameters (20-22 inches) is growing, though the traditional 17-18 inch sizes remain popular for off-road applications.
Digital manufacturing techniques enable more intricate spoke patterns and finish options while maintaining the structural integrity required for the 5×150 pattern’s typically heavy-duty applications.
These innovations are expanding style options while preserving the durability that made this bolt pattern a standard for premium SUVs.
5×150 vs. Other Bolt Patterns
The 5×150 bolt pattern stands distinct from more common patterns like 5×114.3 or 6×139.7 primarily in its heavy-duty applications and load-bearing capabilities.
Based on the provided text, this pattern is predominantly used in premium SUVs and larger vehicles like the Toyota Land Cruiser, Lexus LX series, and Ford Expedition. In contrast, smaller patterns typically serve lighter passenger vehicles.
The larger 150mm diameter spacing between opposing bolts provides enhanced stability and weight distribution compared to compact patterns, making it ideal for vehicles that carry heavier loads or tackle off-road conditions.
However, this specialization comes with limitations – the 5×150 pattern has fewer aftermarket wheel options than more universal patterns, and wheels tend to be more expensive due to their larger size and specific manufacturing requirements.
Unlike versatile patterns that might work across multiple vehicle categories, the 5×150 is specifically engineered for larger, more durable vehicles.
Benefits of the 5×150 Bolt Pattern
The 5×150 bolt pattern is a testament to engineering excellence in heavy-duty vehicle design.
Its mighty configuration has made it the preferred choice for premium SUVs and trucks, offering a perfect blend of strength and stability crucial for larger vehicles.
Let’s explore the specific advantages that make this pattern stand out:
- Superior Load Distribution: The wide 150mm spacing between opposite bolt holes creates an optimal circle formation that evenly disperses weight and stress across the entire wheel assembly, making it particularly effective for heavier vehicles like the Land Cruiser and Tundra.
- Enhanced Stability: The five-bolt configuration combined with the larger bolt circle diameter provides exceptional stability, which is crucial for vehicles that handle significant payload and off-road conditions. This pattern has proven reliable across multiple heavy-duty vehicle lines from Toyota, Lexus, and other manufacturers.
- Heavy-Duty Performance: The pattern’s design specifically caters to larger SUVs and trucks, offering better load-bearing capacity than smaller bolt patterns. This makes it ideal for vehicles like the Sequoia, Land Cruiser, and Lexus LX series that regularly handle substantial weight.
- Long-Term Durability: The spacing and configuration of the 5×150 pattern help minimize stress concentration on individual lug nuts, contributing to longer wheel life and more reliable performance under demanding conditions.
- Versatile Applications: Despite being less common than other patterns, 5×150 is used across multiple premium vehicle brands, including Toyota, Lexus, Ford, and Cadillac, indicating its trusted performance in high-end SUVs and trucks.
Conclusion
The 5×150 bolt pattern is a hallmark of automotive engineering excellence, particularly in heavy-duty vehicles and luxury SUVs.
Its dependable design, featuring five precisely spaced bolt holes at 150mm intervals, delivers unmatched stability and load distribution capabilities essential for demanding applications.
This pattern has proven worth across premium vehicle platforms, from the Toyota Land Cruiser to the Cadillac Escalade.
When selecting wheels with this configuration, remember that proper fitment isn’t just about matching patterns – it’s about ensuring your vehicle’s safety, performance, and longevity.
While the 5×150 pattern may limit aftermarket options compared to more common configurations, its superior engineering makes it an invaluable choice for vehicles that demand nothing but the best.
