Want to know the right bolt pattern for your Nissan Rogue?
I know how frustrating it can be to find the perfect wheels for your car. After spending hours searching online and visiting stores, you might still feel unsure about which bolt pattern fits your Rogue.
Trust me, I’ve been there – buying the wrong wheels is an expensive mistake.
But here’s the good news: I’ve put together this simple guide about Nissan Rogue bolt patterns.
I’ll share what I’ve learned about finding the right fit for your car. By the end of this blog, you’ll know exactly what to look for when shopping for new wheels.

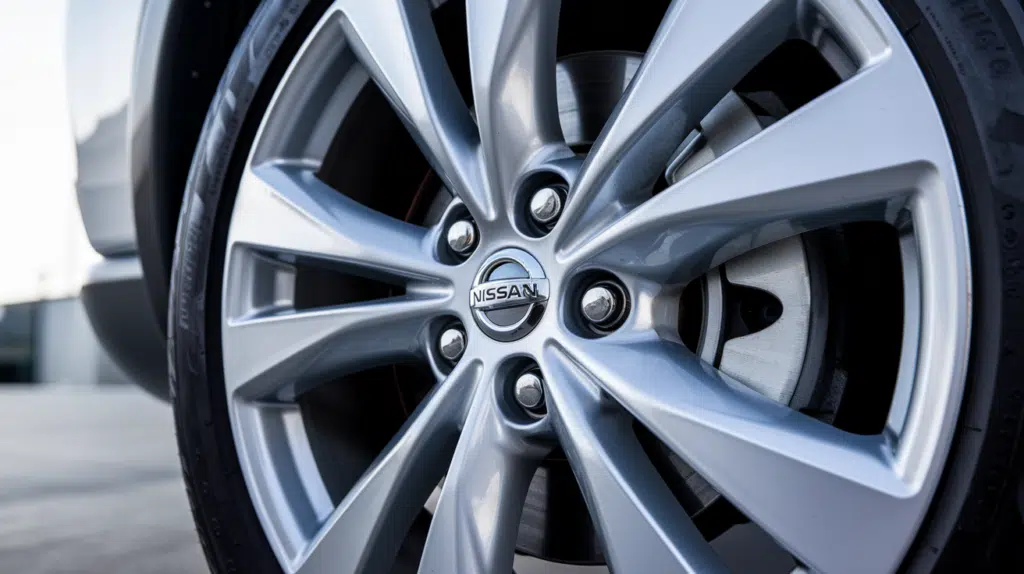

What Is the Bolt Pattern for A Nissan Rogue?
The Nissan Rogue features a 5×114.3 bolt pattern, 5×4.5 inches.
This means the wheels are secured with five lugs arranged in a circular pattern, with a diameter of 114.3 mm (4.5 inches).
This bolt pattern is consistent across all Rogue models, from its debut in 2008 to the most recent 2025 models.
The 5×114.3 configuration is widely used, giving you plenty of wheel options for customization.
If your desired wheels don’t match this pattern, wheel adapters can be used to convert them. Always ensure compatibility with the hub bore, wheel offset, and lug nut size for optimal safety and performance.

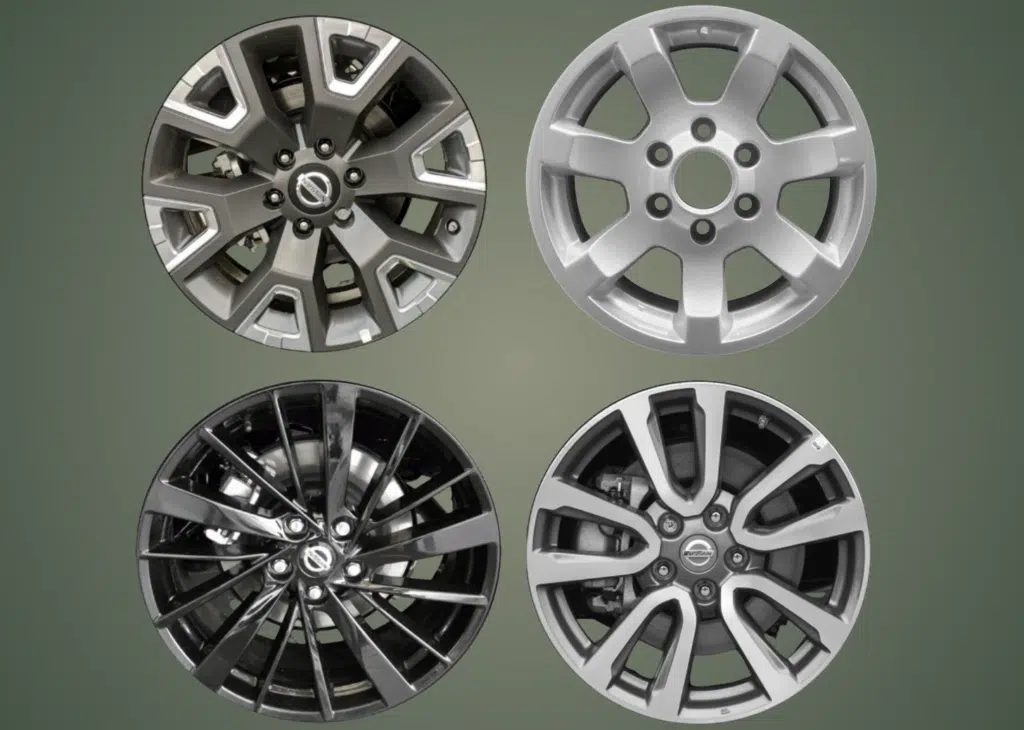

Nissan Rogue Bolt Patterns: Key Details and Compatibility
The bolt pattern of a Nissan Rogue plays a crucial role in determining the compatibility of wheels with your vehicle.
Here’s a detailed guide to understanding its specifications and ensuring a secure fit.
Why is Understanding the Bolt Pattern Important?
- Ensures that wheels fit securely on your Nissan Rogue.
- Prevents potential issues such as wheel wobbling or uneven wear.
- Provides a guide for selecting compatible aftermarket wheels.
1. Handling Wheel Compatibility Issues
- Use wheel adapters to convert mismatched bolt patterns.
- Verify the hub bore matches the 66.1 mm diameter of the Rogue.
- Ensure the wheel offset aligns with the car’s specifications.
- Always check the lug nut size (M12x1.25) and torque (113 Nm or 83.3 ft-lbs).
2. Additional Measurements for Compatibility
- Thread Size: M12x1.25.
- Hub Bore: 66.1 mm.
- Torque Specification: 113 Nm (83.3 ft-lbs).
- Lug Nut Socket Size: 21mm (13/16”).
Understanding these specifications helps you select wheels that ensure safety, performance, and style compatibility.
List of the Correct Bolt Pattern for a Different Nissan Model
| Nissan Model | Bolt Pattern | Hub Bore (mm) | Lug Nut Thread Size | Torque (Nm) |
|---|---|---|---|---|
| Nissan Rogue | 5×114.3 | 66.1 | M12x1.25 | 113 |
| Nissan Altima | 5×114.3 | 66.1 | M12x1.25 | 113 |
| Nissan Sentra | 4×114.3 | 66.1 | M12x1.25 | 113 |
| Nissan Pathfinder | 6×114.3 | 66.1 | M12x1.25 | 127 |
| Nissan Murano | 5×114.3 | 66.1 | M12x1.25 | 113 |
| Nissan Maxima | 5×114.3 | 66.1 | M12x1.25 | 113 |
| Nissan Frontier | 6×114.3 | 66.1 | M12x1.25 | 127 |
| Nissan Titan | 6×139.7 | 77.8 | M14x1.5 | 183 |
How to Identify the Correct Bolt Pattern for A Specific Nissan Model
Identifying the correct bolt pattern for your Nissan model is crucial for wheel compatibility and safety.
Here’s how you can determine it:
1. Refer to the Vehicle Manual
- The owner’s manual provides detailed specifications for your Nissan model, including the bolt pattern.
- It includes information on hub bore size, lug nut thread size, and torque specifications.
2. Check the Wheel Lug Configuration
- Count the number of lugs on the wheel hub (commonly 4, 5, or 6 for Nissan vehicles).
- Measure the distance between two non-adjacent lugs to determine the diameter of the bolt circle (e.g., 114.3 mm or 139.7 mm).
3. Use Online Resources or Databases
- Trusted automotive websites or the Nissan official website often list bolt patterns for specific models.
- Search for your model’s year and trim to ensure accurate results.
4. Consult a Professional
- Visit a certified mechanic or tire specialist to measure the bolt pattern accurately.
- Professionals can also advise on wheel offset, hub bore, and compatibility with aftermarket wheels.
5. Visual Inspection or Measurements
- A bolt pattern gauge is used to measure the lug placement and diameter directly.
- Alternatively, use a ruler or caliper to calculate the dimensions if a gauge is unavailable.
Knowing the bolt pattern ensures safe installation and compatibility with OEM or aftermarket wheels, preventing potential alignment or stability issues.
Comparisons Between Nissan Rogue and Other Brands’ Bolt Patterns
| Brand/Model | Bolt Pattern | Hub Bore (mm) | Lug Nut Thread Size | Torque (Nm) | Price Range (USD) |
|---|---|---|---|---|---|
| Nissan Rogue | 5×114.3 | 66.1 | M12x1.25 | 113 | $700 – $1,200 |
| Toyota RAV4 | 5×114.3 | 60.1 | M12x1.5 | 103 | $800 – $1,400 |
| Honda CR-V | 5×114.3 | 64.1 | M12x1.5 | 108 | $750 – $1,300 |
| Ford Escape | 5×108 | 63.4 | M12x1.5 | 110 | $800 – $1,250 |
| Hyundai Tucson | 5×114.3 | 67.1 | M12x1.5 | 110 | $850 – $1,200 |
| Chevrolet Equinox | 5×115 | 70.3 | M12x1.5 | 140 | $850 – $1,300 |
| Subaru Forester | 5×100 | 56.1 | M12x1.25 | 88 | $800 – $1,250 |
| Mazda CX-5 | 5×114.3 | 67.1 | M12x1.5 | 108 | $850 – $1,300 |
Signs that Your Nissan’s Bolt Pattern May Be Damaged
Identifying damage to your Nissan Rogue’s bolt pattern early is crucial to maintaining safety and performance. Here are some common signs to look out for:
- Loose or Uneven Lug Nuts: Frequent loosening or difficulty tightening lug nuts indicates potential damage.
- Vibrations While Driving: Unusual vibrations, especially at higher speeds, may result from an uneven or misaligned bolt pattern.
- Cracked or Warped Wheel Hub: Visible cracks or warping around the hub area can compromise the bolt pattern’s integrity.
- Uneven Tire Wear: Irregular tread patterns on tires could point to alignment issues caused by bolt pattern damage.
- Difficulty Installing Wheels: Struggling to fit wheels securely suggests that the bolt holes may be misaligned or worn out.
By recognizing these signs early and addressing them promptly, you can prevent further damage and ensure your Nissan Rogue remains safe to drive.
Tips for Maintaining Your Nissan Rogue’s Bolt Patterns
Regularly Inspect Wheel Lug Nuts:
- Ensure lug nuts are properly tightened to the recommended torque specification of 113 Nm (83.3 ft-lbs).
- Over-tightening or under-tightening can lead to uneven pressure, affecting the bolt pattern.
Keep the Wheel Hub Clean:
- Remove dirt, rust, or debris from the hub and bolts regularly.
- A clean hub ensures secure contact between the wheel and bolts, preventing alignment issues.
Use Compatible Wheels and Accessories:
- Always choose wheels that match the 5×114.3 bolt pattern and 66.1 mm hub bore.
- Avoid using mismatched accessories, which can strain the bolts and compromise safety.
Check Lug Nuts After Wheel Changes:
- After replacing or rotating wheels, recheck lug nut torque after driving for about 50-100 miles.
- This ensures the bolts are still secure and evenly tightened.
Avoid Excessive Wheel Load:
- Do not overload your Nissan Rogue with weight beyond its capacity.
- Excessive weight can put undue stress on the bolts, potentially warping the pattern over time.
Use High-Quality Bolts and Lug Nuts:
- Invest in durable, corrosion-resistant bolts and nuts.
- High-quality components extend the life of the bolt pattern and improve overall wheel safety.
By following these tips, you can ensure the longevity and reliability of your Nissan Rogue’s bolt pattern and maintain optimal wheel performance.
Wrapping It Up
Now, you have all the key information about Nissan Rogue bolt patterns at your fingertips.
Finding the right pattern isn’t just about measurements – it’s about keeping your car safe and running well.
I’ve shared details about different model years, compatibility options, and ways to check your bolt pattern. With this knowledge, you can make smart choices when buying new wheels for your Rogue.
Remember to check your owner’s manual and measure twice before making a purchase.
Regular maintenance of your wheel bolts will help keep your Rogue running smoothly for years to come.
