    The Correct Lug Pattern for Chevy Wheels

    David AllisterBy David AllisterMarch 17, 202511 Mins Read
    Facebook Twitter Pinterest LinkedIn WhatsApp Reddit Tumblr Email
    The Correct Lug Pattern for Chevy Wheels
    Share
    Facebook Twitter LinkedIn Pinterest Email

    Knowing the correct lug pattern is essential if you’re considering upgrading or replacing the wheels on your Chevy.

    The lug pattern determines how the wheel fits onto your car and ensures it is securely attached. If the lug pattern doesn’t match, the wheels won’t fit properly, which can cause safety issues.

    In this blog, I’ll explain the lug pattern for Chevy wheels and why it’s so important. I’ll also show you how to measure the lug pattern yourself and share tips on choosing the right wheels that match.

    By the end of this post, you’ll be able to pick the perfect wheels for your Chevy with confidence. Let’s get started!

    What is a Lug Pattern?

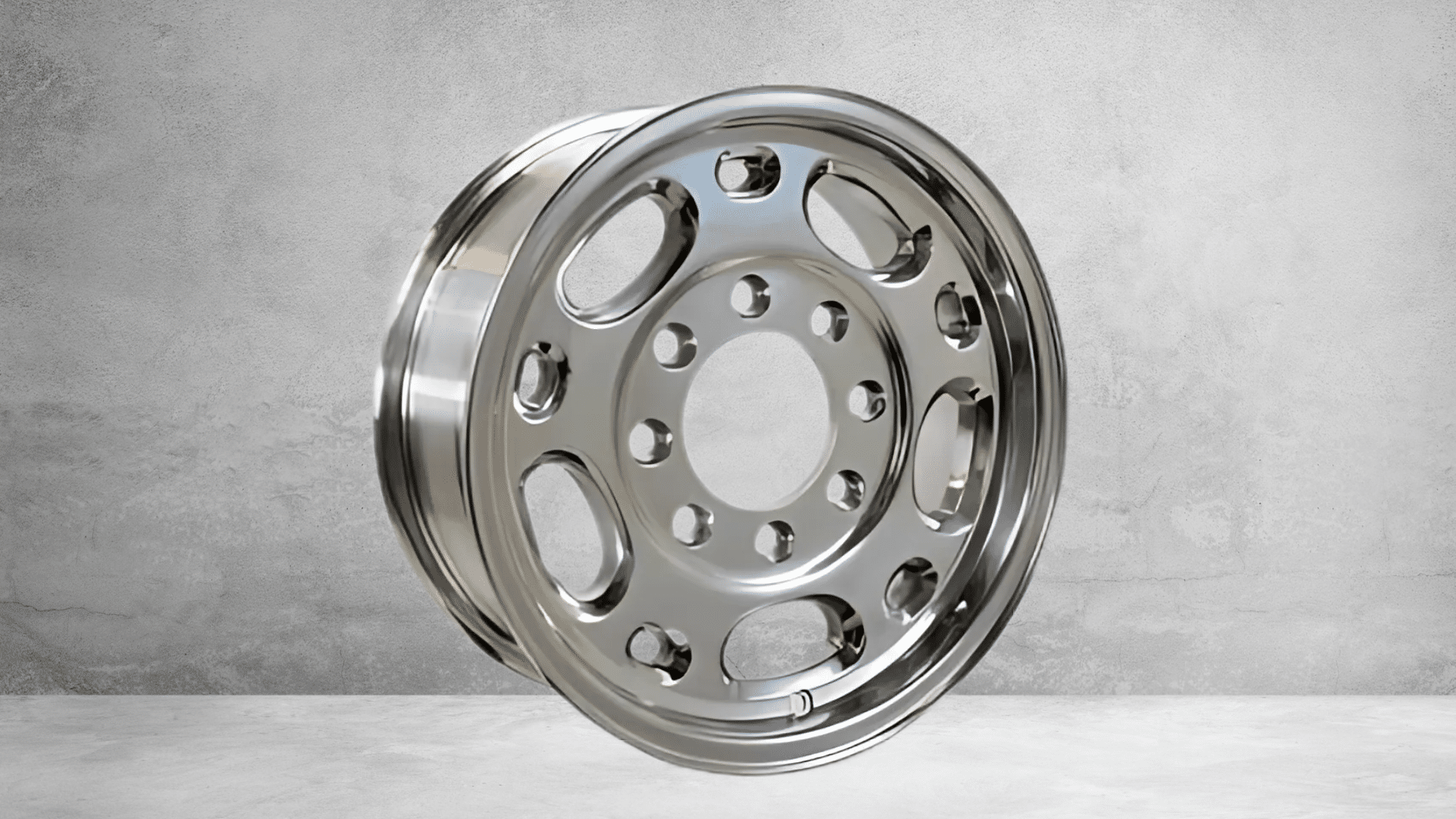

    What_is_a_Lug_Pattern

    Understanding the Basics of Lug Patterns

    A lug pattern, also called a bolt pattern, is the arrangement of bolts on a wheel. It describes how many bolts the wheel has and the distance between the center of one bolt hole to the center of the next.

    This pattern is essential because it determines how the wheel fits onto the vehicle’s wheel hub. For example, if your Chevy has a 5x120mm lug pattern, it means there are 5 bolt holes, and the distance between the centers of two adjacent bolt holes is 120mm.

    The lug pattern is the first thing you should check when purchasing new wheels, as it ensures that the wheels attach securely and properly.

    Why is the Lug Pattern Important?

    The lug pattern is vital for several reasons:

    • Proper Fitment: The right lug pattern ensures that the wheel fits securely on the vehicle’s hub. If the pattern doesn’t match, the wheel won’t fit properly, which can lead to alignment problems, poor handling, and even damage to the vehicle.
    • Safety: Incorrect lug patterns can cause the wheel to come loose, especially when driving at high speeds. This is a major safety concern and can result in accidents or damage to the car.
    • Vehicle Performance: When the right lug pattern is used, the wheels sit properly and stay balanced, which ensures smooth and stable driving. A mismatched pattern can lead to vibrations, poor handling, and uneven tire wear.

    Common Lug Patterns Used in Chevys

    Chevy vehicles use a variety of lug patterns depending on the model, year, and trim. Some of the most common Chevy lug patterns:

    • 5x120mm: This is one of the most common lug patterns for Chevy vehicles, especially for larger cars and trucks like the Chevy Impala, Camaro, and Traverse.
    • 6×139.7mm: Found in many Chevy trucks and SUVs, like the Chevy Silverado and Suburban.
    • 5×114.3mm: Used in some Chevy models like the Malibu and Equinox.
    • 5x100mm: This is used in some smaller Chevy models, such as the Aveo.

    Knowing which lug pattern your Chevy uses is essential to ensure you buy the correct wheels. The owner’s manual or a quick online search can help confirm your vehicle’s bolt pattern.

    How to Measure the Lug Pattern for Your Chevy

    If you’re unsure about your vehicle’s lug pattern, you can easily measure it yourself.

    1. Count the Number of Lug Holes

    The first step is to count the number of lug holes on your current wheels. Most Chevys use a 5-bolt or 6-bolt pattern, but some smaller models may have fewer.

    See also  Toxic Wheels: What You Need to Know Before Buying

    To check, look at the wheel and count the number of bolt holes around the center. If you count 5 holes, your vehicle likely uses a 5-bolt pattern. If you count 6 holes, your Chevy likely uses a 6-bolt pattern.

    2. Measure the Distance Between Bolt Holes

    Once you’ve counted the number of bolt holes, you need to measure the distance between two adjacent holes. This will tell you the size of the lug pattern.

    For vehicles with a 5-bolt pattern, measure the distance from the center of one bolt hole to the center of the next. For 6-bolt patterns, measure the distance between two adjacent holes.

    There are two ways to measure this:

    • Bolt-to-Bolt Measurement: Measure the distance from the center of one bolt hole to the center of the next. For 5x120mm, this distance will be 120mm.

    • Diameter of a Circle Measurement: For 5-bolt patterns, measure the distance from the center of a bolt hole to the center of the bolt hole directly opposite (diagonally). This is called the diameter method. For a 6-bolt pattern, measure from the center of one bolt hole to the opposite bolt hole.

    3. Double-Check and Verify

    After measuring, double-check your measurements and confirm they match the lug pattern for your Chevy. If you’re unsure, you can always consult your car’s manual or use an online tool for verification.

    Chevy Lug Patterns for Different Models

    Chevy Silverado (2000-Present)

    The Chevy Silverado typically uses a 6×139.7mm bolt pattern. This pattern is common in many Chevy trucks, including the Chevy Suburban and Chevy Tahoe. The 6×139.7mm pattern is great for larger, heavier-duty wheels that are needed for trucks.

    • Bolt Pattern: 6×139.7mm
    • Wheel Size: Typically 16-20 inches
    • Hub Bore Size: 78.1mm

    Chevy Malibu (2004-Present)

    Depending on the trim, the Chevy Malibu often uses a 5x115mm or 5×114.3mm bolt pattern. Make sure to verify the exact pattern before purchasing new wheels for a Malibu.

    • Bolt Pattern: 5x115mm or 5×114.3mm (varies by trim)
    • Wheel Size: Typically 16-18 inches
    • Hub Bore Size: 65.1mm

    Chevy Equinox (2005-Present)

    The Chevy Equinox typically uses a 5x120mm bolt pattern. This pattern is common among mid-size vehicles and offers a good balance between wheel strength and handling performance.

    • Bolt Pattern: 5x120mm
    • Wheel Size: Typically 17-19 inches
    • Hub Bore Size: 66.9mm

    Chevy Camaro (2010-Present)

    The Chevy Camaro often uses a 5x120mm bolt pattern, which is common in performance vehicles. It’s important to check your vehicle’s exact specifications to make sure the new wheels will fit properly.

    • Bolt Pattern: 5x120mm
    • Wheel Size: Typically 18-20 inches
    • Hub Bore Size: 70.3mm

    Chevy Traverse (2009-Present)

    The Chevy Traverse typically uses a 5x120mm bolt pattern. This pattern is common for larger sedans and SUVs like the Traverse, Impala, and Malibu.

    • Bolt Pattern: 5x120mm
    • Wheel Size: Typically 18-20 inches
    • Hub Bore Size: 78.1mm

    How to Choose the Right Wheels for Your Chevy

    Ensure the Correct Bolt Pattern

    The most important step when choosing new wheels for your Chevy is to make sure they match the correct bolt pattern. If your vehicle uses a 5x120mm bolt pattern, make sure the wheels you buy have the same pattern.

    See also  Understanding the Specifications of 4x100 Wheels

    Check Hub Bore Size

    In addition to the lug pattern, you’ll also need to check the hub bore size. The hub bore is the hole in the center of the wheel that fits onto the vehicle’s hub. If the hub bore is too small or too large, the wheel will not sit properly, leading to vibrations and potential safety issues.

    Consider Wheel Size

    Next, consider the wheel size. Most Chevy vehicles can handle wheels from 16 to 20 inches, but it’s important to verify what size fits your specific model. Check the manufacturer’s recommendations for maximum and minimum wheel sizes.

    Verify Offset

    Another important factor is the wheel’s offset. Offset refers to the distance between the wheel’s centerline and the hub mounting surface. The correct offset ensures that the wheel sits in the proper position, preventing rubbing against the suspension or fenders.

    Check Tire Compatibility

    Finally, make sure your tires are compatible with the new wheels. Check the tires’ diameter, width, and load rating to ensure they fit properly and can handle your vehicle’s weight.

    Comparison of the Chevy Lug Pattern with Other Vehicles

    Vehicle Model Bolt Pattern Wheel Size Range Hub Bore Size Other Notes
    Chevrolet Silverado 6×139.7mm 16-20 inches 78.1mm Common in Chevy trucks and SUVs
    Chevrolet Malibu 5x115mm 16-18 inches 70.3mm Compatible with some smaller Chevy models
    Chevrolet Camaro 5x120mm 18-20 inches 70.3mm Performance vehicle, common 5x120mm pattern
    Chevrolet Equinox 5x120mm 17-19 inches 66.9mm Popular SUV with a 5x120mm bolt pattern
    Chevrolet Traverse 5x120mm 18-20 inches 78.1mm Mid-size SUV, same bolt pattern as Malibu
    Ford F-150 6x135mm 17-20 inches 87.1mm Different bolt pattern, not compatible
    Toyota Tacoma 6×139.7mm 16-18 inches 106mm Same bolt pattern as Silverado, compatible
    Dodge Ram 1500 5×139.7mm 17-20 inches 78.1mm Slightly different requires adapters for direct swap
    Nissan Titan 6×139.7mm 17-20 inches 78.1mm Compatible with Chevy Silverado wheels
    Honda Accord 5×114.3mm 16-18 inches 64mm Different bolt pattern, not directly compatible

    Key Takeaways:

    • Chevy vehicles like the Silverado, Equinox, and Traverse commonly use 5x120mm or 6×139.7mm bolt patterns.
    • Ford F-150 and Dodge Ram 1500 use a different bolt pattern (6x135mm and 5×139.7mm, respectively), so they are not directly compatible with Chevy models.
    • Vehicles like the Toyota Tacoma and Nissan Titan use the 6×139.7mm bolt pattern, which is compatible with Chevy trucks like the Silverado. Always verify other specifications like hub bore size and wheel offset when swapping wheels.

    How to Maintain the Lug Pattern on Your Chevy

    Regularly Check the Tightness of the Lug Nuts

    After installing your new wheels, it’s essential to check the tightness of the lug nuts regularly. Over time, vibrations from driving can cause the lug nuts to loosen, which can lead to poor alignment and even cause the wheels to come off.

    • Tip: After installing the wheels, use a torque wrench to tighten the lug nuts to the manufacturer’s recommended torque. Recheck the tightness after driving a short distance.

    Clean the Hub and Wheel Area

    Dirt, rust, and debris can build up around the hub and the lug holes, which may prevent the wheels from sitting properly. Keeping the wheel and hub clean ensures a secure fit and avoids issues with wheel alignment.

    • Tip: Use a wire brush or cloth to clean the hub and bolt areas before installing new wheels.
    See also  What Is Brake Scrubbing and How to Fix It?

    Inspect for Wear

    Regularly inspect your lug nuts and bolts for signs of wear or damage. Damaged or worn lug nuts can cause the wheels to be poorly attached, leading to vibrations or misalignment.

    • Tip: Replace any damaged or worn-out lug nuts and bolts immediately to maintain proper wheel fitment.

    Common Mistakes to Avoid

    • Using the Wrong Bolt Pattern: One of the most common mistakes is purchasing wheels with the wrong bolt pattern. Make sure your new wheels match your Chevy’s bolt pattern exactly.
    • Ignoring the Hub Bore Size: If the hub bore size doesn’t match, the wheel won’t fit securely on the vehicle’s hub, which can cause vibrations and poor fitment. Always verify the hub bore size before buying new wheels.
    • Not Checking the Offset: If the wheel’s offset is wrong, it can cause rubbing against suspension components or fenders. Always check the recommended offset for your vehicle.
    • Over-tightening the Lug Nuts: Over-tightening the lug nuts can damage the threads and affect future wheel installations. Use a torque wrench to tighten the lug nuts to the proper specification.
    • Choosing the Wrong Wheel Size: Make sure the new wheels are the correct size for your Chevy. Too large or too small wheels can affect handling and tire clearance.

    Conclusion

    Understanding the correct lug pattern for your Chevy is essential for selecting the right wheels. Depending on the model and year, the most common lug patterns for Chevy vehicles are 5x115mm, 5x120mm, and 6×139.7mm.

    Matching the correct bolt pattern is important to ensure the wheels fit securely on your vehicle. Using the wrong lug pattern can cause safety issues and performance problems, like vibrations or misalignment.

    Always verify the lug pattern, hub bore size, wheel size, and offset when choosing new wheels to ensure everything is compatible with your Chevy. Following these guidelines can avoid costly mistakes and ensure your wheels fit correctly.

    This will keep your Chevy running smoothly and safely, whether upgrading your wheels or replacing them.

    Frequently Asked Questions

    Can I use alloy wheels on my Chevy if it has steel wheels?

    Yes, you can swap steel wheels for alloy wheels as long as the lug pattern, hub bore size, and wheel size are the same. Just make sure all specifications are compatible.

    Can I use wheels with a different lug pattern on my Chevy?

    If the lug pattern is different, you can use adapters to make the wheels fit. However, for optimal safety and performance, it’s better to choose wheels that match the vehicle’s bolt pattern.

    How do I know if my new wheels will fit my Chevy?

    To ensure your new wheels fit, check the lug pattern, hub bore size, wheel size, and offset. The wheels should fit properly if all these match your Chevy’s specifications.
