Finding the right stud pattern for your Ford Ranger can feel like searching for a needle in a haystack. Whether you’re replacing wheels or adding custom rims, you need to know your truck’s exact bolt pattern to get it right.
In this guide, I’ll walk you through everything about the Ford Ranger’s stud pattern, from the classic models to the latest releases. You’ll learn which wheels fit your specific year and model, plus some common mistakes to avoid.
As a mechanic who’s worked on hundreds of Rangers, I know the frustration of ordering the wrong wheels. I’ve put together this straightforward guide to save you time and money.
No more guessing or relying on confusing forum posts. By the end of this article, you’ll know exactly what bolt pattern your Ranger needs and how to measure it yourself.

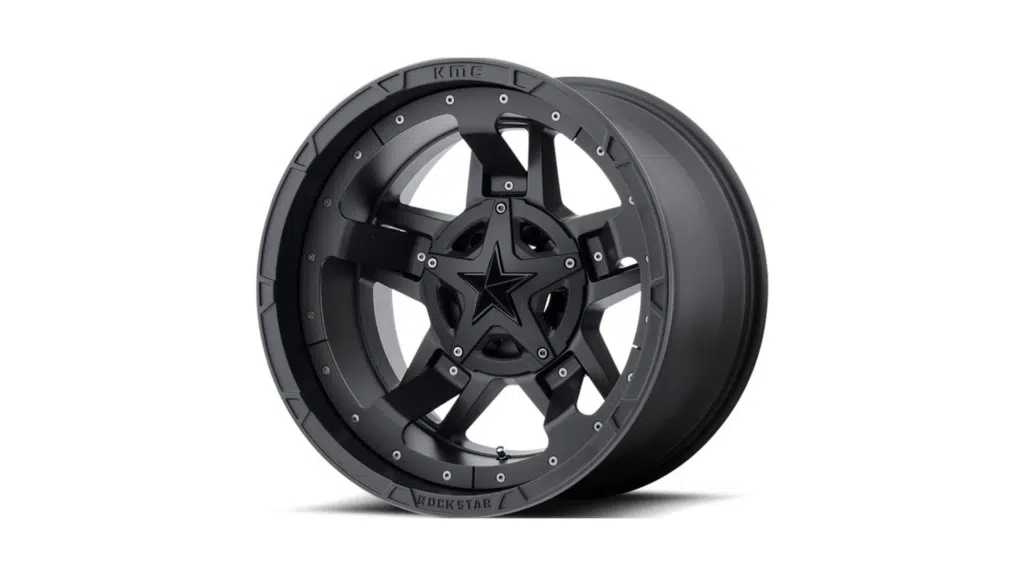

What is a Stud Pattern?
A stud pattern (also called a bolt pattern) is how lug nuts are arranged on your wheel. Think of it as a circle of bolts that hold your wheel to your truck.
Put simply, your stud pattern is like a fingerprint that ensures your wheels match your Ranger perfectly. It’s the key measurement that determines which wheels will fit your truck safely and which ones won’t.
When I talk about stud patterns, I’m really talking about two key things:
1. The number of lugs
This is how many bolts hold your wheel on. Your Ford Ranger will have either 5 or 6 lugs, depending on its year and model.
2. The bolt circle
This measures the distance between lugs across from each other. I like to picture it as drawing a circle through the center of each lug hole.
Let’s make this super clear: If someone says “5×114.3,” they mean a wheel with 5 lugs spaced in a circle that’s 114.3mm across. That’s all there is to it.
Why does this matter to you? Because putting the wrong wheels on your Ranger is like trying to fit square pegs in round holes
it just won’t work. The right stud pattern keeps your wheels firmly attached and ensures they run true without any wobble or vibration.
Ford Ranger’s Standard Stud Pattern
The Ford Ranger’s stud pattern has changed over the years, but I’ll break it down by generation to keep things simple.
1. Modern Rangers (2019-Present)
The current Ranger uses a 6×139.7mm pattern. This means 6 lugs arranged in a circle that’s 139.7mm in diameter. It’s the same pattern you’ll find on many modern trucks.
2. Previous Generation (1983-2012)
These Rangers came with a 5×114.3mm pattern. If you’ve got one of these trucks, you’re looking at 5 lugs spaced around a 114.3mm circle.
Important Note: Switching between these patterns isn’t possible without major modifications. Your hub assembly is designed specifically for one pattern or the other.
Here’s a quick tip: If you’re not sure which pattern you have, count the lug nuts. That’s your first clue – 5 or 6 lugs will tell you exactly which generation your Ranger belongs to.
Remember: Even if the bolt pattern matches, you still need to check other measurements like center bore and offset before buying new wheels.
Understanding Bolt Patterns and Their Variations
Let’s break down how bolt patterns can differ, even when they sound similar. This can save you from making an expensive mistake.
The pattern isn’t just about the number of lugs – the spacing has to be exact. Here’s what you need to know about
Common Variations
1. 5-Lug Patterns
The 5×114.3mm pattern on older Rangers might sound close to a 5x115mm pattern, but that tiny 0.7mm difference means your wheel won’t fit properly. Even this small mismatch can cause dangerous vibrations.
2. 6-Lug Patterns
Modern Rangers use 6×139.7mm, which is sometimes called 6×5.5 inches in old-school measurements. Don’t mix these up with similar patterns like 6x135mm – they’re not interchangeable.
3. How to Measure Your Pattern
If you want to double-check your pattern:
- For 5-lug wheels: Measure from the center of one lug to the center of the lug directly across.
- For 6-lug wheels: Measure from the center of one lug to the center of the lug three holes over.
Pro tip: When measuring, don’t guess or round up numbers. Being off by even a few millimeters can mean the difference between a perfect fit and wheels that won’t mount at all.
How to Choose the Right Wheels for Your Ford Ranger
Choosing new wheels for your Ranger doesn’t have to be complicated. Here’s what I look at when helping truck owners pick the right set.
1. Start with Your Year
First, know your Ranger’s year. This tells you whether you need:
- 6×139.7mm. (2019-present models)
- 5×114.3mm. (1983-2012 models)
2. Check These Critical Measurements
Beyond the bolt pattern, you’ll need to match:
- Center bore – The hole in the middle of the wheel
- Wheel offset – How far your wheel sits in or out from the hub
- Load rating – Make sure it can handle your truck’s weight
3. Watch Out for These Common Mistakes
Don’t rush into buying wheels just because they look good. I’ve seen people get burned by:
- Assuming all Rangers use the same pattern
- Forgetting to check the center bore size
- Picking wheels with the wrong offset
4. Size Matters
Your Ranger can handle different wheel sizes, but stay within reason. Too big, and you’ll rub against your fenders. Too small, and your truck’s performance will suffer.
Pro tip: If you’re stuck between choices, go with the wheel size that came stock on your truck. It’s the safest bet for perfect fitment and performance.
Conclusion
Finding the right wheels for your Ford Ranger comes down to knowing your stud pattern and a few key measurements.
Whether you’ve got a modern Ranger with its 6×139.7mm pattern or an older model running the 5×114.3mm setup, you now have all the information needed to make the right choice.
Remember, there’s no room for guesswork when it comes to wheel fitment – one wrong measurement can lead to unsafe driving conditions and costly mistakes.
Take your time, double-check your measurements, and don’t hesitate to consult with a professional if you’re unsure. With the right wheels properly mounted, your Ranger will keep rolling safely for years to come.
Frequently Asked Questions
Can I use wheel adapters to change my Ranger’s bolt pattern?
While adapters exist, I don’t recommend using them. They can create safety issues and affect your truck’s handling. It’s better to stick with wheels that match your factory bolt pattern.
Will my 2010 Ranger wheels fit on a 2020 model?
No, they won’t fit. The 2010 Ranger uses a 5×114.3mm pattern, while the 2020 model has a 6×139.7mm pattern. These patterns are not interchangeable without major modifications.
How do I measure my Ranger’s bolt pattern without special tools?
For a 5-lug pattern, measure from the center of one lug to the center of the lug directly across. For 6-lug patterns, measure from the center of one lug to the center of the lug three holes over. A simple tape measure will work.
What happens if I install wheels with the wrong bolt pattern?
Never install wheels with the wrong bolt pattern. This is extremely dangerous as the wheels won’t mount properly, leading to vibration, wobbling, and possible wheel detachment while driving.
Are aftermarket wheels safe for my Ranger?
Yes, aftermarket wheels are safe as long as they match your truck’s specifications. Make sure they have the correct bolt pattern, load rating, and offset for your specific model year. Stick with reputable brands for the best quality and safety.
