Ever wondered why your Nissan Navara’s wheel studs matter so much? You’re not alone. Whether you’re looking to swap out those factory wheels or need to know the right pattern for replacements, I’ve got you covered.
In this guide, I’ll walk you through everything about your Navara stud pattern – from understanding the basic measurements to picking the perfect wheels: no more guessing games or risky purchases.
As a mechanic who’s worked on hundreds of Navaras, I know firsthand how frustrating it can be to get this wrong. That’s why I’ve put together this straightforward guide with all the details you need.
By the time you finish reading, you’ll know exactly what stud pattern your Navara needs and why it matters for your truck’s safety and performance.

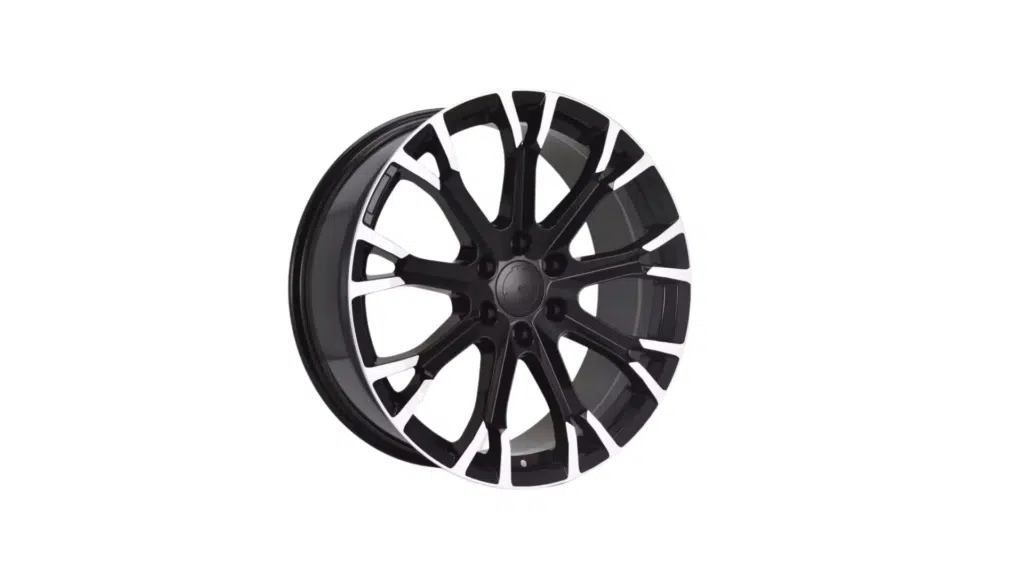

What is a Stud Pattern?
It looks like you’re curious about stud patterns. Here’s something interesting – it’s the same thing as a bolt pattern!
Think of it this way: Some vehicles use studs (the posts that stick out), while others use bolts (the ones you screw in). But the pattern itself? Exactly the same idea.
Let me break it down real quick:
- When we say “stud pattern,” we’re talking about those threaded posts sticking out of your hub
- They match up perfectly with the holes in your wheel
- Just like bolt patterns, they’re measured by the number of studs and the circle they make
Here’s a cool fact: Whether you call it a stud pattern or bolt pattern often depends on where you’re from. Kind of like saying “soda” or “pop” – same thing, different name!
The important part for you? When you’re shopping for wheels, you can use either term. Dealers and mechanics will know exactly what you mean.
Quick tip: If your car has studs, you’ll need lug nuts. If it has bolt holes, you’ll need lug bolts. But the pattern measurement stays the same either way!
Nissan Navara Stud Pattern Details
Let me share the exact specs your Navara needs. Most Navara models use a 6×139.7mm stud pattern, but knowing your specific year really helps.
1. D40 Models (2005-2015)
- Stud Pattern: 6×139.7mm.
- Center Bore: 100mm.
- Wheel Studs: M12x1.25.
- Factory Wheel Sizes: 16-inch to 18-inch.
2. D23 Models (2015-Present)
- Stud Pattern: 6×139.7mm.
- Center Bore: 100mm.
- Wheel Studs: M12x1.25.
- Factory Wheel Sizes: 16-inch to 18-inch.
3. NP300 Models
- Stud Pattern: 6×139.7mm
- Center Bore: 100mm
- Wheel Studs: M12x1.25
- Factory Wheel Sizes: 16-inch to 18-inch
Pro tip: While all these models share the same stud pattern, always check your specific variant. Things like ST, ST-X, or PRO-4X packages might come with different wheel sizes, even though the stud pattern stays the same.
How to Measure Your Vehicle’s Stud Pattern
Need to double-check your Navara’s stud pattern? Here’s a simple guide to measure it yourself.
What You’ll Need
- Measuring tape or ruler
- Paper and pencil
- Clean wheel hub (for easier measuring)
Method 1: Center-to-Center
This is the easiest way for your 6-stud Navara:
- Find two studs directly across from each other
- Measure from the center of one stud to the center of the opposite stud
- Your measurement should be close to 139.7mm
Method 2: Circle Diameter
For extra accuracy:
- Clean your wheel hub
- Measure from the outside edge of one stud to the center of the hub
- Double this measurement
- You should get about 139.7mm
Common Mistakes to Avoid
- Don’t measure from the outside of studs
- Don’t guess or eyeball it
- Don’t skip cleaning the hub
- Don’t forget to measure in millimeters
Pro tip: If you’re not confident about your measurements, I recommend taking a photo of your hub and wheel to your local tire shop. They can confirm the exact pattern for you.
When in Doubt
Always double-check these measurements before buying new wheels. Getting it wrong can cost you time and money.
Common Issues with Incorrect Stud Patterns
Let me share what can go wrong when stud patterns don’t match. I’ve seen these issues firsthand, and they’re all avoidable.
1. Safety Risks
- Wheels won’t sit flush against the hub
- Uneven weight distribution
- Increased risk of wheel detachment
- Dangerous vibrations at high speeds
2. Damage to Your Navara
Here’s what can get damaged:
- Wheel studs can bend or snap
- Hub assembly might get warped
- Wheel bearings can wear unevenly
- Brake rotors might get stressed
3. Installation Problems
You’ll notice these right away:
- Wheels won’t fit over the studs
- Mounting holes won’t line up
- Centering rings might not match
- Wheel nuts won’t tighten properly
4. Financial Impact
Making the wrong choice can hit your wallet:
- Wasted money on incorrect wheels
- Return shipping costs
- Potential vehicle damage repairs
- Lost time getting it fixed
Pro tip: If you feel any vibration or wobble after installing new wheels, don’t drive the truck. Get it checked immediately. Better safe than sorry.
Upgrading or Changing Wheels on a Nissan Navara
Thinking about new wheels for your Navara? Let me guide you through what really matters.
1. Factory vs. Aftermarket
Here’s what you need to consider:
- Factory wheels are guaranteed to fit
- Aftermarket gives you more style options
- Both need to match the 6×139.7mm pattern
- Price ranges vary significantly
2. Important Measurements
When picking new wheels, check these specs:
- Stud pattern. (6×139.7mm)
- Offset. (ranges from +30 to +45)
- Center bore. (100mm)
- Width. (usually 7 to 9 inches)
- Diameter. (16 to 20 inches)
3. Common Upgrades
Popular wheel setups include:
- 17×8 for better off-road grip
- 18×8 for improved street looks
- 20×9 for maximum visual impact
4. What to Watch Out For
- Larger wheels need proper tire sizing
- Check your wheel arch clearance
- Consider your driving needs
- Keep load ratings in mind
Pro tip: If you’re going bigger than factory size, I recommend consulting a wheel specialist. They can help you avoid clearance issues and ensure proper fitment.
5. Final Check
Always verify your new wheels:
- Load rating matches your needs
- Offset works with your model
- Tire availability in your size
- Warranty coverage terms
Conclusion
Getting your Navara’s stud pattern right is crucial for both safety and performance. The 6×139.7mm pattern might seem like just a number, but it’s the key to proper wheel fitment for your truck.
Whether you’re replacing worn wheels or upgrading to a new style, knowing your stud pattern helps you make smart choices and avoid costly mistakes.
I’ve seen how the right wheels can transform a Navara’s look and performance, but I’ve also seen the headaches that come from mismatched patterns.
Remember, your truck’s stud pattern isn’t just about measurements – it’s about keeping you safe on the road and protecting your investment.
Take the time to verify your measurements, especially when going aftermarket. It’ll save you money, time, and potential safety issues down the road.
If you’re ever unsure, don’t hesitate to consult with a professional. After all, when it comes to your Navara’s wheels, it’s better to measure twice and buy once.
Frequently Asked Questions
Can I use wheels with a different stud pattern on my Navara?
No, you can’t safely use wheels with a different pattern. Your Navara’s 6×139.7mm pattern must match exactly. While adapters exist, they’re not recommended as they can compromise safety and handling.
Will all 6×139.7mm wheels fit my Navara?
Not necessarily. While the stud pattern might match, you also need to check:
- Wheel offset
- Center bore size
- Load rating
- Overall wheel width
Can I convert my Navara to a different stud pattern?
It’s possible but not recommended. Converting would require replacing hubs, rotors, and possibly other components. The cost and complexity make it impractical for most owners.
Do all Navara models have the same stud pattern?
Yes, modern Navaras (D40, D23, and NP300) all use the 6×139.7mm pattern. This consistency makes it easier to find compatible wheels across different model years.
What happens if I get the stud pattern wrong?
The wheels won’t fit properly. You might notice:
- Inability to mount the wheel
- Unsafe fitment
- Vibration and wobbling
- Risk of wheel detachment
