In this blog, I’m going to show you everything about Toyota Corolla bolt patterns. You’ll learn what they are, why they matter, and how to match them correctly for your wheels.
I’ve spent over 15 years working with cars and helped thousands of Corolla owners find the right wheel fit.
My knowledge comes from hands-on experience at the shop, where I’ve dealt with every Corolla model since 1990.
Let’s get started and make sure you get the perfect wheel fit for your Corolla.
What Is the Bolt Pattern for A Corolla?
The bolt pattern is a vital specification for ensuring the correct fitment of wheels on your Corolla.
It determines the placement of lug holes and the diameter of the circle they form, ensuring proper alignment and performance.
1. Standard Bolt Pattern:
Most Toyota Corolla models feature a 5x100mm bolt pattern, which consists of five lugs arranged in a circle with a 100mm diameter.
2. GR Corolla Variations:
The GR Corolla, a performance-oriented model, uses a 5×114.3mm bolt pattern, offering increased stability for sportier driving.
3. Trim and Year-Specific Variations:
Some older Corollas (pre-2003 models) may have 4x100mm bolt patterns, making it crucial to verify your specific model.
Why It Matters:
Using the correct bolt pattern ensures a snug fit for your wheels, reduces vibrations, and prevents potential damage to the suspension system.
Tools to Confirm:
Reference your owner’s manual or use a bolt pattern measurement guide to verify the correct specification.

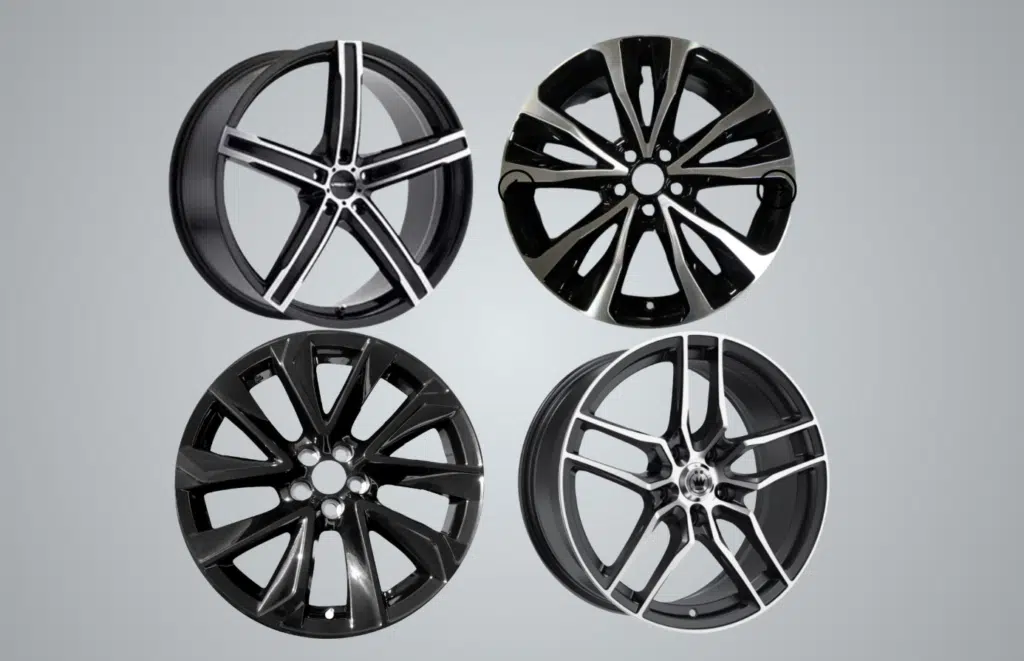

Understanding Corolla Bolt Pattern’s Compatibility
Bolt patterns are essential to ensure compatibility between your Corolla’s hub and wheels.
A mismatch can result in improper fitment, leading to performance and safety issues.
Factors Affecting Compatibility
- Center Bore Size: This is the hole at the center of the wheel, which must align perfectly with your vehicle’s hub for proper wheel seating.
- Offset Specifications: The offset determines how far the wheel sits inward or outward from the hub. Proper offset alignment is critical for safety and handling.
- Thread Pitch: Ensure that the thread pitch of the lug nuts matches the bolts of the hub for a secure attachment.
- Material and Strength: Wheels and adapters made of high-quality materials enhance durability and compatibility.
Common Compatibility Challenges
- Different Models, Different Patterns: While most Corollas share the 5x100mm bolt pattern, the GR Corolla’s 5×114.3mm pattern may limit compatibility with standard wheels.
- Aftermarket Wheels: Custom or aftermarket wheels might not fit correctly due to differing offset or bore sizes.
- Adapters and Spacers: These can bridge compatibility gaps but must be vehicle-specific to avoid instability.
- Performance Upgrades: Enhanced brakes or suspensions may require special wheels, impacting the bolt pattern compatibility.
By understanding these nuances, you can confidently select wheels or accessories that align with your Corolla’s bolt pattern and overall specifications.
Bolt Pattern for A Different Corolla Model
| Model Year | Bolt Pattern | Lug Count | Offset Type | Common Wheel Size |
|---|---|---|---|---|
| 1966–1982 | 4x110mm | 4 | Positive | 13-inch wheels |
| 1983–1994 | 4x100mm | 4 | High Positive | 13–14-inch wheels |
| 1995–2002 | 4x100mm | 4 | High Positive | 14–15-inch wheels |
| 2003–2018 | 5x100mm | 5 | High Positive | 15–16-inch wheels |
| 2019–2022 | 5x100mm | 5 | Medium Positive | 16–17-inch wheels |
| GR Corolla (2022–Present) | 5×114.3mm | 5 | Medium Positive | 18–19-inch wheels |
How to Identify the Correct Bolt Pattern for A Specific Corolla Model
Knowing your Corolla’s exact bolt pattern ensures you choose compatible wheels and avoid fitment issues.
Here are key methods to identify the bolt pattern.
Measure the Bolt Pattern Manually
- Count the number of lug holes to determine whether it’s a 4-lug or 5-lug pattern.
- Measure the distance between two opposite lugs (center-to-center for 4-lug or diagonal for 5-lug).
- Use a caliper to ensure precise measurements in millimeters.
- Cross-check the measured diameter with standard patterns (e.g., 4x100mm or 5x100mm).
Refer to Vehicle Documentation
- Consult the owner’s manual, which specifies the factory bolt pattern.
- Check the manufacturer’s website for details on your specific model year.
- Look for a sticker on the driver-side door jamb or inside the glove compartment for specifications.
- Visit Toyota’s online database or service centers for detailed guidance.
Use a Bolt Pattern Gauge
Purchase a bolt pattern gauge, a simple tool that measures the PCD (Pitch Circle Diameter). Align the gauge with the lug holes to quickly determine the pattern.
This method is highly accurate and easy to perform.
Verify compatibility by matching the pattern against aftermarket wheel specs.
Consult a Professional Mechanic
Consulting a professional mechanic is one of the most reliable ways to identify your Corolla’s bolt pattern accurately.
- They can inspect for any wear or modifications that might affect compatibility.
- Mechanics often have access to bolt pattern guides for all vehicle models.
- Ensure the mechanic inspects the hub for any signs of damage or corrosion.
Properly identifying the bolt pattern ensures seamless installation and optimal performance for your Corolla.
Always double-check measurements before purchasing new wheels.
Comparisons Between Corolla’s and Other Brands’ Bolt Patterns
| Brand/Model | Bolt Pattern | Lug Count | Average Price Range (USD) |
|---|---|---|---|
| Toyota Corolla | 5x100mm | 5 | $70–$400 |
| Toyota GR Corolla | 5×114.3mm | 5 | $100–$600 |
| Honda Civic | 5×114.3mm | 5 | $80–$450 |
| Ford Focus | 4x108mm | 4 | $50–$350 |
| Subaru Impreza | 5x100mm | 5 | $75–$500 |
| Nissan Altima | 5×114.3mm | 5 | $100–$500 |
| Mazda 3 | 5×114.3mm | 5 | $90–$450 |
| Hyundai Elantra | 5×114.3mm | 5 | $70–$400 |
| Kia Forte | 5×114.3mm | 5 | $75–$450 |
| Volkswagen Jetta | 5x112mm | 5 | $100–$500 |
| Chevrolet Cruze | 5x105mm | 5 | $80–$400 |
Bolt Patterns and Wheel Offset: How They Work Together
Bolt patterns and wheel offset are crucial factors in ensuring proper wheel fitment on your Corolla.
The bolt pattern specifies the number of lug holes and the diameter of the circle they form, ensuring the wheel aligns perfectly with the vehicle’s hub.
On the other hand, wheel offset refers to the distance between the wheel’s mounting surface and its centerline.
This measurement determines how far the wheel sits inward or outward in relation to the fender.
A correct combination of bolt pattern and offset ensures the wheel fits snugly, maintains proper clearance, and avoids interference with the brakes or suspension.
For example, even if a wheel matches your Corolla’s bolt pattern, an incorrect offset can cause rubbing against the wheel well or protrusion beyond the fenders.
Together, these specifications maintain vehicle stability, enhance handling, and ensure safety.
Always verify both bolt pattern and offset when selecting new wheels.
How to Maintain Bolt Patterns on Your Corolla
Maintaining the bolt patterns on your Corolla is essential for wheel safety and performance.
Follow these simple steps:
- Check lug nuts regularly for tightness to prevent loosening during driving.
- Clean wheel hubs and bolt holes to remove debris and prevent rust.
- Use a torque wrench to tighten lug nuts to manufacturer specifications.
- Inspect lug bolts and nuts for wear or damage during routine maintenance.
- Avoid overtightening to prevent thread damage or deformation.
- Apply anti-seize compound when installing wheels to avoid sticking.
- Store seasonal wheels in a dry, clean environment to maintain their integrity.
- Replace worn or damaged lug nuts immediately to ensure a secure fit.
- Rotate wheels as recommended to distribute wear and maintain alignment evenly.
- Consult a professional mechanic for thorough inspection during servicing.
Proper maintenance of your Corolla’s bolt patterns ensures smooth performance and extends the life of your wheels.
Wrapping It Up
Getting your Corolla’s bolt pattern right makes a big difference in wheel fit and safety.
Remember, most Corollas use a 5×100 pattern, but always check your specific model year to be sure. Taking good care of your bolt pattern through regular checks and maintenance will save you money and time.
If you found this guide helpful, you might want to read my detailed guides on other popular cars.
I’ve covered bolt patterns for the Volkswagen lineup and Ford Focus models, which is perfect if you’re comparing different vehicle options.
Ready to make the right choice for your Corolla? Head to your local tire shop with confidence, knowing exactly what bolt pattern you need. Your wheels (and your wallet) will thank you for doing the research first.
