Finding the correct lug pattern for your Camaro’s wheels can be challenging, especially if you’re unfamiliar with the process.
When upgrading your wheels, you want to ensure a perfect fit, but measuring the bolt pattern accurately may seem daunting.
Don’t worry; we’ve got you covered.
This easy-to-follow guide will explain how to determine your Camaro’s lug pattern quickly and precisely.
Using simple tools, you’ll learn how to count the number of lugs and measure the bolt circle diameter.
By the end of this article, you’ll have the confidence and knowledge to find the perfect wheels for your Camaro, whether you’re a seasoned enthusiast or a novice.
Let’s start by demystifying the process of measuring your Camaro’s lug pattern.

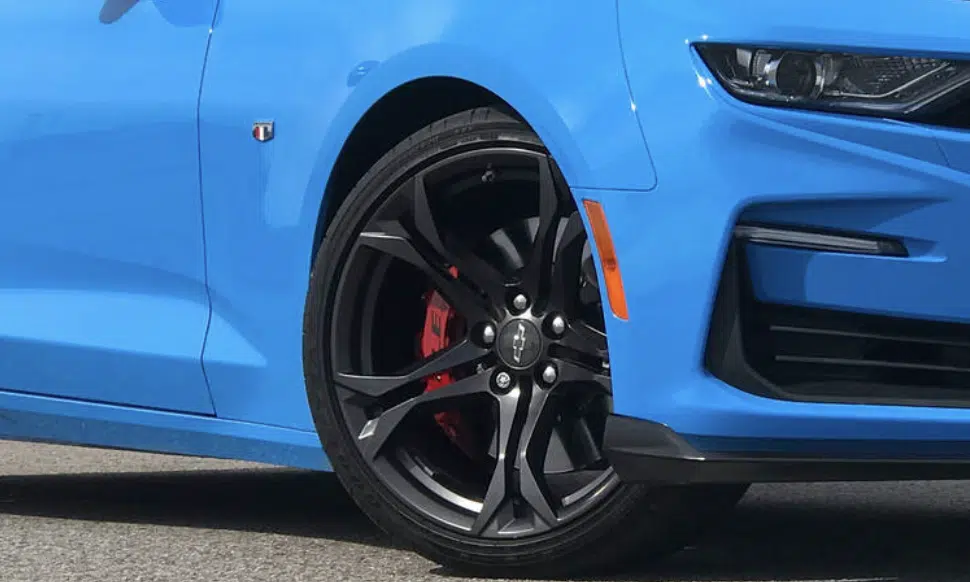

What is a Lug Pattern?
A lug pattern, also known as a bolt pattern, refers to the arrangement and number of lug holes in the hub of a wheel that the lug nuts screw into.
This pattern is crucial for securely fitting the wheel onto the vehicle’s hub.
Knowing your Camaro’s lug pattern is vital when purchasing new wheels, as it ensures compatibility and proper fitment.
Understanding Key Terminology
| Term | Definition | Importance |
|---|---|---|
| Studs | Threaded bolts protrude from the wheel hub, onto which the wheels are mounted. | The arrangement and number of studs determine the lug pattern. Understanding your Camaro’s studs is foundational. |
| Lug Nuts | Fasteners that fit onto the studs to secure the wheel to the vehicle. | The correct size and type of lug nut are crucial for a secure wheel installation on your Camaro. |
| Bolt Circle Diameter (BCD) | The diameter of the imaginary circle that runs through the center of each stud. | Accurately measuring the BCD is vital for identifying the correct lug pattern for your wheels. |
Tools Needed To Measure Lug Patterns
Gathering the necessary tools is important before you begin measuring your Camaro’s lug pattern. The right equipment will ensure accurate measurements and make the process more efficient.

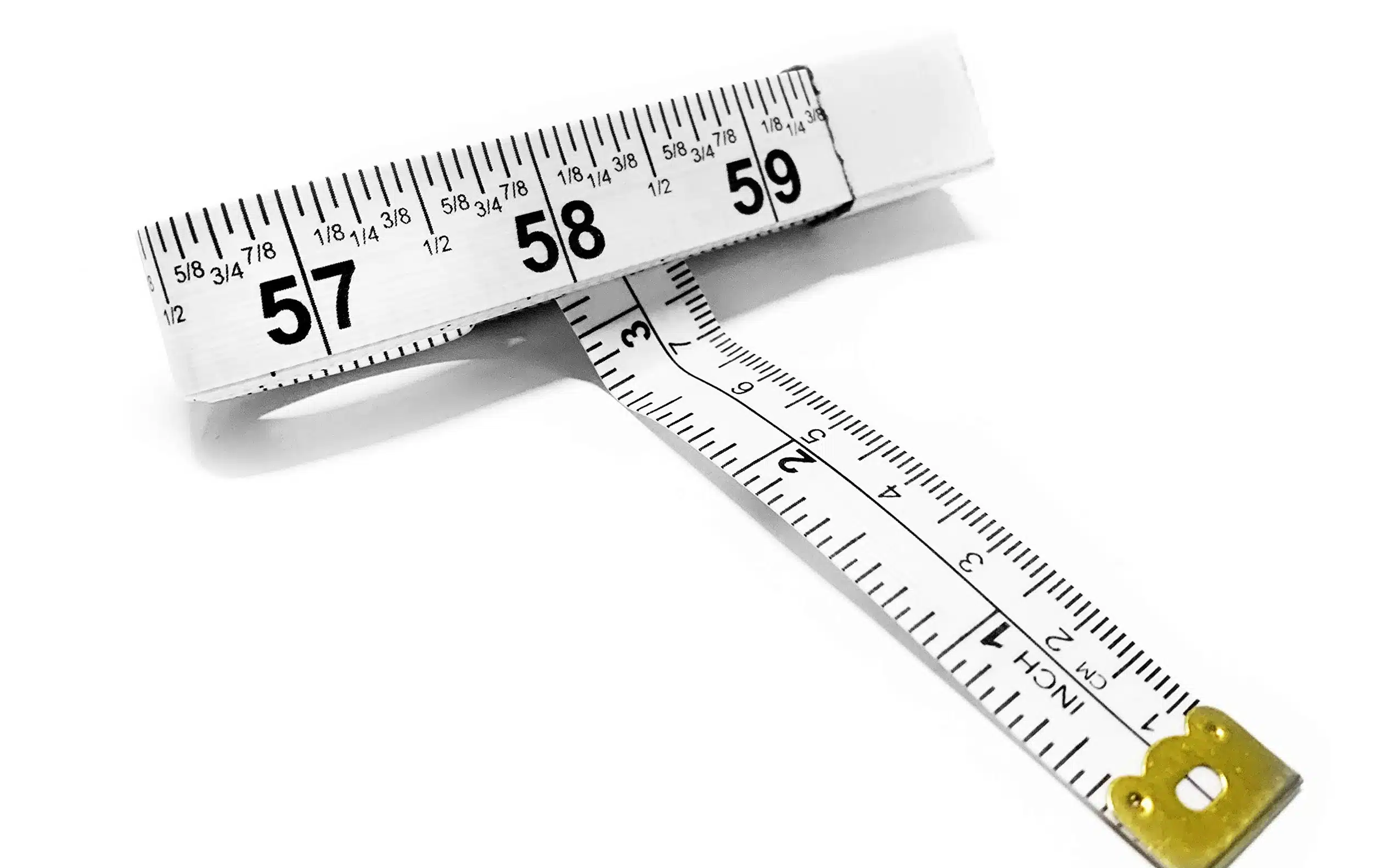

1. Essential Tool: Measuring Tape or Ruler
A measuring tape or ruler is essential for accurately measuring the bolt circle diameter directly on the wheel.
Accurate measurement is critical to ensure replacement wheels fit correctly on your Camaro. When using a measuring tape or ruler, ensure it is straight and level to obtain precise measurements.
A flexible measuring tape can help measure across the wheel’s diameter, while a rigid ruler is ideal for shorter distances between studs.
2. Optional Tool: Printable Wheel Bolt Pattern Measurement Tool
A printable wheel bolt pattern measurement tool is a template you can place directly over the wheel to identify the bolt pattern without quickly measuring it manually.
It’s especially handy if you frequently need to check different vehicles or are unsure about measuring accuracy.
To use this tool:
- Print the template from a reliable online source, ensuring your printer is set to 100% scale to maintain accuracy.
- Cut out the indicated areas along the lines provided.
- Align the tool with the wheel studs or bolt holes, and read the lug pattern from the corresponding labels on the template.
This tool can save time and reduce the likelihood of measurement errors.

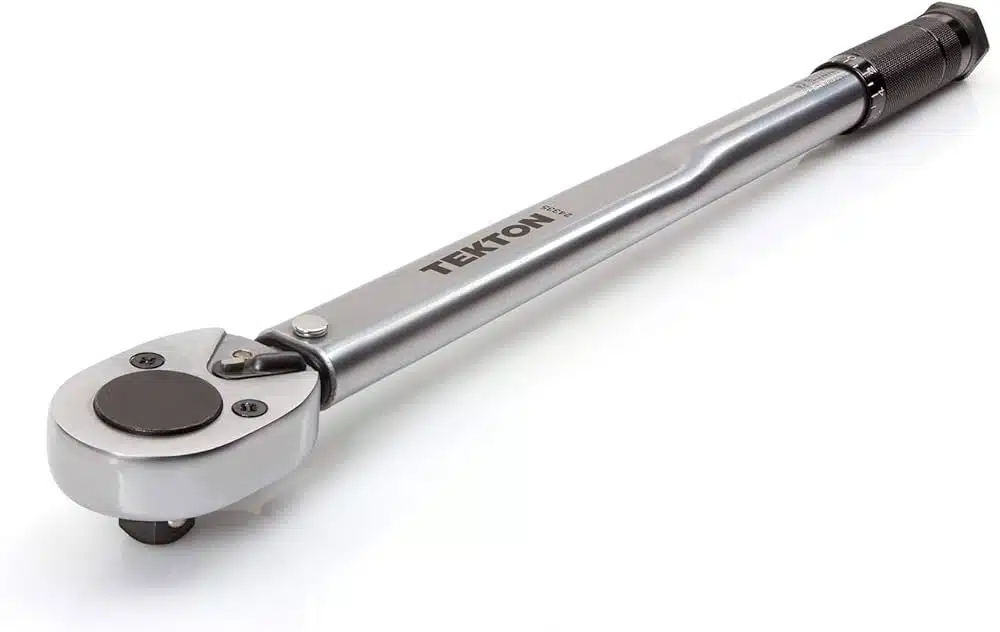

3. Contextual Tool: Torque Wrench
While not directly used for measuring lug patterns, a torque wrench is essential for properly securing the wheels after any adjustments or replacements.
It ensures that lug nuts are tightened to the manufacturer’s specified torque, which is crucial for safe driving.
Using the correct torque prevents the wheels from becoming loose or overly stressed, which can lead to dangerous situations on the road.
Regularly calibrate your torque wrench to ensure accurate readings and follow the manufacturer’s instructions for proper use and maintenance.
To ensure you’re using the correct torque settings for your Camaro, refer to the following table:
| Generation | Model Years | Torque Specification |
|---|---|---|
| 1st Gen | 1967-1969 | 80-90 ft-lbs |
| 2nd Gen | 1970-1981 | 80-90 ft-lbs |
| 3rd Gen | 1982-1992 | 80-100 ft-lbs |
| 4th Gen | 1993-2002 | 100 ft-lbs |
| 5th Gen | 2010-2015 | 140 ft-lbs |
| 6th Gen | 2016-2024 | 140 ft-lbs |
Steps to Measure Lug Patterns
Measuring your Camaro’s lug pattern is a straightforward process that can be accomplished with the right tools and a few simple steps.
Follow this guide to determine your vehicle’s lug pattern accurately.
1. Parking the Vehicle Safely
Before you begin measuring, it’s essential to ensure your vehicle is parked safely and the lug nuts are accessible.
Park your Camaro on a flat, stable surface to ensure measurement accuracy.
Engage the parking brake and ensure the vehicle is in a safe, quiet area to avoid movement during measurement.
This step is crucial for both your safety and the accuracy of your measurements.
2. Removing the Hubcap
If your Camaro has hubcaps covering the lug nuts, you’ll need to remove them to access the lugs.
Use a flat-head screwdriver to gently pry the hubcap off, starting at the edge and working your way around.
Be careful not to damage the hubcap or the wheel during removal. If your lug nuts are exposed, you can skip this step.
3. Measuring Procedures
The measuring process differs slightly depending on whether your Camaro has an even or odd number of lug nuts.
For Even-Numbered Lug Patterns
If your Camaro has an even number of lug nuts (4, 6, or 8), measure the distance from the center of one lug to the center directly across from it. This measurement represents the diameter of the bolt circle.
Use a ruler or measuring tape to obtain an accurate reading in millimeters or inches.
For Odd-Numbered Lug Patterns (Specifically for 5-Lug, which is common in Camaros)
Most Camaros have a 5-lug pattern, which requires a slightly different measuring approach.
Start by measuring from the center of one lug, then skip the next lug and measure to the outer edge of the following lug.
This method accounts for the inability to measure directly across the center of the wheel.
To ensure accuracy:
- Use a flexible measuring tape for the best results, as it can conform to the wheel’s curvature.
- Double-check your measurements by repeating the process on different lugs to confirm consistency.
- Record your measurements in both millimeters and inches to accommodate different wheel specifications.
4. Verifying Wheel Torque Specifications
After measuring your Camaro’s lug pattern and ensuring you have the correct wheels, verifying your vehicle’s proper wheel torque specifications is essential.
Proper torque ensures the wheels are securely attached to the vehicle’s hub.
Incorrect torque can lead to wheels that are too loose, which might detach, or too tight, which can damage the wheel or lug nuts.
- Refer to your Camaro’s owner’s manual for the manufacturer-recommended torque settings for your specific model.
- Use a calibrated torque wrench to adjust the lug nuts to the correct tightness specified in the manual.
- It is advisable to check the torque settings after the first 50 to 100 miles of driving, as lug nuts may settle or loosen over time.
Common Manufacturer Wheel Bolt Patterns
| Manufacturer | Common Bolt Patterns | Vehicle Class |
|---|---|---|
| Ford | 5x135mm, 6x135mm, 5×4.5 inches | Trucks, SUVs, Cars |
| Dodge | 5×5.5 inches, 6×4.5 inches | Trucks, SUVs |
| AMC | 5×4.5 inches, 5×5 inches | Cars, SUVs |
| Mopar | 5×4.5 inches, 5×5 inches | Cars, SUVs |
| Lincoln | 5×4.25 inches, 5×5 inches | Luxury Cars, SUVs |
| Cadillac | 5x115mm, 5×5 inches | Luxury Cars, SUVs |
| Jeep | 5×4.5 inches, 5×5 inches, 5×5.5 inches | SUVs, Off-road |
| GM | 5×4.75 inches, 6×5.5 inches | Cars, Trucks, SUVs |
| Chevy | 5×4.75 inches, 6×5.5 inches, 8×6.5 inches | Cars, Trucks, SUVs |
Practical Tips and Common Mistakes
1. Ensuring Accurate Measurements: Avoiding Common Errors
Use of Proper Tools
The correct tools are essential for accurately measuring and applying torque to your Camaro’s lug nuts.
Always use a calibrated torque wrench designed for automotive use. Avoid using impact wrenches or other power tools, as they can easily overtighten lug nuts and damage the wheel or studs.
Technique
When using a torque wrench, follow these steps:
- Set the torque wrench to the specified value for your Camaro’s lug nuts.
- Place the wrench on the lug nut and apply steady, even pressure until you feel and hear the wrench “click.”
- Repeat this process for each lug nut, following a star pattern to ensure even tightening.
- After tightening all lug nuts, double-check the torque settings to ensure accuracy.
2. Importance of Re-checking Lug Nut Torque After Driving a Set of Wheels
Initial Re-check
After installing a new set of wheels on your Camaro, it’s crucial to re-check the lug nut torque after driving the first 50 to 100 miles.
During this initial period, the wheels can settle, and the lug nuts may lose some of their initial torque.
Checking and adjusting the torque after this break-in period ensures that the wheels remain securely attached to the vehicle.
Ongoing Maintenance
Incorporate lug nut torque checks into your regular vehicle maintenance schedule.
Checking the torque at least once every six months or during tire rotations can help prevent wheel detachment and maintain optimal vehicle performance and safety.
If you frequently drive in harsh conditions or rough terrain, check the torque more often.
What is The Most Common Bolt Pattern?
| Bolt Circle Diameter (Inches) | Bolt Circle Diameter (mm) | Common Vehicle Applications |
|---|---|---|
| 4.5″ | 114.3 mm | Common in many Japanese cars, some Ford and Chrysler vehicles |
| 4.75″ | 120.65 mm | Common in older GM cars, some newer models |
| 5.0″ | 127 mm | Common in many US manufactured cars and SUVs |
| 5.5″ | 139.7 mm | Common in larger SUVs and trucks, some luxury cars |
| 5.31″ | 135 mm | Common in some European and high-performance vehicles |
| 4.25″ | 108 mm | Common in some smaller cars and compact vehicles |
| 4.72″ | 120 mm | Used in many European sedans and some sports cars |
| 5.12″ | 130 mm | Typically found in high-end sports cars and luxury vehicles |
Conclusion
Measuring your Camaro’s lug pattern is a crucial step in ensuring the proper fitment and safety of your wheels.
Following the steps outlined in this guide, you can accurately determine your vehicle’s lug pattern and select wheels that will perfectly match your Camaro.
Use the correct tools, take precise measurements, and refer to your vehicle’s owner’s manual for specific torque specifications.
Proper wheel installation and maintenance enhance your Camaro’s appearance and contribute to its overall performance and safety on the road.
Now that you’ve mastered the art of measuring lug patterns, you’re ready to find the perfect set of wheels for your Camaro.
Frequently Asked Questions
What is the Lug Pattern on A Camaro?
Most Camaros have a 5×4.75″ (5×120.7mm) lug pattern, but some newer models may have a 5×5″ (5x127mm) pattern.
Are All Camaro Lug Patterns the Same?
No, Camaro lug patterns can vary by generation and model year. Always verify your specific vehicle’s lug pattern.
What Cars Have a 5×115 Bolt Pattern?
Cars with a 5×115 bolt pattern include Cadillacs, Saabs, and Saturns. This pattern is less common than 5×4.75″ or 5×5″.
Will 5 X4.5 Fit 5 X115 Bolt Pattern?
No, 5×4.5 (5×114.3mm) wheels will not fit a 5×115 bolt pattern. The bolt circle diameter is slightly different, and the wheels will not mount securely.
