The lug pattern on your Toyota 4Runner is key to ensuring your wheels fit properly and safely. It refers to the number of bolts and their arrangement that attach the wheels to the vehicle.
Each vehicle has its own specific lug pattern, which is essential for selecting the right wheels.
Knowing the correct lug pattern is important for a few reasons. First, it helps you avoid issues with wheel fitment, which could lead to uneven tire wear or even cause your wheels to come loose.
Second, it ensures that you can safely upgrade or replace your wheels with options that are compatible with your 4Runner.
By knowing your 4Runner’s lug pattern, you make sure your wheels stay secure and work properly for a safe driving experience.

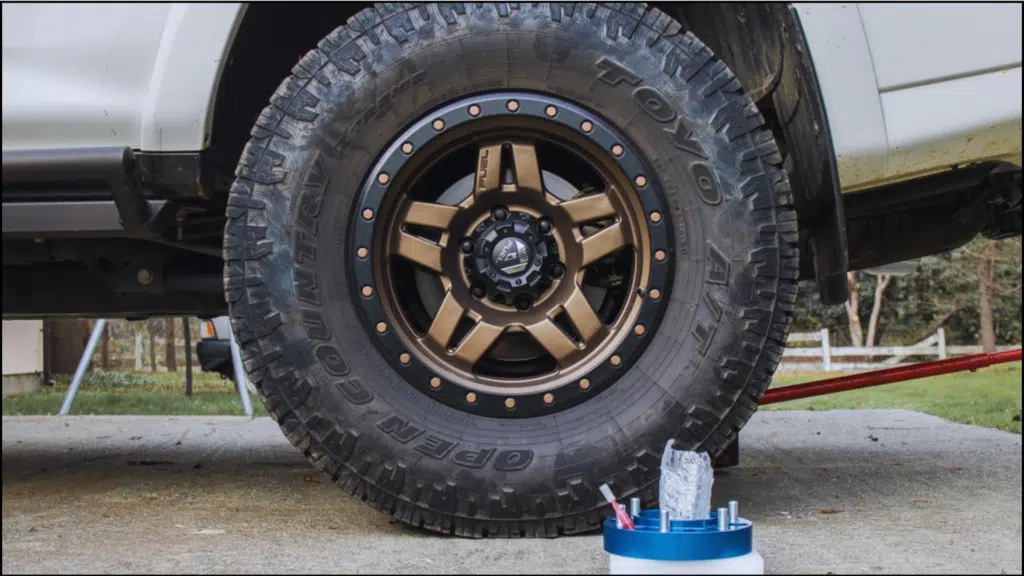

What is the Lug Pattern for a Toyota 4Runner?
The lug pattern for a Toyota 4Runner varies depending on the model year and generation. The lug pattern is important to know when choosing the right wheels for your 4Runner, as it ensures a secure fit.
Here’s a breakdown of the standard lug patterns for different 4Runner models:
Older Models (Up to 2002)
-
- Lug Pattern: 6×5.5”
- Bolt Circle: 5.5 inches between each bolt
- This lug pattern was used in the earlier 4Runner generations. If you own one of these models, you’ll need to find wheels that match this measurement.
Newer Models (2003 and onward)
-
- Lug Pattern: 6×139.7mm
- Bolt Circle: 139.7 millimeters between each bolt
- Starting with the 2003 model, Toyota switched to this slightly smaller measurement for the bolt circle. This is now the standard pattern for most 4Runner models.
It’s important to remember that while the lug pattern and bolt circle are key, they’re not the only factors to consider when selecting new wheels. Other elements, such as wheel offset and center bore size, also need to match your vehicle for proper fitment.
Knowing your 4Runner’s exact lug pattern and bolt circle measurement ensures that the wheels you choose will be compatible, keeping your vehicle both safe and reliable on the road.
Understanding 4Runner Lug Patterns and Their Compatibility
Lug patterns are critical to ensuring your wheels fit correctly and securely on your Toyota 4Runner. The right lug pattern ensures safety, performance, and proper wheel function.
How Lug Patterns Affect Wheel Fitment
Proper Fitment
-
- The lug pattern ensures that the bolt holes on the wheel match up with the bolts on your 4Runner.
- An improper fit can lead to loose wheels and unsafe driving.
- It guarantees even pressure distribution across the wheel, helping with proper tire wear and smoother rides.
Even Distribution of Pressure
-
- A correct lug pattern helps distribute road pressure evenly, which reduces uneven tire wear and improves vehicle handling.
- Improper fitment can cause premature damage to your tires and suspension.
Wheel Vibrations and Safety
-
- A mismatch in lug pattern can lead to vibrations at high speeds, making driving uncomfortable and unsafe.
- These vibrations could also lead to long-term damage to your wheels, tires, and suspension.
Wheel Alignment
-
- Proper alignment ensures your wheels fit with the suspension and braking system, improving handling and braking performance.
- Misalignment can cause uneven tire wear and steering issues.
Compatibility with Other Toyota Models
Common Toyota Lug Patterns
-
- Many Toyota vehicles share the same 6×139.7mm lug pattern, including models like the Tacoma, Tundra, and Sequoia. This means that wheels from these vehicles may fit your 4Runner, offering more options when you’re looking for replacements or upgrades.
- However, it’s always important to double-check the exact measurements, especially the bolt circle and center bore, before swapping wheels. Even if the lug pattern is the same, these other factors can affect fitment and safety.
Other Toyota 6-Lug Models
-
- If you own a 4Runner, wheels from other Toyota trucks and SUVs with the same 6×139.7mm lug pattern should generally fit, but there are a few more things to consider.
- Wheel offset and center bore are just as important as the lug pattern itself. The offset determines how far the wheel sits from the hub, and the center bore ensures the wheel sits correctly on the axle.
- If these measurements don’t match, the wheels may not fit securely or align properly.
Model-Year Variations
-
- Even within the same make, different generations or model years of the 4Runner or other Toyota vehicles can have slight variations in wheel measurements.
- For example, a 4Runner from 2000 might have different specifications than a 4Runner from 2010, even though both vehicles use a 6-lug pattern.
- This means that wheels from earlier 4Runner models might not be compatible with newer ones. Always confirm the specifications for your exact model year to ensure a proper fit.
List of the Correct Lug Patterns for Different 4Runner Models
The lug pattern on your Toyota 4Runner can change depending on the model year and if your 4Runner is a 2WD or 4WD version.
It’s important to know these details when choosing new wheels or tires. Here’s a list of the correct lug patterns for different 4Runner models:
Lug Patterns by Model Year
1984-1989 4Runner
-
- Lug Pattern: 6×5.5”
- This early generation used a 6×5.5” lug pattern, which was standard for many Toyota trucks at the time.
- It’s important to check the center bore and offset when looking for compatible wheels for these models.
1990-1995 4Runner
-
- Lug Pattern: 6×5.5”
- These models also used the 6×5.5” lug pattern.
- The design of the wheels for this generation is compatible with many Toyota vehicles of the same era, making it easier to find replacements or upgrades.
1996-2002 4Runner
-
- Lug Pattern: 6×5.5”
- This generation continued using the 6×5.5” lug pattern, keeping consistency across several model years.
- The design was largely similar to earlier models, which means wheels from these years are often interchangeable.
2003-2009 4Runner
-
- Lug Pattern: 6×139.7mm
- Starting in 2003, the 4Runner switched to a 6×139.7mm lug pattern, which is the most common lug pattern used in later Toyota models.
- This change allows for compatibility with newer Toyota trucks like the Tacoma and Tundra. Be sure to check wheel offset and backspacing when swapping.
2010-Present 4Runner
-
- Lug Pattern: 6×139.7mm
- The newer 4Runner models continue using the 6×139.7mm pattern. This makes it easier to find compatible wheels from other Toyota vehicles, particularly newer trucks and SUVs.
Additional Information on Lug Patterns
Bolt Circle and PCD
-
- The PCD (Pitch Circle Diameter) is another way to describe the lug pattern. It refers to the diameter of the circle formed by the centers of the lug holes.
- For example, a 6×139.7mm lug pattern means that there are 6 bolts, and the diameter of the circle connecting the centers of the holes is 139.7mm.
- Always check both the number of lugs and the diameter when selecting wheels to ensure compatibility.
Wheel Offset and Backspacing
-
- The wheel offset is how far the wheel sits in or out from the vehicle’s hub. This affects the overall appearance of your 4Runner and can also impact wheel clearance, handling, and suspension geometry.
- The backspacing is the distance from the wheel’s mounting surface to the back edge of the wheel. Both of these measurements need to match the specifications of your 4Runner for proper fitment.
Center Bore Size
-
- The center bore is the hole in the center of the wheel that fits over the vehicle’s hub. The center bore size must match the hub size of your 4Runner to ensure the wheel is securely mounted. A mismatch can lead to vibrations and safety issues.
Differences Between 2WD and 4WD Versions
2WD vs. 4WD Lug Patterns
-
- In most cases, the 2WD and 4WD versions of the 4Runner use the same lug pattern. Both typically have the 6×5.5” or 6×139.7mm lug pattern.
- There may be slight differences in the wheel offset and backspacing between the 2WD and 4WD versions. These differences affect the space between the wheel and suspension.
- Always check your 4Runner’s specific details to make sure the wheels will fit properly.
Knowing your 4Runner’s lug pattern and other measurements ensures you choose the right wheels for a secure fit, avoiding any issues with safety or performance.
How to Identify the Correct Lug Pattern for a Specific 4Runner Model
Identifying the correct lug pattern for your Toyota 4Runner is essential when selecting new wheels. Here’s a simple guide on how to measure the lug pattern step-by-step and what tools you need to check compatibility.
Measuring Lug Patterns Step-by-Step
1. Count the Number of Lug Holes
-
- Start by counting how many holes there are around the center of the wheel. Most 4Runners have 6 holes, but some models might vary.
- This is the first number in the lug pattern, like 6×139.7mm.
2. Measure the Distance Between Two Adjacent Lugs
-
- To measure the lug pattern, pick two adjacent lugs (holes) on the wheel.
- Measure the distance from the center of one lug hole to the center of the next lug hole. This is the bolt circle diameter (BCD).
- If you’re using a metric system, this will be in millimeters, while in the imperial system, it will be in inches.For example, a typical 6×139.7mm lug pattern means the 6 bolts form a circle with a diameter of 139.7mm.
3. Measure Across Multiple Lugs
-
- For a 5-lug pattern, measure from the center of one lug hole to the center of the third lug hole directly across from it.
- For a 6-lug pattern, measure from the center of one hole to the center of the opposite hole across the circle.
- Ensure you measure across the diameter of the bolt circle rather than just from hole to hole, as that’s the key to identifying the correct pattern.
4. Use the Right Unit of Measurement
-
- Make sure you’re using the correct units for your 4Runner’s year and model.
- Many 4Runner lug patterns use millimeters (e.g., 139.7mm), but some older models may use inches (e.g., 5.5”).
Tools Needed to Check Compatibility
1. Lug Pattern Measuring Tool
-
- The easiest way to measure a lug pattern is by using a lug pattern gauge, which is a tool specifically designed to measure the number of lugs and the distance between them.
- You can purchase one at auto parts stores or online.
2. Caliper
-
- A caliper is a precision tool that can be used to measure the diameter of the bolt circle. You can use a digital or manual caliper to get accurate measurements in either millimeters or inches.
- This tool is perfect for ensuring you’re measuring the exact distance between lug holes.
3. Tape Measure or Ruler
-
- A tape measure or ruler can work if you don’t have a caliper.
- While not as precise, it can give you a good estimate of the bolt circle diameter.
4. Wheel Bolt Adapter
-
- If you’re unsure about the measurements or have trouble checking compatibility, a wheel bolt adapter can be used to test if your 4Runner’s lugs will fit into the new wheels.
- This tool is often used for verifying compatibility between different wheel sizes.
Checking Compatibility
Once you’ve identified your 4Runner’s lug pattern, it’s important to verify other wheel specifications to ensure full compatibility:
- Center Bore Size: The hole in the center of the wheel must match the hub size of your 4Runner.
- Wheel Offset: Ensure the wheel’s offset (the distance from the center of the wheel to the hub mounting surface) is compatible with your 4Runner for proper fitment.
- Load Rating: Ensure the wheels can handle the weight your 4Runner will carry.
Knowing how to measure the lug pattern and verify wheel compatibility ensures that your wheels fit correctly and safely on your 4Runner, allowing for a smooth driving experience.
Comparisons Between 4Runner Lug Patterns and Other Brands
Understanding how the lug patterns of your Toyota 4Runner compare to other SUVs and trucks can help you find compatible wheels more easily.
It’s also useful when considering aftermarket wheel options. Here’s how 4Runner lug patterns stack up against those from other brands and how they work with aftermarket wheels.
How 4Runner Lug Patterns Compare to Other SUVs and Trucks
Toyota vs. Other Toyota Models
- Many Toyota vehicles share similar lug patterns, especially within their trucks and SUVs.
- For example, Tacoma, Tundra, and Sequoia all use the 6×139.7mm lug pattern, which makes it easier to swap wheels between these models. However, always verify other specifications like wheel offset and center bore for proper fitment.
- Some older Toyota models, such as the Land Cruiser, may have different lug patterns, so it’s important to double-check the measurements.
Toyota vs. Other Brands
- When comparing Toyota 4Runner lug patterns with other truck brands, there are similarities but also important differences.
- For example, many Ford and Nissan trucks use a 6-lug pattern with a bolt circle of 139.7mm (like the Ford F-150 or Nissan Frontier). This means that some of these vehicles could have wheels that are compatible with the 4Runner, but it’s crucial to check additional measurements (like offset and center bore) to ensure a good fit.
- On the other hand, some brands like Chevrolet and Ram use larger or smaller lug patterns, like 8-lug patterns or 5-lug patterns, making them incompatible with the 4Runner.
Bolt Circle Variations
- While the 6×139.7mm pattern is common, some brands may use slightly different bolt circles.
- For instance, a 5×139.7mm pattern (5-lug, 139.7mm bolt circle) is found on some vehicles, which means these wheels will not fit on your 4Runner.
- Always double-check the number of lugs and the bolt circle size when comparing vehicles.
Cross-Compatibility with Aftermarket Wheels
Aftermarket Wheel Options
- Aftermarket wheels often come with different lug patterns to fit a wide range of vehicles. Many aftermarket wheels are designed to be compatible with multiple 6-lug vehicles, including the 4Runner.
- These wheels can come with multiple hole patterns, such as 6×139.7mm or a universal 6-lug pattern that fits several models.
- It’s important to ensure the wheels are designed to accommodate the center bore size, offset, and load rating that match your 4Runner’s specifications. Even if the lug pattern is correct, other measurements must be considered for safe fitment.
Adapter Rings for Compatibility
- If you find aftermarket wheels that don’t perfectly match the 4Runner’s center bore size, adapter rings can be used to fit the wheels properly on your vehicle.
- These rings fill the gap between the wheel’s center bore and your 4Runner’s hub, ensuring a snug fit and preventing vibrations.
Wheel Fitment Considerations
- Aftermarket wheels can offer more variety in design, materials, and price, but it’s essential to verify that the wheel’s specifications, including offset and backspacing, align with your 4Runner’s requirements.
- If the specifications differ too much, it can affect the wheel’s alignment and the vehicle’s handling.
- Choosing the wrong offset could lead to wheels that sit too far out or too far in, which can cause rubbing or stress on the suspension.
By understanding how your 4Runner’s lug pattern compares to other brands and considering the compatibility of aftermarket wheels, you can ensure a better selection of wheels. Always verify measurements like center bore, offset, and load rating for a safe and effective fit.
How to Maintain Lug Patterns on Your 4Runner
Maintaining the lug pattern on your Toyota 4Runner is essential for safe driving and optimal performance. Proper installation, regular checks, and maintaining wheel alignment are important to keep everything functioning smoothly. Here’s how to ensure your 4Runner’s lug pattern stays in top shape.
Proper Installation and Torque Specifications:
Correct Installation
- When installing new wheels on your 4Runner, it’s important to ensure the lug nuts are tightened properly. If they are not tightened enough, the wheel may come loose while driving, causing safety hazards. If they are too tight, it can cause damage to the lug threads, wheels, or brake components.
- Always install the lug nuts in a crisscross pattern to evenly distribute pressure. This helps avoid warping the wheel and ensures it is securely attached to the vehicle.
Torque Specifications
- Every 4Runner model has specific torque specifications for the lug nuts. You should always follow the manufacturer’s recommended torque for your vehicle.
- For most 4Runner models, the lug nut torque is typically around 80-100 ft-lbs. However, it’s always best to check your 4Runner’s manual or consult a professional to get the exact figure for your specific model and year.
- After installing the wheels, it’s important to re-check the torque after driving for 50-100 miles. This ensures that the lug nuts remain properly tightened and haven’t loosened due to vibrations.
Checking for Wheel Alignment and Safety
Wheel Alignment
- Proper wheel alignment is essential to ensure that the wheels are correctly positioned for smooth handling and even tire wear. Misaligned wheels can affect the way your 4Runner drives, causing it to pull to one side or feel unstable.
- If you notice uneven tire wear, a steering wheel that vibrates, or if the vehicle pulls to one side, it could be a sign that your wheel alignment is off. It’s important to have your 4Runner checked by a professional to correct any alignment issues.
- Keep in mind that alignment issues can sometimes be caused by incorrect wheel fitment due to a mismatch in the lug pattern or wheel offset.
Safety Checks
- Regularly check for wheel lug nut tightness to ensure your wheels remain securely fastened.
- In addition to the initial torque check, it’s a good idea to inspect the lug nuts for any signs of damage or wear during routine tire rotations or vehicle maintenance.
- Always inspect the condition of the wheel bolts. Over time, bolts can wear or become damaged, especially if the wheels have been removed and installed multiple times.
- If you notice any cracks, rust, or stripped threads, replace the bolts immediately.
- It’s also a good idea to inspect the brake components and suspension regularly, as improper lug patterns or loose wheels can sometimes affect other parts of the vehicle.
By ensuring proper wheel installation, maintaining the correct torque specifications, and regularly checking wheel alignment and safety, you can keep your 4Runner’s lug patterns in excellent condition. This not only improves the vehicle’s performance but also ensures your safety while driving.
Conclusion
Knowing your Toyota 4Runner’s lug pattern is essential for selecting the right wheels. Most 4Runners use a 6×5.5” pattern in older models and a 6×139.7mm pattern in newer ones. Understanding this helps avoid issues with wheel fitment.
Always check compatibility with other Toyota models and aftermarket wheels. Make sure the offset, center bore, and load rating match your vehicle for safe and proper fitment.
Proper installation is key for safety. Follow the correct torque specifications, tighten the lug nuts in a crisscross pattern, and regularly check wheel alignment.
By understanding your lug pattern and maintaining your wheels, you can improve your 4Runner’s performance and ensure a safe driving experience. Always double-check measurements before purchasing new wheels.
Frequently Asked Questions
What is the lug pattern for a Toyota 4Runner?
The lug pattern for most Toyota 4Runner models from 2003 onward is 6×139.7mm, while older models (up to 2002) typically use a 6×5.5” pattern.
How do I measure the lug pattern on my 4Runner?
To measure the lug pattern, count the number of bolt holes on your wheel and measure the distance between the center of two adjacent holes, which is the bolt circle diameter.
Can I use wheels from other Toyota models on my 4Runner?
Many Toyota vehicles, such as the Tacoma, Tundra, and Sequoia, use the same 6×139.7mm lug pattern, so wheels from these models may be compatible with your 4Runner. Always check other measurements like offset and center bore.
Do 2WD and 4WD 4Runner models use the same lug pattern?
Yes, both 2WD and 4WD versions of the 4Runner typically use the same 6-lug pattern, though other factors like wheel offset and center bore should be considered for proper fitment.
How do I ensure my aftermarket wheels will fit my 4Runner?
When selecting aftermarket wheels, make sure the lug pattern, center bore, offset, and load rating match your 4Runner’s specifications to ensure proper and safe fitment.
What is the recommended torque for lug nuts on my 4Runner?
The recommended torque for lug nuts on most 4Runner models is around 80-100 ft-lbs. Always follow the specifications in your vehicle’s manual.
Can I change the lug pattern on my 4Runner?
While you can change your wheel setup with adapters, it’s best to stick with the original lug pattern to avoid complications with wheel fitment and safety.
How often should I check my 4Runner’s lug nuts?
It’s a good idea to check your lug nuts after the first 50-100 miles of driving and during regular tire rotations to ensure they remain properly tightened.
