When it comes to upgrading or changing the wheels on your Ford Bronco, knowing the bolt pattern is essential.
The bolt pattern tells you how many lug holes your wheels have and the distance between them. Getting the correct bolt pattern is important for ensuring your new wheels will fit properly.
If the bolt pattern doesn’t match, your wheels may not be installed correctly, leading to safety issues and poor handling.
In this guide, I’ll go through the Ford Bronco bolt pattern, how to check compatibility with different wheels and tips on making sure your new wheels fit perfectly.
If you’re thinking about replacing worn-out wheels or upgrading to a new set, this guide will help you make the right choice.

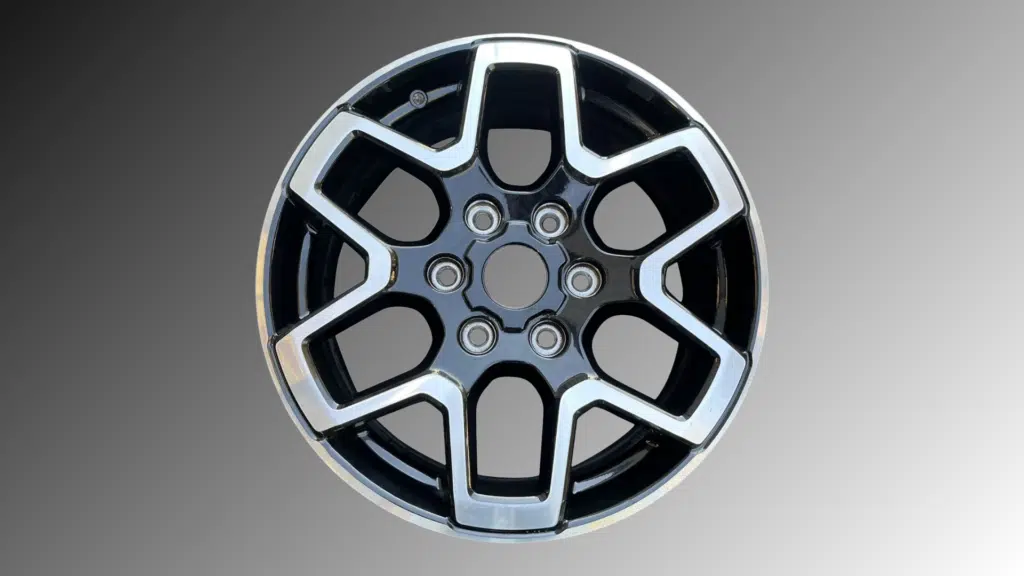

What is the Bolt Pattern for a Ford Bronco?
The bolt pattern (also called the lug pattern) is a key part of wheel fitment. It tells you how many bolts are used to attach the wheel to the car and the distance between those bolts.
For the Ford Bronco, the bolt pattern is typically 6×5.5 inches (6×139.7mm) for most models. This means:
- 6 lug holes
- 5.5 inches (139.7mm) between the center of one lug hole to the center of the opposite lug hole
This 6×5.5 bolt pattern is used for Ford Bronco models from 1966 to 2021. However, it’s always a good idea to check your Bronco’s model year to confirm the bolt pattern, as there can be slight differences across different years or trims.
Ford Bronco Bolt Patterns by Model Year
1. 2021 – 2024 Ford Bronco: 6×5.5 inches (6×139.7mm) This is the standard bolt pattern for the newer Bronco models after its recent return in 2021.
2. 1980 – 2020 Ford Bronco: 6×5.5 inches (6×139.7mm). The 1980-2020 Bronco models use the same 6×5.5 bolt pattern, so wheels from this time frame should also fit newer models.
3. 1966 – 1979 Ford Bronco: 5×5.5 inches (5×139.7mm). The early Ford Bronco models from 1966 to 1979 have a 5-lug pattern, making them different from the later 6-lug versions.
Understanding Ford Bronco Bolt Patterns and Compatibility
When shopping for new wheels for your Ford Bronco, it’s not just about finding wheels with the same number of lugs. Bolt pattern compatibility depends on more than just the lug holes. Here are the important details to keep in mind:
1. The Bolt Pattern Must Match Exactly
- For the Ford Bronco, you need wheels with the correct number of lugs (5 or 6, depending on the year) and the correct spacing between the lugs.
- The most common Ford Bronco bolt pattern is 6×5.5 inches (6×139.7mm), used in most modern models.
2. Check the Offset
- The offset is the distance between the wheel’s centerline and the mounting surface.
- For the Ford Bronco, the recommended offset range is usually between +20mm to +35mm. The right offset ensures the wheel sits correctly inside the wheel well, preventing rubbing or imbalance.
3. Hub Bore Size Matters
- The hub bore is the hole in the center of the wheel that fits over your vehicle’s hub. For most Ford Bronco models, the hub bore size is typically around 108mm.
- If the hub bore is too small or large, you may need hub-centric rings to make sure the wheel fits securely.
How to Identify the Bolt Pattern for Your Ford Bronco
If you’re unsure about the bolt pattern on your Ford Bronco, here’s how to figure it out:
1. Check the Owner’s Manual: The easiest way to find the bolt pattern for your Ford Bronco is to check the owner’s manual. It will list the exact specifications, including the bolt pattern, offset, and other important details.
2. Look for the Sticker Inside the Driver’s Door: Check the driver’s side door frame for a sticker or label that lists the factory wheel size and other specifications. This may also include the bolt pattern.
3. Use Online Fitment Tools: Websites like Tire Rack or Discount Tire offer fitment tools where you can enter your Ford Bronco’s model year to get the exact bolt pattern and wheel specs.
How to Measure the Bolt Pattern Yourself
If you’re unsure about your Ford Bronco’s bolt pattern or can’t find the information in the owner’s manual, you can measure it yourself. Here’s a simple guide to help you accurately measure the bolt pattern:
1. Count the Lug Holes: Start by counting the lug holes on your wheel. For the Ford Bronco, there are typically 6 lug holes for most models. This means it has a 6-lug pattern.
2. Measure the Distance Between Opposite Lug Holes: The next step is to measure the distance between the center of one lug hole to the center of the lug hole directly across from it.
3. Check the Measurement: If the distance between the lug holes is 5.5 inches (139.7mm), your Ford Bronco has a 6×5.5 bolt pattern. You may have a different pattern if the measurement is different, so check carefully.
Always double-check your measurements and ensure you measure from center to center for accuracy. If you are unsure, using an online fitment tool or consulting with a professional can help confirm the pattern.
Ford Bronco vs Other Brands’ Bolt Patterns
It’s important to know how the Ford Bronco bolt pattern compares to other vehicles, especially if you’re considering swapping wheels from other models. Here’s how the Ford Bronco’s bolt pattern stacks up:
1. Ford Bronco vs. Jeep Wrangler
- Ford Bronco: 6×5.5 inches (6×139.7mm)
- Jeep Wrangler: 5×5 inches (5x127mm)
- The Jeep Wrangler has a 5-lug pattern that’s smaller than the Ford Bronco’s 6-lug pattern, so they aren’t compatible.
2. Ford Bronco vs. Toyota 4Runner
- Ford Bronco: 6×5.5 inches (6×139.7mm)
- Toyota 4Runner: 6×5.5 inches (6×139.7mm)
- The Toyota 4Runner and Ford Bronco share the same bolt pattern, so you can swap wheels between these two vehicles if the offset and hub bore sizes match.
3. Ford Bronco vs. Chevrolet Tahoe
- Ford Bronco: 6×5.5 inches (6×139.7mm)
- Chevrolet Tahoe: 6×5.5 inches (6×139.7mm)
- The Chevrolet Tahoe also uses the 6×5.5 bolt pattern, making its wheels compatible with the Ford Bronco. Always check for other fitment details like offset and hub bore.
How to Maintain Bolt Patterns on Your Ford Bronco
Maintaining the bolt pattern is an important part of making sure your Ford Bronco’s wheels stay secure, and your car handles well. Here are some simple maintenance tips:
1. Tighten Lug Nuts Properly: Always use a torque wrench to tighten your lug nuts to the recommended torque (usually around 100-140 ft-lbs). Tighten them in a star pattern to make sure the pressure is even across the wheel.
2. Check Lug Nuts Regularly: After installing new wheels or rotating your tires, always re-torque the lug nuts after driving 50-100 miles. This ensures they stay tight and secure.
3. Clean the Wheel Hub and Lug Holes: Clean the wheel hub and lug holes to avoid rust and buildup. Dirt or debris can affect how well the wheel fits.
4. Inspect for Worn or Damaged Lug Nuts: Regularly check the lug nuts for signs of wear or rust. Replace damaged ones to avoid a loose wheel.
By following these simple steps, you’ll ensure your wheels stay secure and your Ford Bronco performs at its best.
Conclusion
Knowing your Ford Bronco’s bolt pattern is crucial when it comes to selecting the right wheels. Most Ford Bronco models use a 6×5.5 inches (6×139.7mm) bolt pattern, but it’s always a good idea to confirm this based on your specific model year.
Whether you check your owner’s manual, use an online tool, or measure the bolt pattern yourself, getting the right fit is essential for safe and smooth driving.
Maintaining your bolt pattern is just as important. Regularly check your lug nuts, ensure they are tightened correctly, and keep the wheel hub clean to prevent issues.
With the right knowledge and care, you can confidently upgrade or replace your wheels without any fitment issues. This will keep your Ford Bronco running safely and smoothly for many years.
Frequently Asked Questions
How do I find the bolt pattern for my Ford Bronco?
Check your owner’s manual, look for a sticker inside the driver’s door frame, or measure the bolt pattern yourself by counting the lug holes and measuring the distance between them.
Can I change the bolt pattern on my Ford Bronco?
Changing the bolt pattern is possible with adapters, but it’s not recommended because it may affect wheel alignment and vehicle safety. Stick with the factory bolt pattern for the best fit.
Can I use wheel spacers on my Ford Bronco?
Wheel spacers can help with wheel fitment, but they can also affect handling and safety. Only use quality spacers and install them correctly to ensure proper fitment.
How do I measure the bolt pattern myself?
To measure the bolt pattern, count the lug holes (6 for the Ford Bronco). Then, measure from the center of one lug hole to the center of the opposite hole.
