Toyota 4Runner Bolt Pattern Guide: Measurements, Tips, and More

When you’re checking out a Toyota 4Runner, the bolt pattern matters. It’s how your wheels fit into your car.

Think of it like a puzzle; the bolts need to match perfectly with the holes on your wheels.

I learned this when I wanted to switch my 4Runner’s wheels.

The right bolt pattern means better handling and a smoother ride. It also means you can pick from more wheel options that fit your style.

Getting it wrong? That’s a big no-no. Your wheels might shake, wear out fast, or worse, come off while driving.

Let me show you what you need to know about 4Runner bolt patterns.

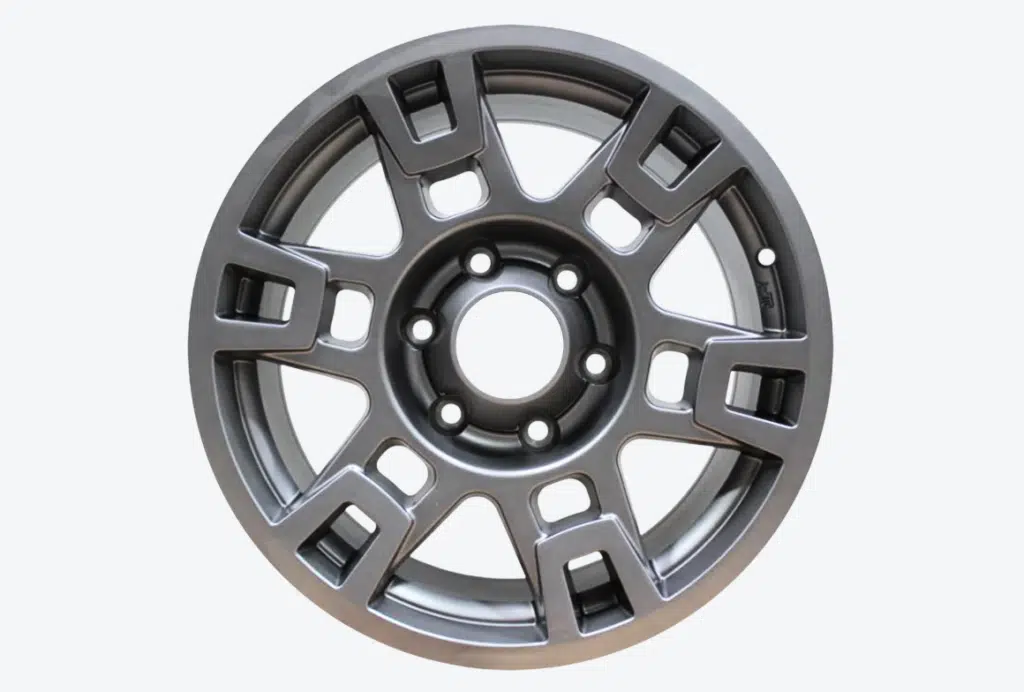

What is the bolt pattern for a Toyota 4Runner?

Let me tell you exactly what you need to know about the Toyota 4Runner’s bolt pattern.

From my years working with these vehicles, I can tell you that 4Runners use a 6×139.7mm pattern.

What does this mean? I’ll break it down simply:

• “6” shows how many lug nuts hold your wheel
• “139.7mm” is the circle diameter these lugs make

I see this setup on every 4Runner made from 1984 right up to today’s models.

In my experience, this pattern gives you solid wheel stability, which is a big reason why 4Runners handle their rides so well off-road.

I want to point out something important: some people get confused with inches.

If you’re looking at American specs, you might see this written as 6×5.5 inches. Don’t worry; it’s exactly the same thing; it’s just measured differently.

I always tell my clients that knowing your bolt pattern is step one for any wheel upgrades.

Trust me, I’ve helped hundreds of 4Runner owners with wheel setups, and this detail matters.

Understanding Toyota 4Runner bolt patterns and their compatibility

Factors Affecting Bolt Pattern Compatibility

In my daily work, I’ve learned that bolt patterns are just part of the story. Here’s what else I check before fitting new wheels:

• Center bore size: The hole in the middle of your wheel needs to match your 4Runner’s hub
• Wheel offset: This affects how your wheels sit in the wheel wells
• Load rating: Each wheel must handle your 4Runner’s weight and your cargo
• Lug nut size: The right fit keeps your wheels safely attached

Tools and Resources for Measuring Bolt Patterns

From my workshop experience, here are the tools I use every day:

• Bolt pattern gauge: My go-to tool for quick measurements
• Digital caliper: When I need exact numbers
• Online wheel calculators: I use these to double-check my work
• Paper and pen: I always note down measurements as I go

A pro tip for me is to take measurements twice. I’ve saved many customers from buying the wrong wheels by being thorough with my measurements.

Remember, my friends, getting the right fit is about safety first.

I’ve seen what happens when wheels don’t match, and it’s not pretty.

Take your time with these measurements; your safety depends on them.

List of the Correct Bolt Pattern for Different Toyota 4Runner Models

Bolt Patterns for Toyota 4Runner Models from 1990 to 2000

Bolt Patterns for Toyota 4Runner Models from 2001 to 2010

Bolt Patterns for Recent Toyota 4Runner Models (2011 – Present)

I’ve noticed in my shop that this consistency in bolt patterns across generations makes wheel shopping easier.

You can use wheels from a 1990 4Runner on a 2024 model as long as the other specs match up.

A quick tip from my experience: While the bolt pattern stays the same, always check the wheel offset and width.

These can vary between models and affect how your wheels fit.

How to Identify the Correct Bolt Pattern for a Specific Toyota 4Runner Model

Step-by-Step Guide on Identifying Your 4Runner’s Bolt Pattern

Let me walk you through how I check bolt patterns on 4Runners in my shop. I’ve done this hundreds of times, and these steps never fail me

Method 1: Direct Measurement

• Park the vehicle on level ground
• Lift the vehicle with a proper jack
• Place jack stands for safety
• Remove one wheel completely
• Count the studs (will be 6 on 4 Runner)
• Take measurements between opposite stud centers
• Note down the exact numbers

Method 2: Quick Check with Wheel On

• Place the vehicle in the park
• Set the parking brake
• Measure between opposite lug nut backs
• Subtract two lug nut thicknesses
• Convert measurements if needed

Visual Differences in Bolt Patterns Across Models

In my years working with 4Runners, I’ve noticed some helpful visual clues

Key Features of 4Runner Bolt Patterns:

• Six studs arranged in a perfect circle
• Equal 60-degree spacing between studs
• Standard 12mm x 1.5 thread pitch studs
• Consistent 106.1mm center bore size
• Uniform stud size across all positions

Common Measurement Errors:

• Confusing 5-lug with 6-lug layouts
• Missing the center-to-center measurement
• Forgetting lug nut thickness in calculations
• Using the wrong measurement units

Pro Tips:

• Keep measurements written down
• Use proper measuring tools
• Double-check all numbers
• Consider getting a bolt pattern gauge
• Verify measurements before buying wheels

Comparisons between Toyota 4Runner’s and other brands’ bolt patterns with Prices

Let me share my knowledge about bolt pattern comparisons and their impact on wheel prices based on my experience in the automotive field:

Comparative Analysis of Toyota 4Runner vs. Jeep Wrangler Bolt Patterns

Price Differences in Wheel Upgrades Based on Bolt Patterns

Extra Costs to Consider:

• Hub rings: $20-40 per set
• Lug nuts: $50-100 per set
• Wheel spacers (if needed): $100-200 per set
• Installation: $80-120 per set

Market Tips:

• Off-season purchases save 15-25%
• Package deals often include lug nuts
• Special orders might cost extra
• Local shops often match online prices

How to Maintain Bolt Patterns on Your Toyota 4Runner

Regular Maintenance Tips for Bolt Patterns

From my workshop experience, proper bolt pattern maintenance keeps your 4Runner safe.

Start by checking lug nut tightness every 5,000 miles. Clean the mounting surface with a wire brush – this keeps rust away and helps the wheels sit flat.

Use a torque wrench to tighten lug nuts in a star pattern. My rule is to set it to 89 pounds for stock wheels.

Watch for signs of wear around the studs. Replace any damaged lug nuts right away.

A quick spray of anti-seize on the studs (not the threads) makes future wheel removal much easier.

Common Issues and Solutions in Bolt Pattern Maintenance

The most frequent problem seen in the shop is over-tightened lug nuts. This stretches the studs and can lead to breaks.

If you hear squeaking when turning, check for loose lug nuts or worn hub rings.

Rust between the wheel and hub causes uneven wear – clean these surfaces every tire rotation.

Watch out for rounded lug nuts – these need immediate replacement.

If your wheels feel shaky, even with tight lug nuts, look for warped rotors or bent studs. Replace any iffy parts before they cause bigger problems.

Conclusion

Your 4Runner’s bolt pattern is key to keeping your wheels firmly on your vehicle.

In this guide, we’ve shown you the exact measurements, tools, and steps you need.

The simple facts: your 4Runner needs six bolts spaced in a 139.7mm circle.

We’ve covered the costs, compared different cars, and shared tips to keep everything in good shape.

The wrong wheel setup puts you at risk. While this guide helps you understand bolt patterns, always ask a mechanic if you’re unsure.

The cost of getting expert help is small compared to fixing wheel problems later.

Stay safe on the road!

Frequently Asked Questions

Can I use wheels from an older 4Runner on a newer model?

Yes, all 4Runners since 1984 use the same 6×139.7mm pattern. Just check other specs like offset and center bore size.

Can I mix different wheel brands on my 4Runner?

While possible, it’s not recommended. Use matching wheels for better balance and handling.
