    My Comprehensive Guide to Toyota RAV4 Bolt Patterns

    Paolo RomanoBy Paolo RomanoJanuary 2, 20257 Mins Read
    Facebook Twitter Pinterest LinkedIn WhatsApp Reddit Tumblr Email
    Share
    Facebook Twitter LinkedIn Pinterest Email

    Looking to learn about Toyota RAV4 bolt patterns?

    You’re in the right place.

    Bolt patterns might seem simple, but if you get them wrong, you can waste time and money when buying new wheels.

    For RAV4 owners, knowing your exact bolt pattern helps you make smart choices for replacements and upgrades.

    This guide will examine everything you need about RAV4 bolt patterns across different model years.

    I’ll break down:

    • The measurements you need
    • Which wheels fit your RAV4
    • Tips for checking your bolt pattern at home

    As a Toyota specialist with 15+ years of experience working with RAV4s, I’ve helped thousands of owners find the right wheel fits.

    By the end of this article, you’ll know exactly what to look for when shopping for wheels and how to avoid costly mistakes.

    There are no complex terms, just clear information to help you choose your RAV4.

    What is the bolt pattern for the Toyota RAV4?

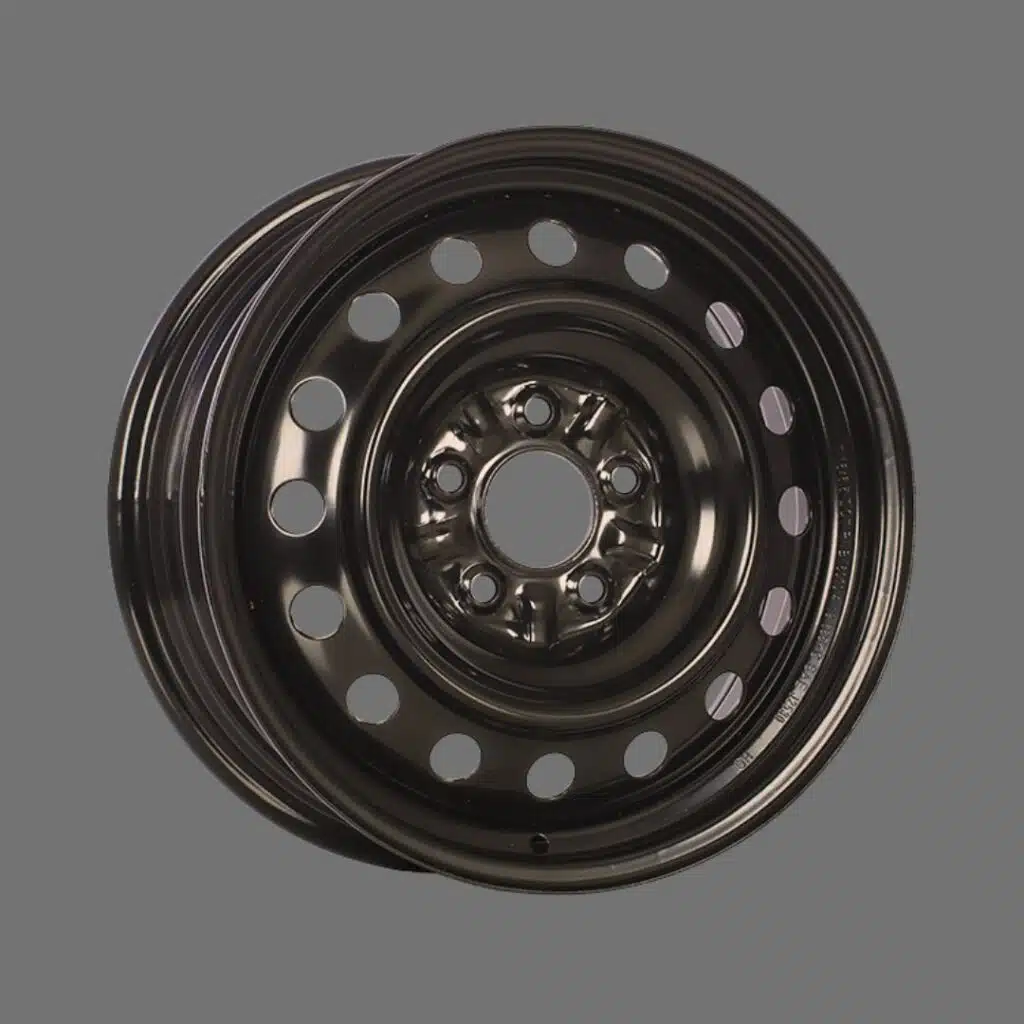

    What is the bolt pattern for the Toyota RAV4?

    A bolt pattern shows the number and distance between lug holes on your wheel.

    Think of it as your wheel’s fingerprint—it must match perfectly with your RAV4.

    For most modern RAV4s (2019-2024), the bolt pattern is 5×114.3mm.

    This means:

    • 5 lug holes
    • 114.3mm circle diameter
    • Center bore of 60.1mm

    Looking at older models? Here’s a quick breakdown:

    2013-2018 RAV4

    • 5×114.3mm pattern
    • 60.1mm center bore

    2006-2012 RAV4

    • 5×114.3mm pattern
    • 60.1mm center bore

    2001-2005 RAV4

    • 5×114.3mm pattern
    • 60.1mm center bore

    I’ve worked with these patterns for years, and here’s what you should know: Toyota kept the same bolt pattern across many RAV4 generations.

    This makes finding replacement wheels easier for you.

    Pro tip: Always measure your specific RAV4’s pattern before buying new wheels.

    While these numbers are standard, some rare variations exist.

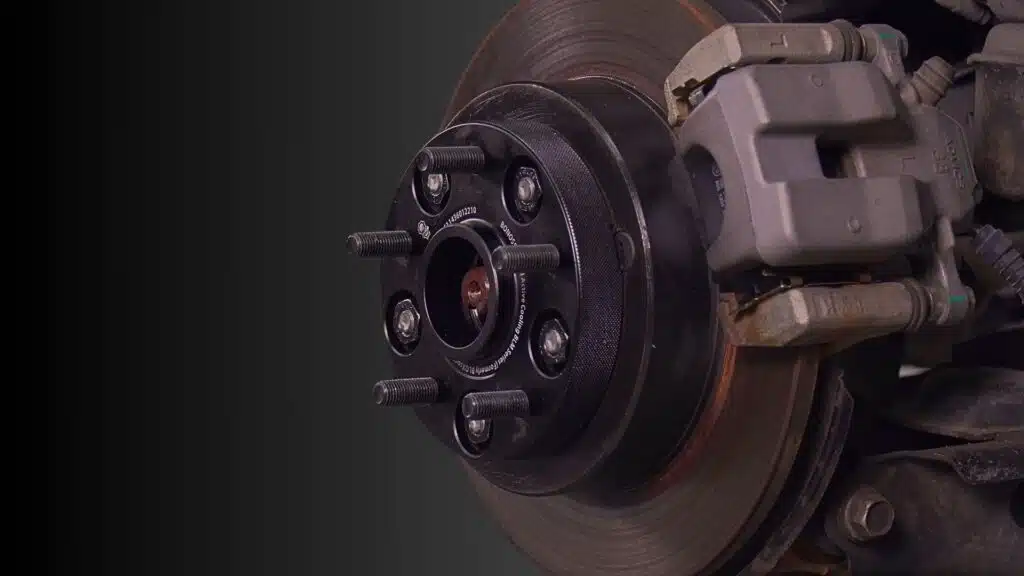

    Understanding Toyota RAV4 Bolt Patterns and Their Compatibility

    Let’s discuss what makes wheels fit your RAV4.

    It’s not just about the bolt pattern—several factors work together.

    The main factors that matter:

    • Bolt pattern (5×114.3mm)
    • Wheel offset
    • Center bore size
    • Wheel size and width

    Start by checking compatibility with these measurements.

    A wheel might have the right bolt pattern but the wrong offset, which could cause problems.

    Good news for RAV4 owners: Many Toyota models share your bolt pattern. This includes:

    • Camry (2002-present)
    • Highlander (2001-present)
    • 4Runner (2003-present)
    See also  Top 10 Drift Cars for Beginners and Pros

    But here’s what you need to watch for: Your RAV4’s center bore must be 60.1 mm in size.

    Some aftermarket wheels come with a larger bore and need hub-centric rings to fit properly.

    And about tire selection, your bolt pattern doesn’t directly affect tire choice.

    However, the wheel size you can use (based on bolt pattern compatibility) does limit your tire options.

    I’ve found that most RAV4s work best with:

    • 17-inch wheels for older models
    • 18-19 inch wheels for newer models

    A quick tip: Keep your vehicle’s year and trim level handy when shopping for wheels.

    This will help you get the right fit the first time.

    List of the Correct Bolt Pattern for the Toyota RAV4 Model

    I’ve put together a clear breakdown of RAV4 bolt patterns by generation.

    You’ll find everything you need in this simple chart.

    RAV4 Bolt Pattern Guide By Generation

    Generation Years Bolt Pattern Center Bore Stock Wheel Sizes
    1st Gen 1994-2000 5×114.3mm 60.1mm 16-17 inch
    2nd Gen 2001-2005 5×114.3mm 60.1mm 16-17 inch
    3rd Gen 2006-2012 5×114.3mm 60.1mm 17-18 inch
    4th Gen 2013-2018 5×114.3mm 60.1mm 17-18 inch
    5th Gen 2019-Present 5×114.3mm 60.1mm 17-19 inch

    Extra details you should know:

    • All RAV4 generations use a 5-lug pattern
    • The measurement 114.3mm equals 4.5 inches
    • Center bore size stayed the same across all years

    Looking at used wheels?

    Print this chart and take it with you. It helps prevent buying the wrong size.

    Note: While these specs are standard, always check your specific model’s manual for confirmation.

    How to Identify the Correct Bolt Pattern for the Toyota RAV4 Model

    Tools you’ll need

    • Measuring tape or ruler
    • Piece of paper and pencil
    • Bolt pattern gauge (optional)
    • Caliper (optional)

    Simple measuring steps

    1. Find the circle method

    • Put your paper on the wheel
    • Mark the center of two opposite lugs
    • Measure between these marks
    • This gives you your bolt circle diameter

    2. Center-to-center method

    • Pick any lug hole
    • Measure to the second hole (skip one)
    • Multiply this number by 1.701
    • This equals your bolt circle diameter

    Common mistakes to avoid:

    • Not measuring from the centers of the holes
    • Using the wrong measurement method for 5-lug wheels
    • Forgetting to convert inches to millimeters
    • Not checking both front and rear wheels
    See also  Resolving a Flashing Parking Brake Light: A Comprehensive Guide

    The easiest way is to look at your owner’s manual or inside your driver’s door frame.

    The bolt pattern is often listed there.

    Remember: If unsure about your measurements, ask a local tire shop to check. They can confirm your numbers in minutes.

    I always recommend double-checking your measurements.

    One small mistake could mean buying wheels that don’t fit.

    Comparison Between Toyota RAV4’s and Other Brands’ Bolt Patterns

    Want to know which wheels from other SUVs might fit your RAV4?

    Here’s what I’ve learned from years of working with different vehicles.

    Popular SUV Bolt Pattern Comparison

    Vehicle Model Years Bolt Pattern Center Bore Will It Fit RAV4?
    Toyota RAV4 2019-2024 5×114.3mm 60.1mm Yes (Original)
    Honda CR-V 2017-2024 5×114.3mm 64.1mm No
    Nissan Rogue 2014-2024 5×114.3mm 66.1mm No
    Ford Escape 2020-2024 5x108mm 63.4mm No
    Mazda CX-5 2017-2024 5×114.3mm 67.1mm No
    Hyundai Tucson 2022-2024 5×114.3mm 67.1mm No

    Important note: Even when bolt patterns match, different center bore sizes mean you’ll need hub-centric rings for proper fitting.

    Why this matters:

    • Wrong fits can cause vibration
    • Safety becomes a concern
    • Wheel bearings might wear faster
    • Your car’s handling could change

    Many people focus only on the bolt pattern numbers.

    But remember: the center bore must also match for a safe fit.

    How to Maintain Bolt Patterns on Your Toyota RAV4

    Keeping your wheel studs in good shape helps your wheels stay secure.

    Let me share some proven tips to help you maintain them properly.

    Basic cleaning steps

    • Clean each stud with a wire brush
    • Wipe with a clean rag
    • Apply a thin coat of anti-seize compound
    • Keep threads free from paint or debris

    During wheel changes

    • Never use an impact gun on lug nuts
    • Hand-tighten in a star pattern
    • Use a torque wrench for final tightening
    • Set torque to 76 lb-ft (103 Nm)

    Important safety check: Look at your wheel studs whenever you rotate tires.

    Signs you need immediate attention

    • Squeaking when turning
    • Rust around lug nuts
    • Hard-to-remove wheels
    • Visible damage to studs

    I recommend checking your lug nuts’ tightness after 50 miles of driving with new wheels.

    See also  My Guide About Understanding PVD Wheels

    This small step prevents big problems.

    A quick tip: Keep a small wire brush and anti-seize compound in your car.

    They’re handy for quick cleanups during tire changes.

    Conclusion

    Thank you for getting to the end of this guide about RAV4 bolt patterns.

    What matters most is that getting your bolt pattern right keeps you safe on the road and protects your investment.

    I’ve seen many RAV4 owners save both time and money just by knowing these basics.

    When you’re ready to buy new wheels, remember:

    • Check your specific model year
    • Measure twice before buying
    • Ask questions if you’re unsure

    Still have doubts? Take these numbers to your local tire shop.

    They’ll help confirm everything matches up perfectly.

    I hope this guide has made bolt patterns easier to understand.

    Your RAV4 deserves the right fit, and now you know how to achieve it.

    Got questions?

    Drop them in the comments below. I’m here to help you get it right.

    Frequently Asked Questions

    How Much Torque Should I Use When Installing RAV4 Wheels?

    Use 76 pound-feet (103 Nm) of torque.

    Always tighten in a star pattern and recheck after 50 miles of driving.

    Can I Use Honda CR-V Wheels on My RAV4?

    Not directly.

    While the bolt pattern matches (5×114.3mm), you’ll need hub-centric rings to accommodate the different center bore sizes.

    What Size Socket Do I Need for RAV4 Lug Nuts?

    You need a 21mm socket for most RAV4 models.

    Keep both regular and thin-wall sockets handy for easier access.

    Do All RAV4 Generations Have the Same Bolt Pattern?

    All RAV4 generations from 1994 to the present use the same 5×114.3mm bolt pattern with a 60.1mm center bore.

    What Happens if I Use the Wrong Bolt Pattern?

    Using incorrect bolt patterns can cause wheel vibration, unsafe driving conditions, and potential wheel separation.

    Always verify measurements before buying.
