The Toyota Tundra is one of the market’s most popular full-size pickup trucks, known for its reliability and strong performance.
Understanding your Tundra’s bolt pattern is crucial for proper wheel and vehicle safety if you want to upgrade your wheels or replace existing ones.
The bolt pattern, which refers to the arrangement and spacing of lug holes on your wheel hub, is a critical measurement of wheel compatibility.
Knowing the specific bolt pattern can save time and money and potential headaches for Toyota Tundra owners, particularly those considering wheel modifications or replacements.
What Is a Toyota Tundra’s Bolt Pattern?
The Toyota Tundra’s bolt pattern varies depending on the model year, with two notable configurations.
The 2022 Tundra features a 6×139.7 bolt pattern, meaning it has six lug holes arranged in a circle with a diameter of 139.7 millimeters (equivalent to 5.5 inches).

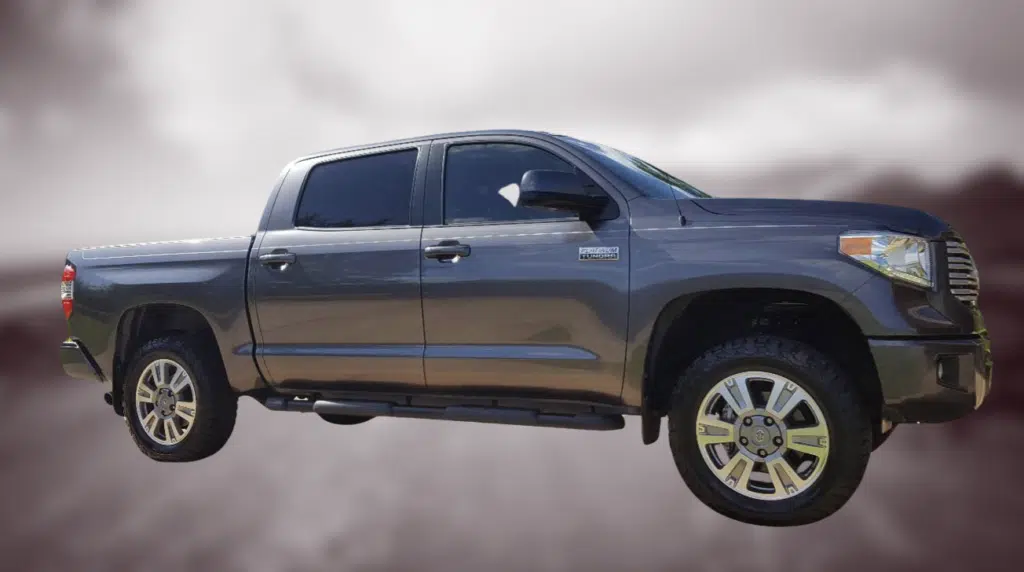

Earlier Tundra models used a 5×150 bolt pattern, with five lug holes spaced 150 millimeters apart. This important measurement determines wheel compatibility and is crucial for proper fitment.
For owners looking to switch between different bolt patterns, wheel adapters can safely convert from one pattern to another, such as from 6×139.7 to 5×150.
Why do Bolt Patterns Matter?
Understanding bolt patterns is crucial for Toyota Tundra owners as they impact wheel compatibility and vehicle safety.
Installing wheels with incorrect bolt patterns can lead to serious issues like vibrations and wheel wobbling, potentially damaging your truck’s suspension system.
The right bolt pattern ensures proper wheel fitment; using the wrong one can compromise your vehicle’s structural integrity and create unsafe driving conditions.
For Tundra owners considering wheel upgrades or replacements, matching the correct bolt pattern isn’t just about fitment – it’s about ensuring your vehicle’s safety, proper weight distribution, and preserving the truck’s performance capabilities.
Toyota Tundra Bolt Patterns by Model
The Toyota Tundra has seen significant changes in its bolt patterns across different generations.
The 2022 and newer Tundra models feature a 6×139.7 bolt pattern (also known as 6×5.5 inches), a notable change from the previous generation’s 5×150 pattern.
This modification means that wheels from older Tundra models aren’t directly compatible with the newer versions without adapters.
The change in bolt pattern was part of Toyota’s engineering updates for the latest generation. For those wanting to use wheels with different bolt patterns, wheel adapters can convert from 6×139.7 to other patterns like 5×150.
When considering wheel upgrades, verifying the specific bolt pattern for your Tundra’s model year and trim level is crucial to ensure proper fitment and safety.
How to Measure Bolt Patterns?
Measuring bolt patterns accurately requires specific tools and a systematic approach. The essential tools needed are a measuring tape or caliper for precise measurements and a ruler or straight edge for finding center points.
The process involves counting the number of lug holes in the wheel hub.
For a 5-lug pattern, measure from the center of one lug hole to the outer edge of the hole directly across. For 6-lug patterns, measure from the center of one lug to the center of the third lug hole (skipping one in between).
To get the exact diameter, multiply the measured distance by 1.05 for greater accuracy. Measuring in millimeters is important for precision, as most bolt patterns are specified in metric measurements.
Taking multiple measurements and averaging them is recommended for the most accurate results.
Toyota Tundra’s vs. Competitor’s Patterns
The Toyota Tundra’s 6×139.7 bolt pattern (newer models) sets it apart from some key competitors in the full-size truck market.

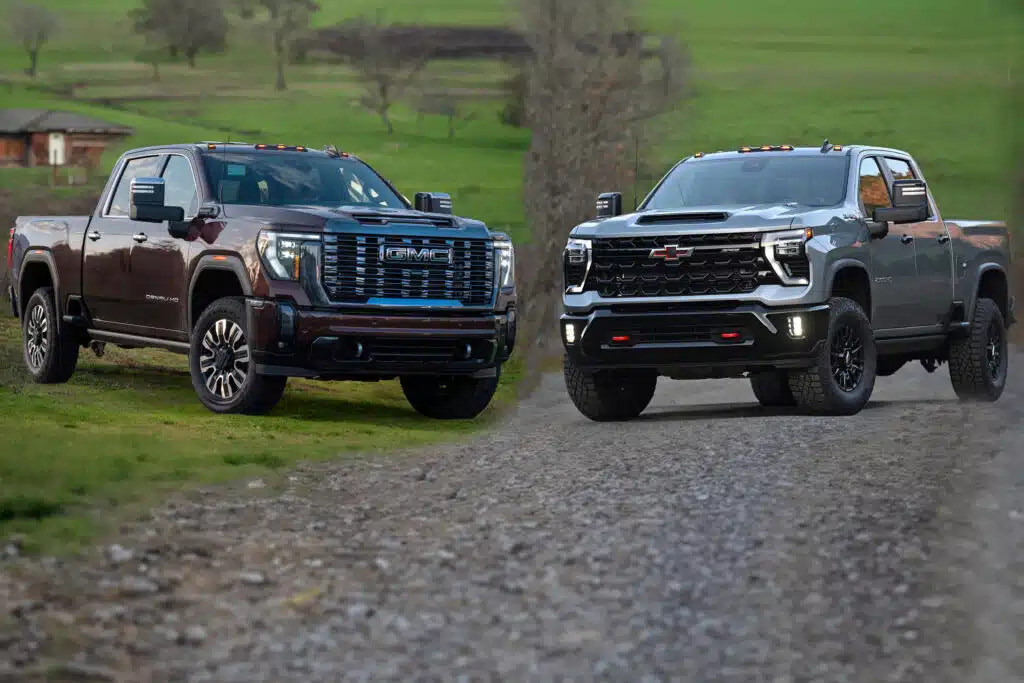

While the Ford F-150 uses a 6×135 pattern and Ram trucks typically use a 5×139.7 pattern, the Chevrolet Silverado and GMC Sierra share the Tundra’s 6×139.7 configuration.
These differences can have significant cost implications for truck owners considering wheel upgrades or replacements.
Owners switching between brands may need wheel adapters, which can cost anywhere from $100 to $400 per set.
The shared pattern between Tundra and GM trucks offers more wheel options and potentially lower costs due to broader compatibility.
However, using adapters to fit different patterns can add to the overall expense and may affect wheel performance and warranty coverage.

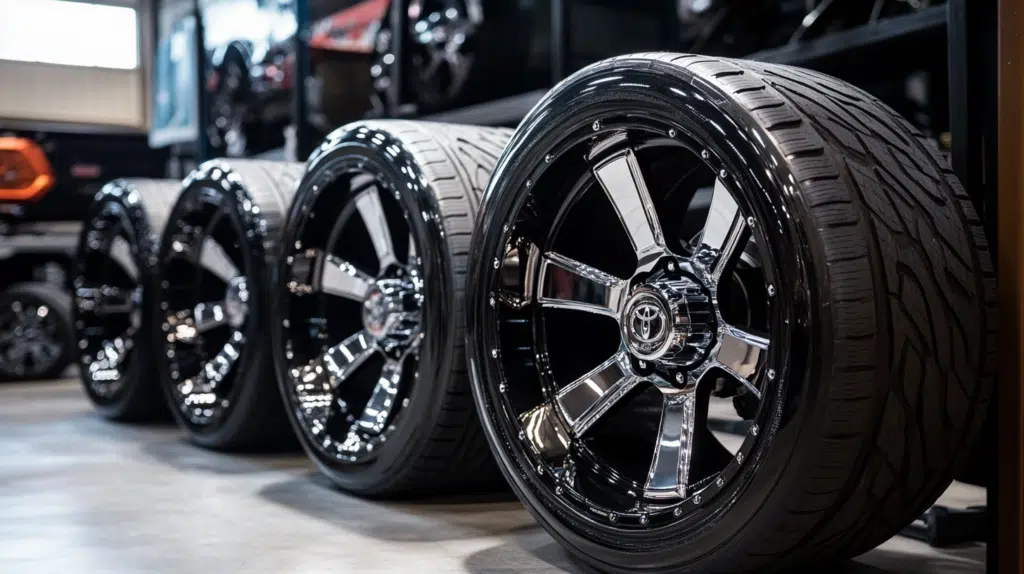

Popular Wheels For Toyota Tundra
The Toyota Tundra’s wheel compatibility varies across generations, with newer models like the 2022 Tundra featuring a 6×139.7 bolt pattern, while earlier versions used different patterns, including 5×150.
Many aftermarket wheels are available for the Tundra, but proper fitment requires careful attention to both bolt pattern and hub bore size.
For owners looking to upgrade, wheel adapters can help bridge compatibility gaps, allowing the installation of 5-lug wheels on 6-lug hubs.
Popular aftermarket options often have hub-centric designs to ensure proper mounting and balancing.
When selecting wheels, it’s crucial to consider the bolt pattern and factors like offset, backspacing, and hub bore diameter to maintain optimal performance and safety.
Maintaining your Tundra’s bolt pattern
Maintaining your Toyota Tundra’s bolt pattern is crucial for wheel security and longevity.
To prevent rust and lug damage, cleaning the wheel hub surface and lug nuts regularly is essential, as well as applying a thin coat of anti-seize compound on the threads while being careful to avoid getting it on the lug nut seats.
Always follow the star pattern sequence for tightening when installing wheels, and use a torque wrench to achieve proper specifications.
For optimal performance, examine the lug holes periodically for signs of elongation or wear and ensure all mounting surfaces are free from dirt and corrosion before reinstallation.
This preventive maintenance helps maintain proper wheel fitment and vehicle safety.
Final Words
Understanding and maintaining your Toyota Tundra’s bolt pattern is essential for performance and safety.
Proper wheel fitment and maintenance are crucial for your truck’s longevity if you’re dealing with the 6×139.7 pattern on newer models or the 5×150 on earlier versions.
Regular inspections, correct torque specifications, and proper cleaning of lug nuts and mounting surfaces will help prevent common issues like rust and misalignment.
Always verify compatibility or use appropriate adapters to ensure proper fitment when upgrading to aftermarket wheels.
Remember that investing time in wheel maintenance and making informed choices about wheel upgrades will enhance your Tundra’s appearance and contribute to its reliable performance and safety on the road.
