Are you considering upgrading or replacing the wheels on your PT Cruiser? It’s important to understand the correct bolt pattern first.
The bolt pattern determines how the wheel attaches to your vehicle and ensures everything fits properly.
A mismatch in the bolt pattern can lead to major issues, like misalignment, vibrations, or even safety risks while driving.
In this guide, I’ll break down what a bolt pattern is, how to find the right one for your PT Cruiser, and why getting this right is so important.
I’ll also guide you through measuring the bolt pattern and offer tips on other factors like wheel size and offset affecting wheel fitment.
Whether upgrading for performance or replacing old wheels, understanding these key details will help you avoid mistakes.
You’ll feel confident choosing the right wheels for your PT Cruiser by the end.

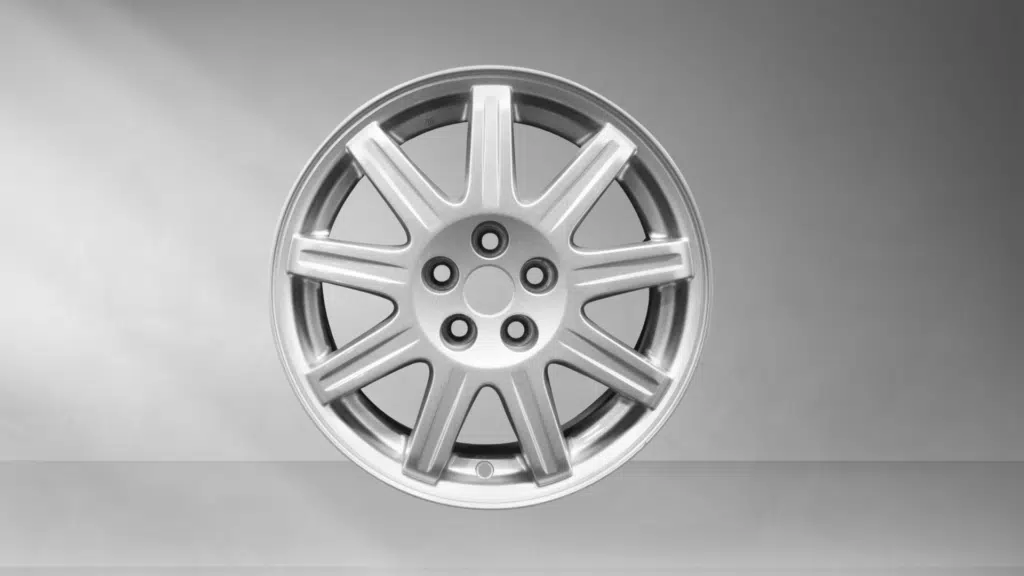

What is the Bolt Pattern for the PT Cruiser?
Breaking Down the Bolt Pattern
The bolt pattern of a vehicle refers to the number of bolt holes on the wheel and the distance between them.
For the PT Cruiser, the common bolt pattern is 5x100mm, meaning the wheel has five bolts, and the distance between the center of one bolt hole to the center of the next is 100mm.
The correct bolt pattern ensures that the wheels fit snugly on the vehicle’s wheel hub.
If the pattern is off, the wheel won’t align properly, which can lead to safety and performance issues.
Why the Correct Bolt Pattern is Important
The right bolt pattern is essential to ensure the wheels are properly secured to your PT Cruiser.
A mismatch can lead to dangerous driving conditions, alignment problems, and even cause the wheel to come loose while driving.
Sticking to the exact specifications for the safest and most reliable fit is always best.
List of the Correct Bolt Patterns for PT Cruiser Models
| PT Cruiser Model Year | Bolt Pattern | Wheel Size Range | Hub Bore Size | Other Notes |
|---|---|---|---|---|
| 2001-2005 PT Cruiser | 5x100mm | 15-17 inches | 63.4mm | The standard for early models |
| 2006-2010 PT Cruiser | 5x100mm | 16-17 inches | 63.4mm | Same bolt pattern across most trims |
| PT Cruiser Convertible | 5x100mm | 16-17 inches | 63.4mm | Convertible models share the same bolt pattern |
Key Takeaways:
- All PT Cruiser models from 2001-2010 use the 5x100mm bolt pattern, which makes it easy to swap wheels between different model years, as long as the size and offset are compatible.
- The hub bore size for PT Cruiser is 63.4mm, so ensure your wheels match this measurement.
- Wheel sizes vary slightly by trim level but are typically in the 15-17 inch range. Be sure to check the specific wheel size for your vehicle model.
Factors to Consider When Choosing New Wheels
Hub Bore Size and Compatibility
The hub bore size is the diameter of the hole in the wheel that fits over the vehicle’s wheel hub.
For the PT Cruiser, the hub bore size is 63.4mm.
It’s important to ensure that the hub bore of the wheel matches your vehicle’s specifications.
A mismatched hub bore size can cause wheel fitment issues and even make the wheel sit unevenly, leading to poor performance and handling.
Wheel Size and Offset
The wheel size and offset also play a crucial role in ensuring the wheels fit properly on your PT Cruiser.
Most PT Cruiser wheels range from 15 to 17 inches in diameter, depending on the trim level.
The offset refers to the position of the wheel’s mounting surface in relation to its centerline.
Incorrect offset can cause the wheels to rub against the suspension or fender, negatively affecting your vehicle’s handling and safety.
How to Identify the Correct Bolt Pattern for Your PT Cruiser
Measuring the Bolt Pattern
If you’re unsure about the bolt pattern for your PT Cruiser, you can measure it yourself. Here’s how:
- Count the number of bolt holes: Your PT Cruiser will have five bolt holes on the wheels.
- Measure the distance between the centers of adjacent bolt holes: To find the bolt pattern, measure the distance from the center of one bolt hole to the center of the next. For the 5x100mm pattern, the distance will be 100mm.
Using a measuring tape or caliper can help you get an accurate measurement.
Alternatively, a bolt pattern gauge is a tool designed for this purpose, which makes the process easier.
Online Tools and Professional Help
If you’re still unsure about your measurements, there are online tools like Wheel-Size.com or Tire Rack that let you input your vehicle’s year and model to find the correct bolt pattern.
You can also visit an auto shop, where a professional can measure the bolt pattern for you.
Comparison of PT Cruiser Bolt Pattern with Other Vehicles
Here’s the comparison of the PT Cruiser’s bolt pattern with other vehicles:
| Vehicle Model | Bolt Pattern | Wheel Size Range | Hub Bore Size | Other Notes |
|---|---|---|---|---|
| PT Cruiser | 5x100mm | 15-17 inches | 63.4mm | Standard bolt pattern for all PT Cruiser models |
| Honda Civic | 4x100mm / 5×114.3mm | 14-17 inches | 56.1mm | 5×114.3mm for some models; check the trim |
| Volkswagen Jetta | 5x100mm | 15-17 inches | 57.1mm | Same bolt pattern, compatible with PT Cruiser |
| Toyota Corolla | 5x100mm | 15-17 inches | 54.1mm | The bolt pattern matches the PT Cruiser; check the offset |
| Chevrolet Malibu | 5x115mm | 16-18 inches | 70.3mm | The bolt pattern differs (5x115mm) and is not directly compatible |
| Nissan Sentra | 4x100mm / 5×114.3mm | 15-16 inches | 59.1mm | 5×114.3mm available, but 5x100mm is not the same |
| Subaru Impreza | 5x100mm | 15-17 inches | 56.1mm | The bolt pattern is the same, making it compatible with the PT Cruiser |
Key Takeaways:
- PT Cruiser shares the 5x100mm bolt pattern with models like the Volkswagen Jetta, Honda Civic, and Toyota Corolla, making it easy to swap wheels across these vehicles.
- Some vehicles, like the Chevrolet Malibu, use a 5x115mm bolt pattern, which is not directly compatible without adapters.
- Hub bore sizes and wheel sizes may vary, so always double-check before swapping.
How to Maintain the Bolt Pattern on Your PT Cruiser
Regular Wheel Inspections
Once you have the correct wheels installed on your PT Cruiser, it’s important to check the lug nuts regularly to ensure they’re tight.
Over time, vibrations from driving can cause lug nuts to loosen, leading to alignment problems or even cause the wheel to come off.
Clean the Hub and Bolt Areas
Dirt, rust, and debris can build up around the bolt holes and the wheel hub, affecting how the wheel fits.
Regularly clean these areas with a wire brush to ensure the wheels sit securely.
Clean hubs also prevent corrosion, making it harder to remove the wheel in the future.
Proper Tightening
When you install new wheels, make sure you tighten the lug nuts correctly.
Always use a torque wrench to ensure you don’t over-tighten or under-tighten the lug nuts, which can lead to damage or improper fit.
Tips for Installing Wheels on Your PT Cruiser
Installing new wheels on your PT Cruiser can be an exciting upgrade, but it’s important to follow the right steps to ensure everything is done safely and correctly.
Double-Check Bolt Pattern and Specifications
Before purchasing or installing new wheels, make sure the 5x100mm bolt pattern matches your PT Cruiser’s specifications.
You should also check the hub bore size and wheel offset for compatibility.
Clean the Hub and Wheel Area
Dirt, rust, and old debris can interfere with the fit of your new wheels.
Clean both the wheel hub and bolt holes on the wheel to ensure proper seating and avoid any misalignment issues.
Use a Torque Wrench
When installing your wheels, it’s important to tighten the lug nuts to the manufacturer’s recommended torque specification.
Using a torque wrench helps avoid over-tightening or under-tightening, both of which can lead to safety risks.
Tighten in a Star Pattern
Tighten the lug nuts in a star pattern, alternating across the wheel.
This ensures even pressure is applied, preventing any wobble or misalignment.
Check After Driving
After installing your wheels, take a short test drive, then check the lug nuts again to ensure they’re still tight.
It’s normal for them to settle after the first few miles.
Common Mistakes to Avoid When Upgrading Your PT Cruiser Wheels
Upgrading your PT Cruiser’s wheels can enhance its appearance and performance. However, some common mistakes can cause issues down the road. Here’s what to watch out for:
Choosing the Wrong Bolt Pattern
One of the most common mistakes is buying wheels with the wrong bolt pattern.
The PT Cruiser uses a 5x100mm bolt pattern, so always double-check that the wheels match before purchasing.
Ignoring Offset and Backspacing
If you don’t account for the offset and backspacing of the new wheels, you could run into problems with wheel alignment, suspension rubbing, or even clearance issues.
Always ensure the offset matches your vehicle’s specifications.
Overlooking Hub Bore Size
The hub bore size is also crucial.
If the wheel’s hub bore is too large or small, it won’t sit properly on the vehicle’s wheel hub.
For the PT Cruiser, the hub bore size is 63.4mm, so make sure the new wheels fit snugly.
Going Too Big with Wheel Size
While larger wheels can look great, they can also affect your car’s handling and ride comfort.
Stick to the recommended wheel size or check how the new size will affect your ride, especially if you’re upgrading to wheels larger than the stock size.
Not Checking Tire Compatibility
New wheels often mean new tires, but many people forget to verify that the tires will fit properly with their new wheels.
Always ensure that the tires are compatible with your selected wheels in size and load rating.
Conclusion
In conclusion, knowing the correct bolt pattern for your PT Cruiser is essential for making sure your wheels fit properly.
The 5x100mm bolt pattern is standard for all PT Cruiser models, so this is the first step in finding the right wheels.
However, it’s important to remember that other factors like hub bore size, wheel size, and offset also affect wheel fitment.
These elements work together to ensure your new wheels are securely attached and perform well.
If you’re unsure about your bolt pattern, measuring it is easy, or you can use online tools to confirm your vehicle’s specifications.
Don’t forget to check the hub bore size and wheel offset, as these can cause issues if not properly matched.
Regularly checking your wheels and bolt pattern will help keep everything in good shape.
Taking the time to verify these details will help you avoid mistakes and ensure that your new wheels fit your PT Cruiser correctly.
This leads to better safety, performance, and a smoother ride.
Frequently Asked Questions
Why does the bolt pattern matter for my PT Cruiser?
The bolt pattern ensures that the wheels fit securely. If the pattern is wrong, the wheels will not attach properly, which can cause safety issues or affect your car’s performance.
How do I measure the bolt pattern for my PT Cruiser?
To measure the bolt pattern, count the number of bolt holes on your wheel (5 bolts). Then, measure the distance between the center of one bolt hole and the center of the next. For 5x100mm, the distance will be 100mm.
Can I put larger wheels on my PT Cruiser?
Yes, you can. But make sure the wheels are compatible with your PT Cruiser’s bolt pattern, hub bore size, and offset. Larger wheels may affect handling, so check the specs carefully.
Can I swap wheels between a PT Cruiser and a Dodge Neon?
Yes, the Dodge Neon shares the same 5x100mm bolt pattern as the PT Cruiser, so you can swap wheels as long as the size and offset match.
How often should I check the bolt pattern on my PT Cruiser?
It’s a good idea to check the bolt pattern when changing wheels or tires or if you plan to upgrade to new wheels. This ensures the new wheels will fit correctly.
