Ever wondered what those numbers on your wheel mean?
4×108 wheels refer to the bolt pattern where there are four lugs spaced in a circle with a diameter of 108mm. This measurement is crucial for your car’s setup.
Knowing the right wheel specs matters for both safety and how your car handles on the road.
Incorrect wheels can lead to poor handling, uneven tire wear, and even dangerous driving conditions.
In this article, we’ll break down everything about 4×108 wheels:
- What the numbers actually mean
- Which car makes and models use this pattern
- How to choose the right wheels for your vehicle
I’ve helped hundreds of car owners find the perfect wheel fit, and I’ll guide you through the entire process step-by-step.

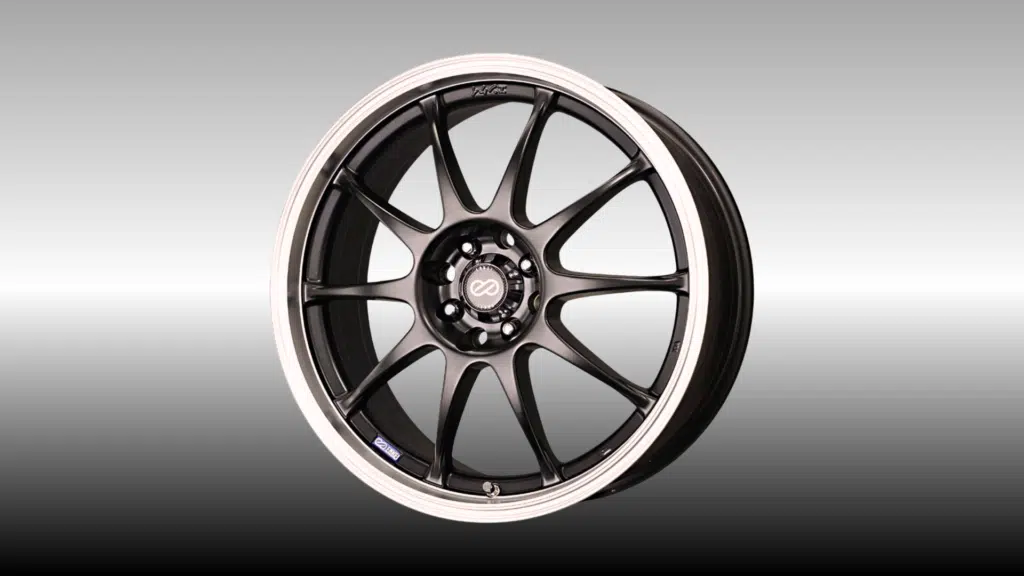

Features to Look for In 4×108 Wheels
Bolt Pattern Details and Compatibility
The 4×108 pattern means four bolts arranged in a circle with a diameter of 108 mm.
Not all 4-bolt wheels fit your car, so you need to match this exact pattern.
I’ve seen too many people buy wheels with similar but incorrect patterns, like 4×100 or 4×114.3, which won’t fit properly.
Some cars that use 4×108 wheels include:
- Ford Fiesta and Focus
- Older Peugeot models
- Some Citroën vehicles
- Certain Volvo cars
Material Types: Alloy vs. Steel
You have two main choices for wheel materials:
Alloy wheels are lighter and improve handling. I prefer them for everyday driving because they also help with fuel economy.
They look nicer but cost more and can crack if you hit a big pothole.
Steel wheels are heavier but tougher. You might want these if you drive on rough roads often.
They’re cheaper to replace if damaged, but they add weight to your car.
Offset and Center Bore Facts
Offset refers to where the mounting surface sits in relation to the wheel’s centerline. It’s measured in millimeters and can be positive, negative, or zero.
The wrong offset can cause:
- Tires rubbing against fenders
- Stress on wheel bearings
- Poor handling
The center bore is the hole in the middle of the wheel. It must be equal to or larger than the hub of your car.
If it’s larger, you’ll need hub-centric rings to fill the gap.
Weight and Durability Concerns
Lighter wheels improve:
- Acceleration
- Braking
- Fuel economy
But there’s a balance. Very light wheels might not be as strong. I recommend checking the load rating to make sure the wheels can handle your car’s weight.
For winter driving or rough roads, consider slightly heavier but stronger wheels. You’ll get better durability when the conditions get tough.
Popular Vehicle Models That Use 4×108 Wheels
Knowing the car’s needs is the first step to finding the right wheels. I’ve worked with many vehicles using the 4×108 bolt pattern, and you might be surprised by the variety.
Common Cars with 4×108 Wheels
| Brand | Models | Years | Notes |
|---|---|---|---|
| Ford | Fiesta | 2002-2017 | ST models may have different specs |
| Ford | Focus | 1998-2004 | First generation only |
| Ford | Escort | 1990-2002 | Including RS and XR3i variants |
| Peugeot | 206 | 1998-2010 | All trim levels |
| Peugeot | 306 | 1993-2002 | Sedan and hatchback models |
| Citroën | Saxo | 1996-2004 | Including VTS sports models |
| Citroën | C2, C3 | 2002-2010 | Some special editions vary |
| Volvo | 850 | 1991-1997 | Sedan and wagon versions |
| Volvo | S40/V40 | 1995-2004 | First generation only |
| Alfa Romeo | 33 | 1983-1995 | Later models only |
Key Differences Between Manufacturers
I’ve noticed that Ford, Peugeot, and Volvo all use 4×108 wheels, but you can’t always swap them directly.
Here’s why:
- Center bore size varies: Ford often uses 63.4mm while Peugeot uses 65.1mm
- Stock offset differences: Volvo typically uses higher offsets than Ford
- Load ratings change: Heavier vehicles need stronger wheels
Did you know? Some newer Ford models have switched to 4×100 or 5×108 patterns, so always check your specific model year.
When buying universal 4×108 wheels, make sure they have an enlarged center bore that can fit all compatible vehicles.
You’ll need hub-centric rings to ensure a proper fit.
Benefits of Upgrading to 4×108 Wheels
1. Improved Handling and Stability
Newer 4×108 wheels with wider rims can improve your grip on the road. I notice this most when taking corners at speed.
Your car will feel more planted and responsive. The right wheels can also reduce brake fade during hard stops.
2. Aesthetic Enhancements
Nothing changes your car’s look faster than new wheels. The 4×108 pattern offers hundreds of styles.
I’ve seen plain cars transform with the right set of wheels. Colors, finishes, and spoke designs let you show your personal style.
3. Weight Reduction Benefits
Lighter alloy wheels cut down unsprung weight. This helps your suspension work better over bumps.
After upgrading, you might feel a smoother ride. Your car can also accelerate a bit quicker with less rotating mass to move.
4. Brake Cooling Improvements
Better-designed wheels allow more air to reach your brakes. This prevents overheating during hard driving.
I’ve tested this on track days, and the difference is clear. Your brake pads might even last longer with proper cooling.
5. Resale Value Consideration
Quality wheels can boost your car’s appeal when selling. Just keep the original wheels to include with the sale.
Buyers often pay more for cars with tasteful wheel upgrades. I’ve sold several cars faster because of the nice wheels.
Comparing 4×108 Wheels to Other Bolt Patterns
Understanding different bolt patterns helps you shop smarter. I compare wheel patterns all the time, and knowing the differences can prevent costly mistakes.
Key Differences Between Common Bolt Patterns
| Bolt Pattern | Common Vehicles | Compared to 4×108 | Interchangeable? |
|---|---|---|---|
| 4×100 | Honda Civic, Mazda Miata, BMW E30 | 8mm smaller diameter | No – too small |
| 4×108 | Ford Focus, Peugeot, Citroën | Our reference pattern | Yes – perfect fit |
| 4×114.3 | Nissan, Hyundai, Kia | 6.3mm larger diameter | No – too large |
| 5×108 | Newer Ford, Volvo | Same diameter, five bolts | No – different bolt count |
| 5×114.3 | Toyota, Honda, Nissan | Different diameter and bolt count | No – completely different |
| 4×110 | Some Daewoo models | Only 2mm larger | No – still won’t fit |
How Does Bolt Pattern Affect Wheel Fitment?
The bolt pattern is non-negotiable. I can’t stress this enough.
Your wheels must match your car’s pattern exactly. Even a 1mm difference can prevent proper installation.
What happens with the wrong pattern:
- Bolts won’t line up with the holes
- Wheels can’t be secured properly
- Creates a serious safety risk
Using Wheel Adapters: Pros and Cons
| Adapter Type | What It Does | Pros | Cons |
|---|---|---|---|
| Bolt-on Spacers | Changes bolt pattern | Allows using non-matching wheels | Adds extra width and stress |
| Hub-centric Adapters | Changes pattern and maintains center alignment | Better balance and less vibration | Expensive, adds complexity |
| Wobble Bolts | Special bolts that fit multiple patterns | Simple, no permanent changes | Limited applications, not for all wheels |
How to Maintain and Care for 4×108 Wheels?
1. Regular Cleaning Routine
I wash my wheels every two weeks, and you should, too. If left too long, road grime, brake dust, and salt can eat away at the finish.
Use a gentle soap made for cars—never dish soap, which can strip protective coatings. Warm water and a soft brush work well for most dirt.
Try a detailing brush for tight spots between spokes. Always rinse thoroughly to remove all soap.
2. Avoiding Harsh Chemicals
Strong cleaners might seem to work faster, but they can damage your wheels. I avoid anything containing acid or strong solvents.
You should check the pH of your wheel cleaner—it should be neutral. If your cleaner says “professional use only” or warns about skin contact, it’s probably too strong for regular use.
3. Proper Drying Techniques
If ignored, water spots can be permanent. After washing, I dry my wheels completely with a microfiber towel.
You might think air drying is fine, but minerals in water leave spots that can etch into the finish over time.
Pay special attention to lug nut areas and inside barrel surfaces where water hides.
4. Applying Protective Coatings
A good wheel sealant or wax creates a barrier against dirt and makes future cleaning easier. I apply a coating every three months.
You only need a thin layer—more isn’t better here. Quality products like wheel wax or ceramic coatings can last several months and repel brake dust.
5. Inspecting for Damage
Each time I clean my wheels, I check for problems. You should look for:
- Cracks near lug holes
- Bent edges or dents
- Missing chunks of metal
- Unusual wear patterns
- Loose or missing weights
Early detection prevents bigger issues. Small cracks can grow if ignored, potentially causing wheel failure.
6. Checking Tire Pressure Regularly
Proper tire pressure helps protect your wheels. You should maintain the pressure recommended in your owner’s manual, not what’s printed on the tire.
Underinflated tires make your wheels more vulnerable to damage from potholes and curbs.
7. Seasonal Storage Considerations
Proper storage is important if you swap wheels seasonally. I clean them thoroughly before storage. They should be kept in a cool, dry place, away from chemicals.
Stack them flat or hang them from wall-mounted racks—never lean them against each other, which can cause warping.
8. Addressing Curb Rash
We all occasionally hit curbs. I fix minor scrapes with sandpaper and touch-up paint. For small damages, you can find wheel repair kits.
For deeper issues, professional repair shops can restore the wheel to near-perfect condition without breaking the bank.
Tips for Choosing the Right 4×108 Wheels
1. Understanding Load Ratings
Every wheel comes with a weight limit it can safely handle. I always check this number before buying.
You should confirm that your chosen wheels can support your vehicle’s weight plus cargo. Look for the load rating stamped on the wheel or in the product details.
A wheel with a too-low rating can bend or break under stress. Most passenger cars need wheels rated for at least 1,000 pounds each, but heavier vehicles require more.
2. Checking Tire Compatibility
Not all tires fit all wheels of the same diameter. I pay close attention to width specifications. You need to match your tire’s width to the wheel’s width range.
Wheels that are too narrow or too wide for your tires create safety risks. The tire sidewall shows its compatible rim width range (like “fits 6-7.5 inch rims”).
Stick within this range for proper tire seating and performance.
3. Selecting Proper Diameter
Bigger isn’t always better. I’ve seen many cars ruined by wheels that were too large.
Your wheel diameter affects everything from speedometer accuracy to ride comfort. You can usually go up or down one inch from stock size without major issues.
Want to go larger? The combined wheel and tire diameter should remain close to the original to maintain proper clearance.
4. Considering Offset Carefully
Offset determines how your wheels sit in the wheel wells. I measure this carefully for each car.
You need to stay within about 5mm of your factory offset to avoid handling problems.
Too much change can cause rubbing or poor handling. Wheels with the wrong offset can also put extra stress on your wheel bearings, leading to premature failure.
5. Verifying Center Bore Size
This small detail causes big headaches when overlooked. I always check the center bore measurement.
You need a center bore at least as large as your car’s hub diameter. Too small a bore will not fit, and too large will require hub-centric rings to fill the gap.
Without proper centering, wheels can cause vibration even when perfectly balanced.
6. Buying From Trusted Sources
I’ve seen too many fake “brand name” wheels that failed during normal driving.
You should purchase only from established retailers with solid return policies. Good wheel sellers offer proper documentation and warranties.
Avoid deals that seem too good to be true – they usually are. Quality wheels aren’t cheap, but they’re less expensive than fixing damage from a wheel failure.
7. Reading Real Customer Reviews
Before buying, I read what other owners of my car model say about specific wheels.
You can learn about fitment issues and quality concerns this way. Look for reviews from people with the same car as yours.
Photos in reviews help verify how the wheels actually look installed, which can be different from professional product photos.
Conclusion
Choosing the right 4×108 wheels matters for both safety and performance.
We’ve covered what this bolt pattern means, which cars use it, and how to select wheels that fit your specific needs.
Remember to check all specifications—not just the bolt pattern, but also the load rating, offset, and center bore.
Buy quality wheels from trusted sellers and maintain them with regular cleaning and inspection.
Whether you’re replacing damaged wheels or looking for an upgrade, the right 4×108 wheels can improve your car’s handling, looks, and even fuel economy.
Take your time, do your research, and enjoy the benefits of wheels that perfectly match your vehicle.
Frequently Asked Questions
Can I use 4×108 Wheels on a Car with a 4×100 Bolt Pattern?
No, these patterns aren’t interchangeable.
The 8mm difference prevents proper alignment, creating a safety hazard.
Adapters exist but add complexity and potential reliability issues.
How Much do Quality 4×108 Alloy Wheels Typically Cost?
Quality 4×108 alloy wheels usually range from $120 to $300 per wheel, depending on size, design, and brand.
Complete sets often include discounts.
Will Changing to Wider 4×108 Wheels Affect My Car’s Fuel Economy?
Wider wheels with larger tires can slightly reduce fuel economy due to increased rolling resistance and weight.
The impact is typically 1-3% in everyday driving.
